Features
NO PREHEAT MODE
Take preheating off your plate with No Preheat Mode. Simply place your food in the oven and start baking. The oven will adjust the cook time for frozen pizzas and more.
SPEEDHEAT™ BURNER
Generate the high heat needed for rapid boiling, searing and frying with multiple Power™ burners that offer up to 15,000 BTUs.
BAKE
Spend less time monitoring with a built-in temperature sensor to help Bake evenly. This sensor manages oven temperature for delicious results every time.
BROIL
Redefine mealtime with Broil to make crispy-melty nachos, juicy-seared meat, toasty grilled cheese and more.
SMART FEATURE UPDATES
Stay on top of the latest cooking features and unlock new ones over time. Explore more ways to cook with updates through the Whirlpool app. *Appliance must be connected. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.ca/connect.
Additional Features
SLOW COOK
Heat up all day dishes with Slow Cook. Our high speed fan optimizes air flow to maintain a low, even temperature for longer cook times to thoroughly heat up your food. Tackle your to-do list while soups, pastas and roasts come to temp without the worry.
HIGH SPEED PREHEAT
Cook for a crowd and fit large dishes like a full-sized 20lb turkey with High Speed Preheat. Our specially designed oven preheats in under 8 minutes* with our fastest preheat available. Get food on the table with less waiting and more enjoying. *Using rapid preheat to 350 degrees when cooktop is not in use.
STEAM CLEAN
Use the Steam Clean setting to quickly and easily loosen light messes inside the oven without harsh chemicals or cleaners—just add water, run the cycle and wipe away.
KEEP WARM SETTING.
Use the Keep Warm setting in the oven to help your dishes stay warm until your family is ready to dig in.
SMART RANGE
When you’re busy elsewhere, use your smartphone to get dinner started by remotely preheating the oven. Or, when your hands are full, use your compatible voice-enabled device to adjust the cook time or temperature with a voice command.* *Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.ca/connect.
SABBATH MODE
This range is designed to meet the needs of those who are kosher and Sabbath observant. When Sabbath mode is enabled, the oven is set to remain on the "Bake" setting at a constant temperature until it's manually turned off. In addition, displays, tones and all other cooking and cleaning cycles are disabled. The oven light will also not activate when the oven door is opened and heating elements will not immediately turn on or off.
Specifications
General
Fuel Type
Natural Gas
Installation Type
Slide-in
Color
White
Manufacturer Color
White
Appliance Care
Steam Clean
Cooktop
Burners/Elements
5
Burners/Elements Output
• Right Rear Burner Power: 5,000 BTU
• Right Front Burner Power: 18,000 BTU
• Center Rear Burner Power: 12,000 BTU
• Left Rear Burner Power: 10,000 BTU
• Left Front Burner Power: 15,000 BTU
• Right Front Burner Power: 18,000 BTU
• Center Rear Burner Power: 12,000 BTU
• Left Rear Burner Power: 10,000 BTU
• Left Front Burner Power: 15,000 BTU
Burners
Sealed

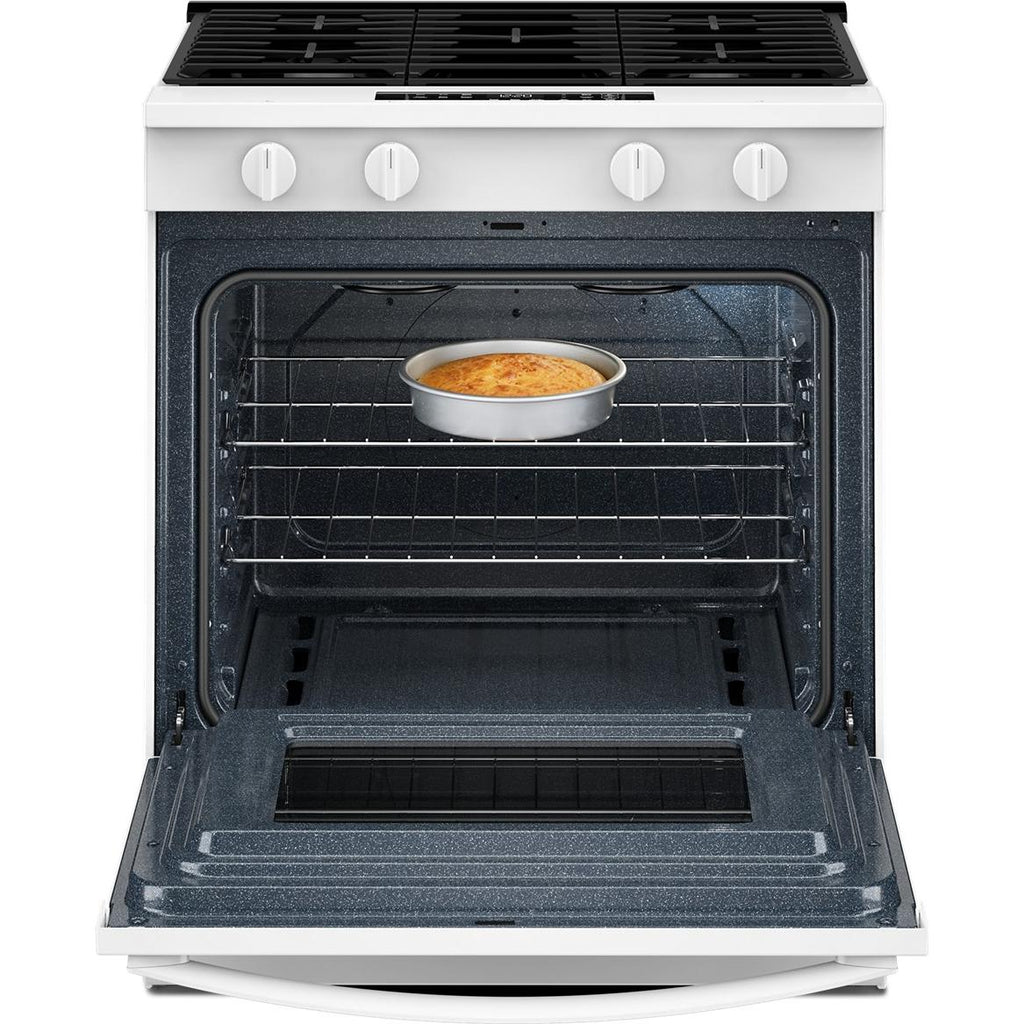

Oven
Capacity (cu. ft.)
5.0 cu. ft.
Number of Ovens
Single
Features
Technologies
• Works With: Amazon Alexa; Android; Google Assistant; Nest; iOS
• Connectivity: App; Bluetooth; Remote Access; Voice Controlled; WiFi
• SpeedHeat™ Burner
• Connectivity: App; Bluetooth; Remote Access; Voice Controlled; WiFi
• SpeedHeat™ Burner
Air Fry
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Wi-Fi
Yes
Additional Information
• Number of Rack Guides: 5
• Number of Oven Racks: 2
• Number of Oven Lights: 1
• Hidden Bake Element: Hidden
• Cooktop Surface Material: Porcelain Coated Steel

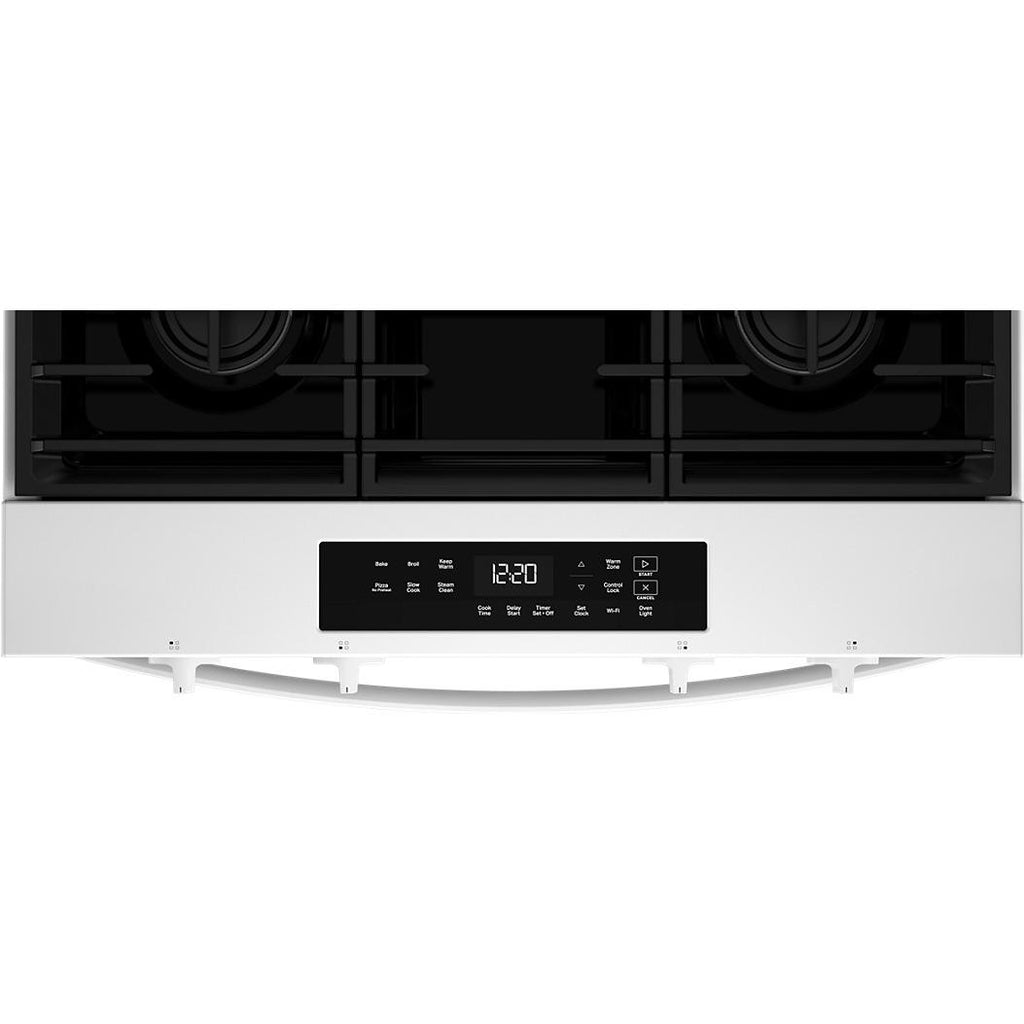

• Oven Control Location: Front Control
• Broiler Element Power: 1,300 W Electric Broil
• Bake Element Power: 16,500 BTU
• Rack Guide Type: Embossed
• Oven Rack Type: 2 Standard
• Oven Light Type: Halogen
• Ignition Type: Direct Spark Ignition
• Grate Details: Dishwasher Safe; Matte Finish; Porcelain Coated Steel Grates
• Number of Oven Racks: 2
• Number of Oven Lights: 1
• Hidden Bake Element: Hidden
• Cooktop Surface Material: Porcelain Coated Steel
• Oven Control Location: Front Control
• Broiler Element Power: 1,300 W Electric Broil
• Bake Element Power: 16,500 BTU
• Rack Guide Type: Embossed
• Oven Rack Type: 2 Standard
• Oven Light Type: Halogen
• Ignition Type: Direct Spark Ignition
• Grate Details: Dishwasher Safe; Matte Finish; Porcelain Coated Steel Grates
Drawer Features
Storage
Yes
Electrical Information
Information
• Watts: 1,400 W
• Frequency: 60 Hz
• Voltage: 120 V
• Amps: 15 A
• Frequency: 60 Hz
• Voltage: 120 V
• Amps: 15 A
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Information
Energy Star
Accessories
Optional
4396096RB, W11692811
Dimensions
Class Width
30"
Width
29.9 inch(es) / 75.95 cm
Height
36.6 inch(es) / 92.96 cm
Depth (Without Handles)
25.4 inch(es) / 64.52 cm
Weight
189 lb(s) / 85.73 kg
Additional Dimensions
• Depth Closed Excluding Handles: 27.4"
• Depth Closed Including Handles: 29.1"
• Depth With Door Open 90°: 47.7"
• Cutout Depth: 24.0"
• Cutout Height: 36.0"
• Cutout Width: 30.0"
• Maximum Height: 38.1"
• Minimum Height: 36.6"
• Oven Interior Width: 24.2"
• Oven Interior Depth: 19.0"
• Depth Closed Including Handles: 29.1"
• Depth With Door Open 90°: 47.7"
• Cutout Depth: 24.0"
• Cutout Height: 36.0"
• Cutout Width: 30.0"
• Maximum Height: 38.1"
• Minimum Height: 36.6"
• Oven Interior Width: 24.2"
• Oven Interior Depth: 19.0"
Shipping Dimensions
Width
32 inch(es) / 81.28 cm
Height
43 inch(es) / 109.22 cm
Depth
31 inch(es) / 78.74 cm
Weight
205.01 lb(s) / 92.99 kg
Warranty
Warranty
1 Year Parts and Labor
UPC
UPC#
883049951157
