Features
DOWNDRAFT VENTILATION
Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.

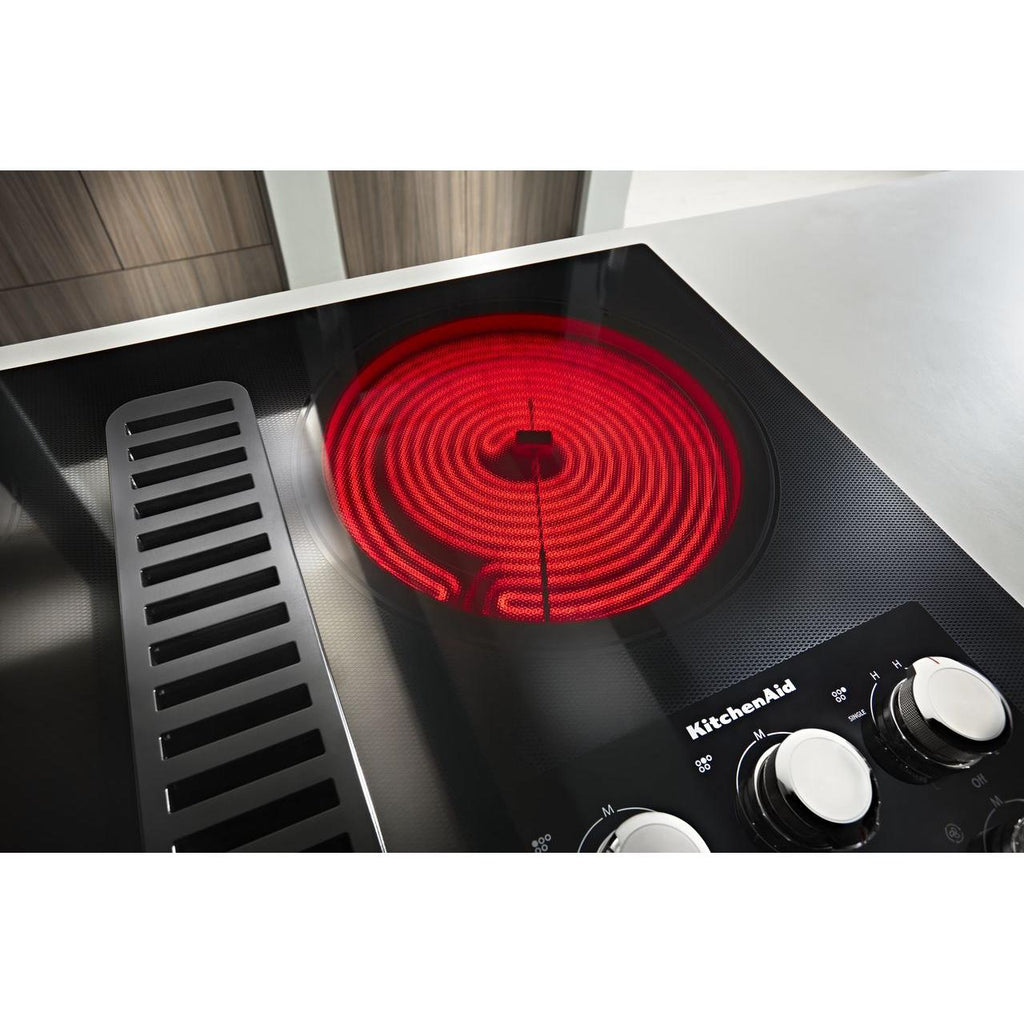

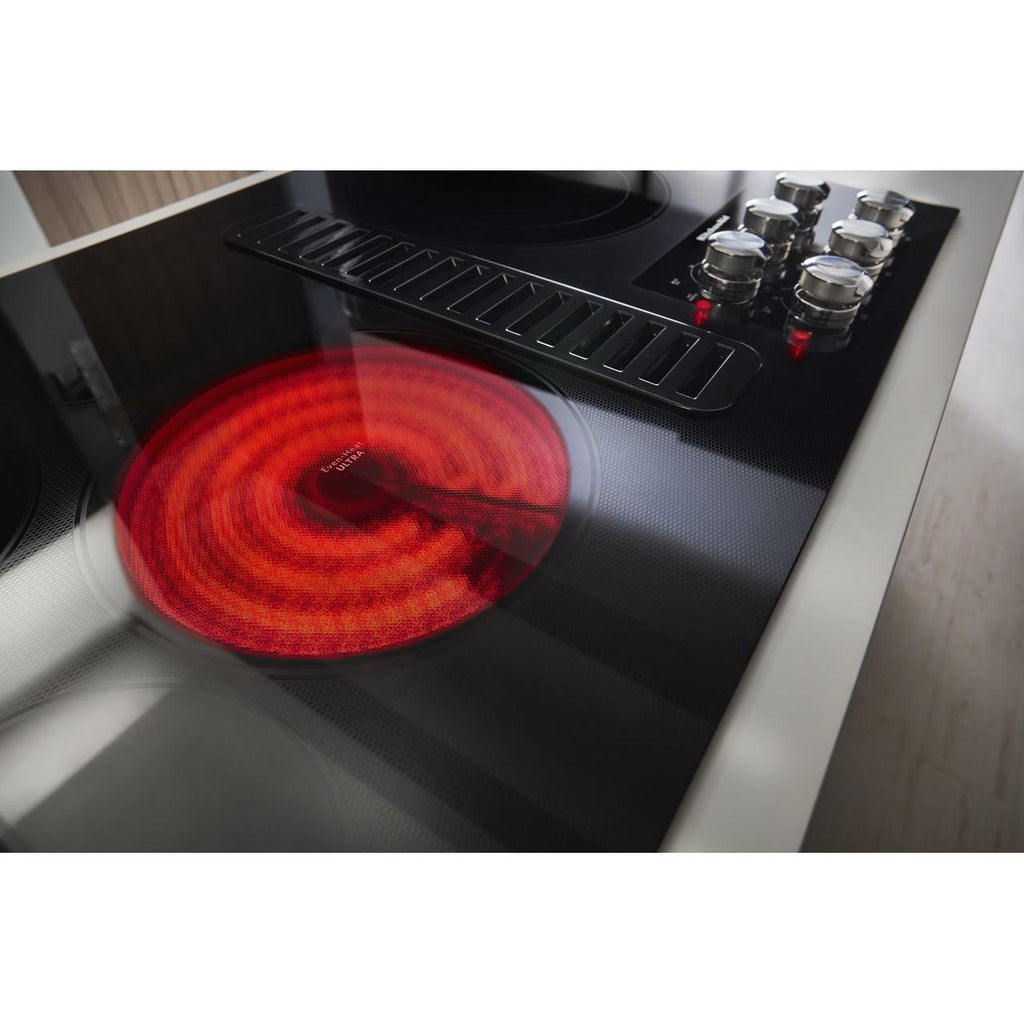

EVEN-HEAT™ ULTRA ELEMENT WITH SIMMER SETTING
Provides more versatility for high and low temperature cooking techniques. Even-Heat™ Technology maintains a constant supply of power and delivers a range of simmer settings.
6" EVEN-HEAT™ ELEMENT WITH MELT SETTING
Combines the benefits of Even-Heat™ Technology with a dedicated setting that reaches the low temperatures needed to melt chocolate or butter without scorching.
3-SPEED FAN CONTROL
Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.
12"/9" DOUBLE-RING ELEMENT
Lets you use different cookware sizes at one location. When using large, 12-inch cookware the entire element surface is used. For smaller cookware, you’ll use only the 9-inch inner element.
CONVERTIBLE TO DUCT-FREE VENTILATION
Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.
HOT-SURFACE INDICATOR
Provides a clear indication that lets you know if any cooking surface is on or still hot.
COOKSHIELD FINISH
Helps protect your cooktop from spills and stains that may occur with high-temperature cooking. The permanent finish makes it easy to wipe the cooktop clean without harsh chemicals so it looks clean and bright longer.
Specifications
General
Color
Black
Manufacturer Color
Black
Fuel Type
Electric
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Center Front Element: 3,200 W
• Center Rear Element: 1,200 W
• Left Front Element: 1,300 W
• Left Rear Element: 1,800 W
• Right Rear Element: 3,000 W
• Center Rear Element: 1,200 W
• Left Front Element: 1,300 W
• Left Rear Element: 1,800 W
• Right Rear Element: 3,000 W
Burner/Element Size
• Center Front Element: 10"
• Center Rear Element: 6"
• Left Front Element: 6"
• Left Rear Element: 8"
• Right Rear Element: 12"/9"
• Center Rear Element: 6"
• Left Front Element: 6"
• Left Rear Element: 8"
• Right Rear Element: 12"/9"
Elements
Smoothtop
Surface Features
• CookShield Finish for Glass Surface
• Stainless Steel Knobs
• Pure Color Ceramic-Glass Surface
• Stainless Steel Knobs
• Pure Color Ceramic-Glass Surface
Features
Technologies
• Even-Heat™ Ultra Element
• Even-Heat™ Element
• Even-Heat™ Element
Downdraft Ventilation
Yes
Additional Information
• 300 CFM Exhaust Rating
• 3-Speed Fan Control
• 12"/9" Double-Ring Element
• Convertible to Duct-Free Ventilation
• Power-On Indicator Light
• Hot-Surface Indicator
• 3-Speed Fan Control
• 12"/9" Double-Ring Element
• Convertible to Duct-Free Ventilation
• Power-On Indicator Light
• Hot-Surface Indicator
Electrical Information
Information
• 120 V /240 V
• 60 Hz
• 40 A
• 60 Hz
• 40 A
Dimensions
Class Width
36"
Width
36.31 inch(es) / 92.23 cm
Height
3.63 inch(es) / 9.21 cm
Depth
22.06 inch(es) / 56.04 cm
Weight
56.99 lb(s) / 25.85 kg
Shipping Dimensions
Width
41.5 inch(es) / 105.41 cm
Height
23.81 inch(es) / 60.48 cm
Depth
26.44 inch(es) / 67.15 cm
Weight
70 lb(s) / 31.75 kg
Warranty
Warranty
1 Year Parts and Labor
UPC
UPC#
883049415949
