Features
ROCKER CONTROL
Streamlined, deluxe 2-speed rocker control operates light and fan speeds.
USE THE OPTIONAL RANGE HOOD MOUNTING BRACKETS

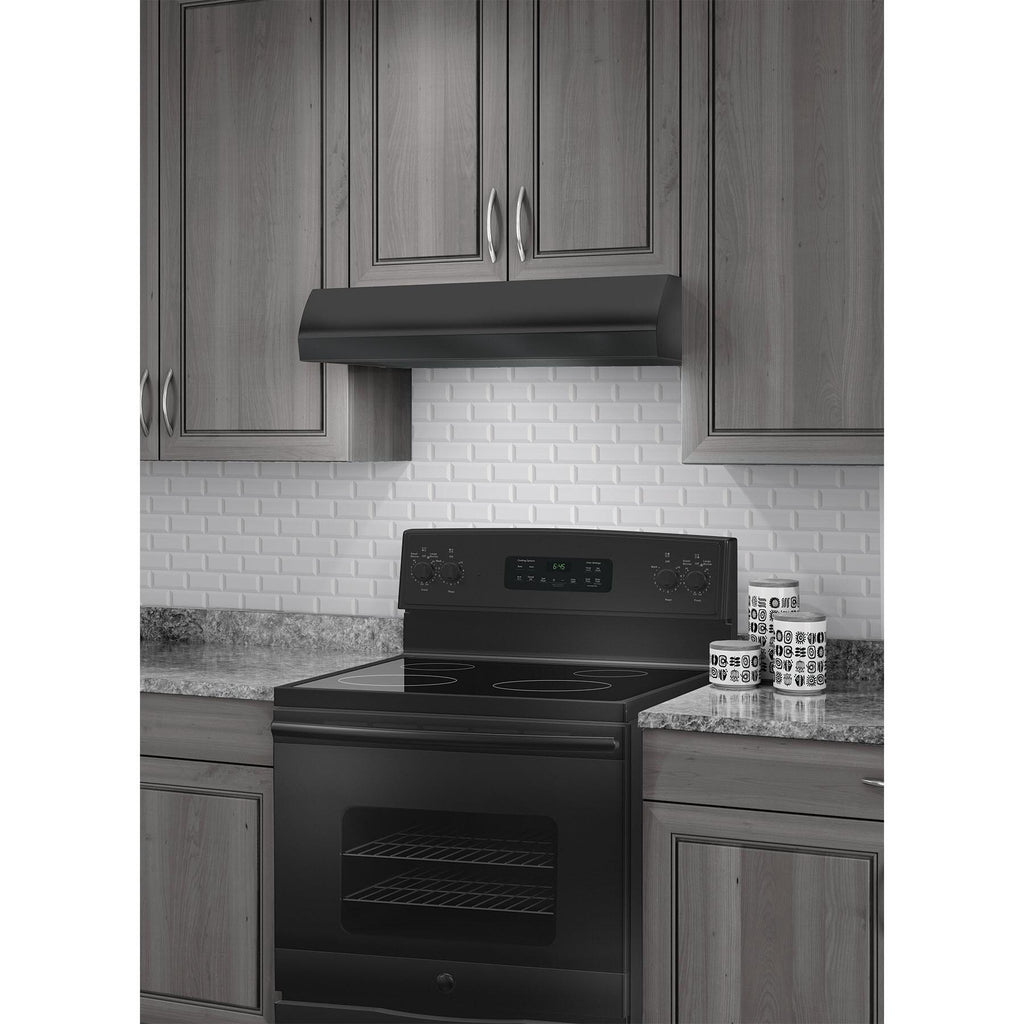

For those kitchens that do not have a cabinet above the range, Broan-NuTone offers the Model 35 Range Hood Mounting Brackets. They allow you to still hang your Broan-NuTone range hood by mounting these brackets to the wall. For best capture of cooking impurities, your range hood should be mounted 18-24 inches above the cooking surface. Make sure the hood (and brackets) are level.
Specifications
General
Series Name
BXT1
Blower Included
Yes
Airflow
270 CFM
Style
Standard
Color
Black
Manufacturer Color
Black
Installation
Under-Cabinet
Features
Dishwasher-Proof Filters
Yes
Ducting Information
7" Round
Speeds
2-speed rocker switch
Additional Information

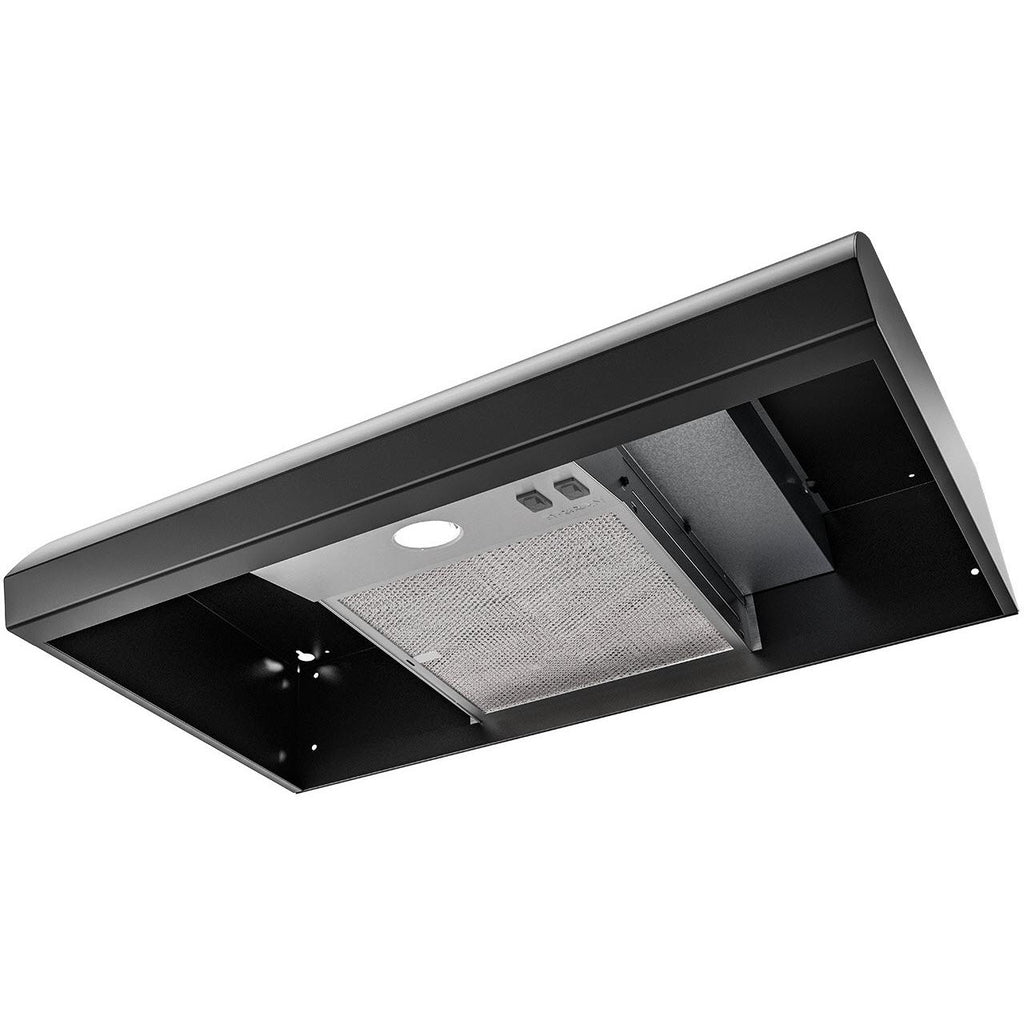

• One-level lighting system includes a bright LED bulb to illuminate the cooking surface (bulb included)
• The 4-way convertibility of this hood provides flexible installation for use in either ducted or non-ducted applications. Discrete recirculation louvers are hidden at the top of the hood, which helps to provide a smooth, clean appearance
• Aluminum mesh filter
• ADA compliant
• The 4-way convertibility of this hood provides flexible installation for use in either ducted or non-ducted applications. Discrete recirculation louvers are hidden at the top of the hood, which helps to provide a smooth, clean appearance
• Aluminum mesh filter
• ADA compliant
Electrical Information
Information
120 V
Certifications and Approvals
Hvi Certified
Yes
Accessories
Optional
• 7 in. round BP87Q damper
• Charcoal filter HPFX1
• Power Cord Kit SHCK44
• Charcoal filter HPFX1
• Power Cord Kit SHCK44
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
6 inch(es) / 15.24 cm
Depth
15 inch(es) / 38.1 cm
Warranty
Warranty
1 Year
