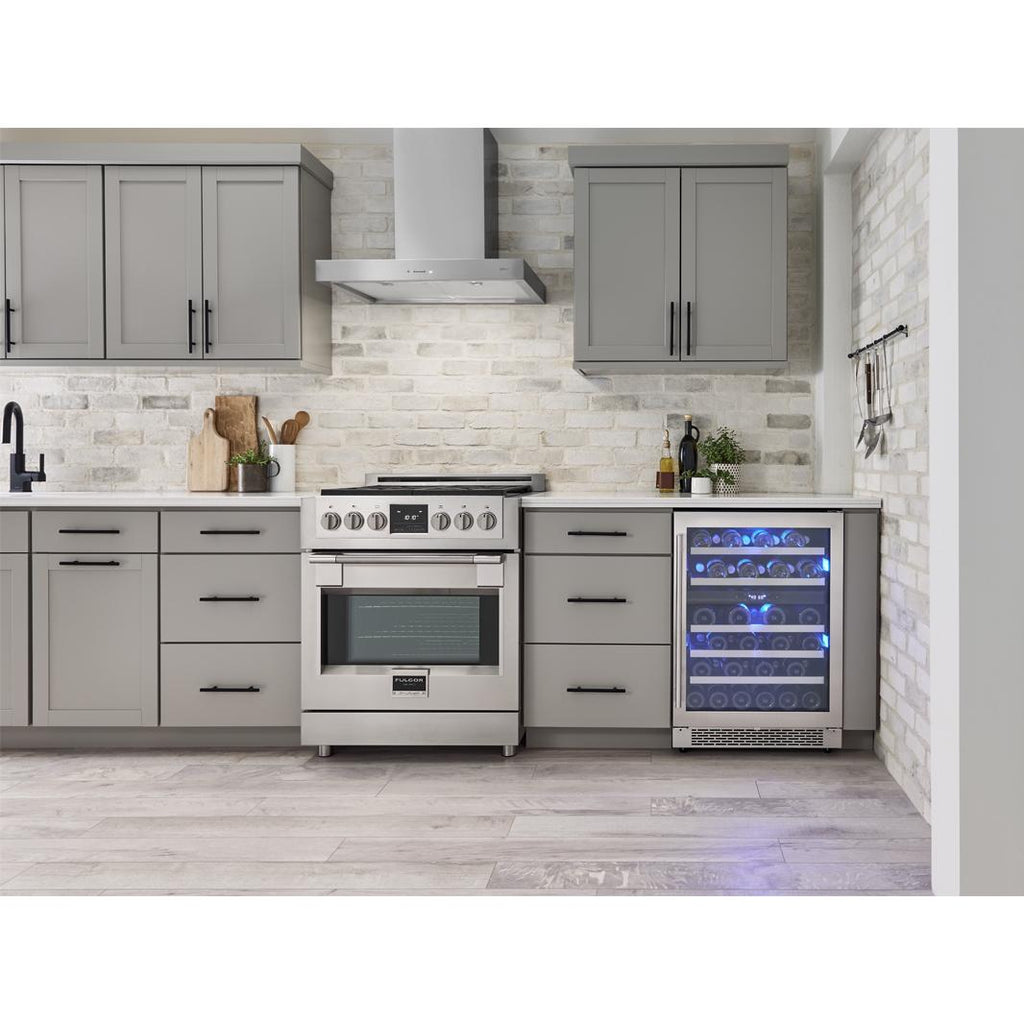

Zephyr 36-inch Roma Wall Hood ZRO-M90FS IMAGE 1

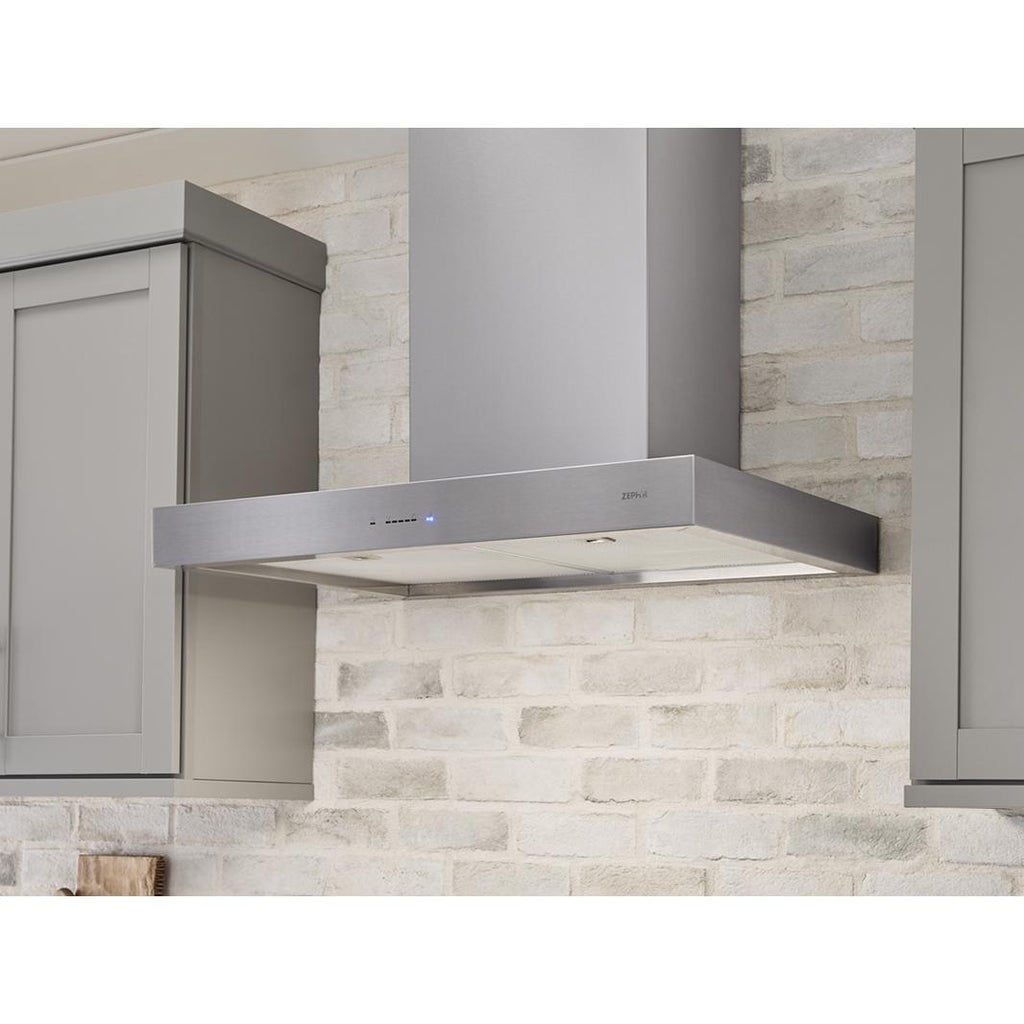

Zephyr 36-inch Roma Wall Hood ZRO-M90FS IMAGE 2

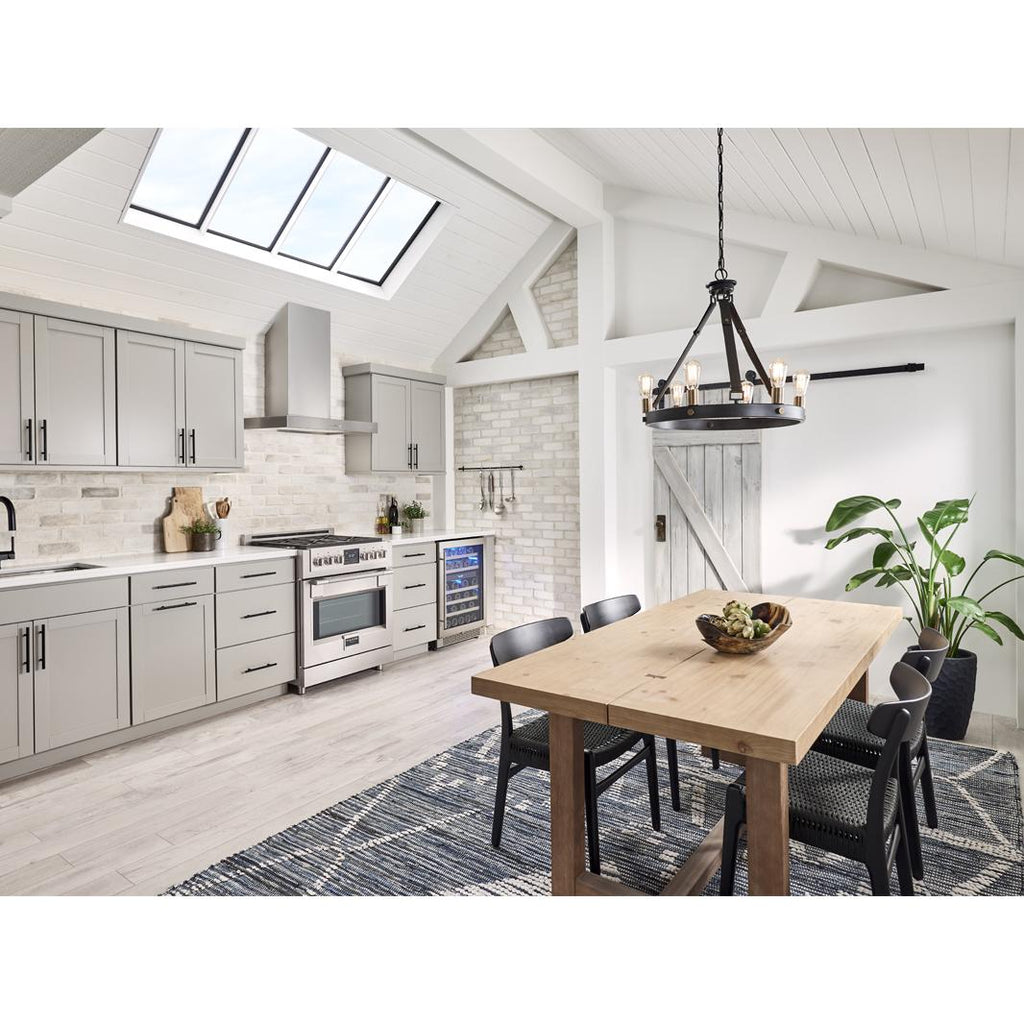

Zephyr 36-inch Roma Wall Hood ZRO-M90FS IMAGE 3

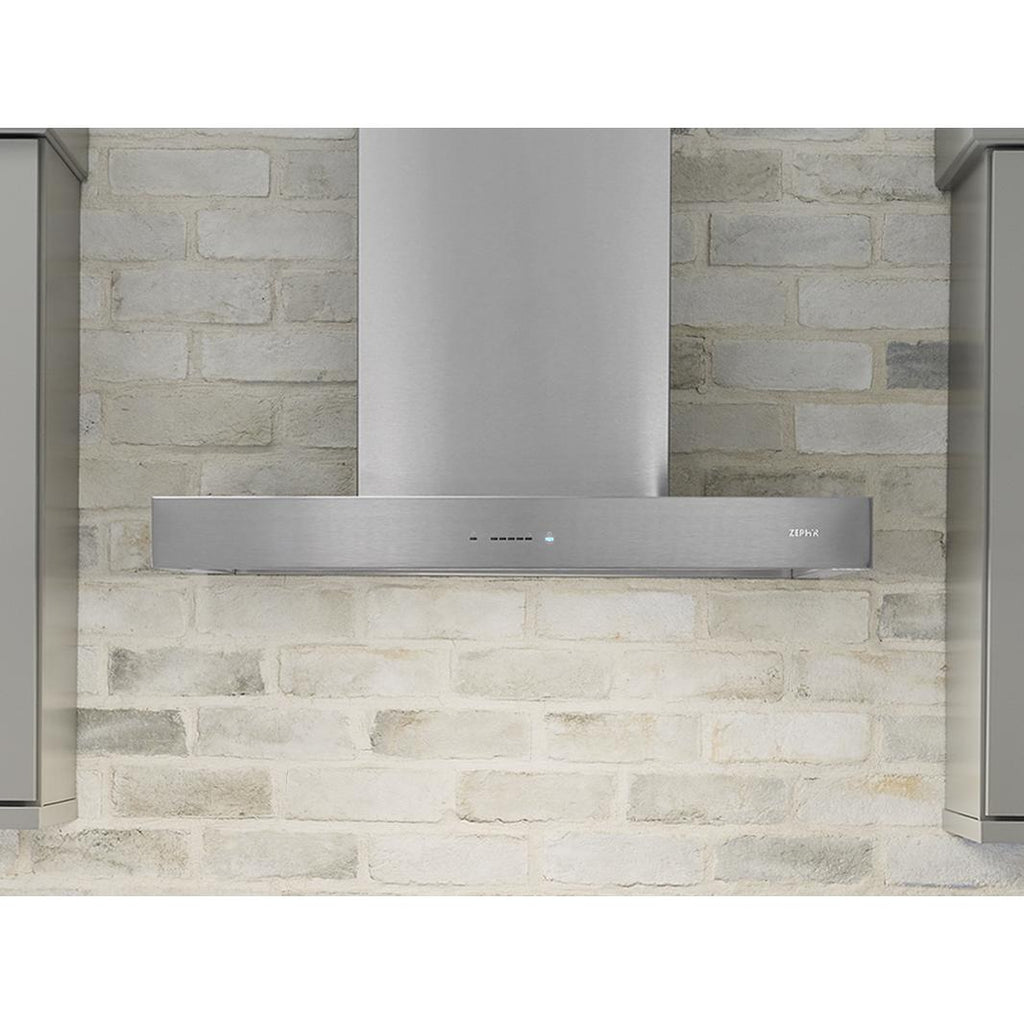

Zephyr 36-inch Roma Wall Hood ZRO-M90FS IMAGE 4

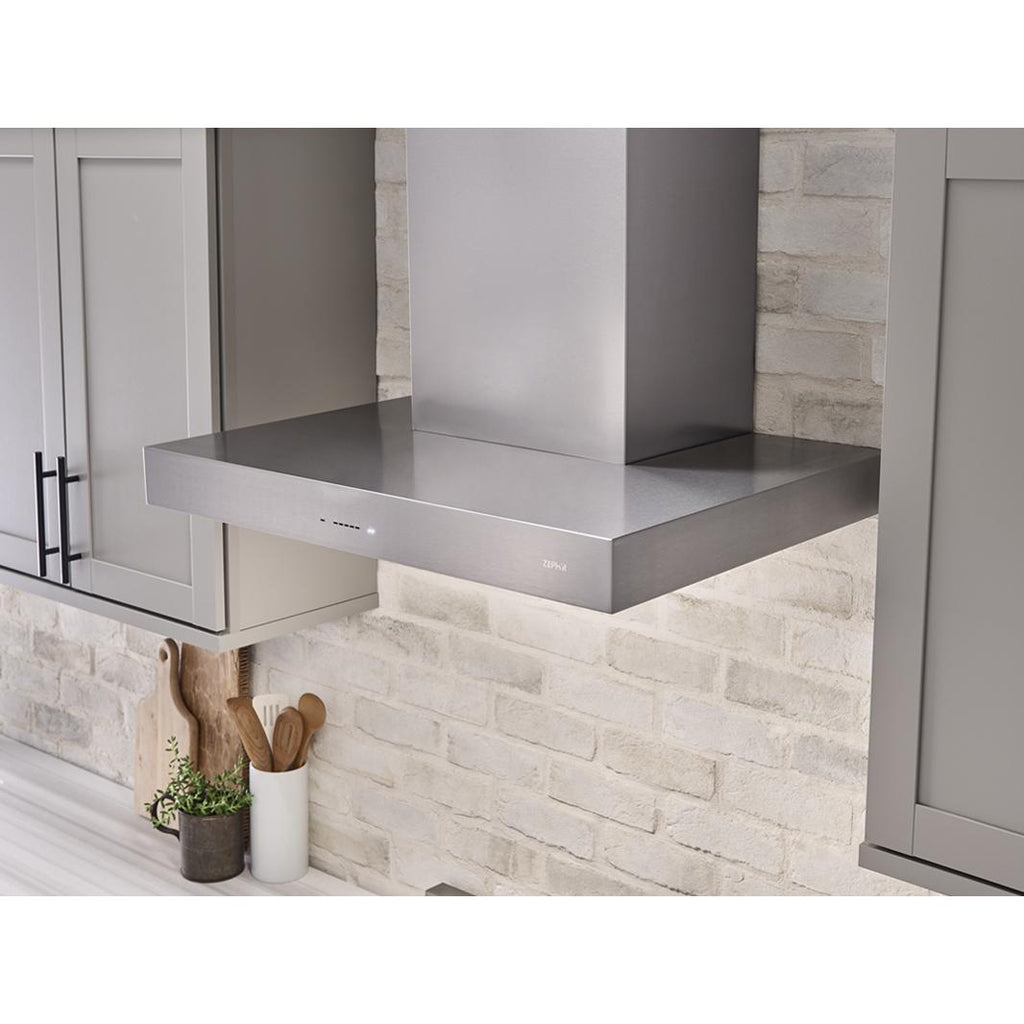

Zephyr 36-inch Roma Wall Hood ZRO-M90FS IMAGE 5
Roll over image to zoom in Click on image to zoom
Zephyr 36-inch Roma Wall Hood ZRO-M90FS IMAGE 1
Zephyr 36-inch Roma Wall Hood ZRO-M90FS IMAGE 2
Zephyr 36-inch Roma Wall Hood ZRO-M90FS IMAGE 3
Zephyr 36-inch Roma Wall Hood ZRO-M90FS IMAGE 4
Zephyr 36-inch Roma Wall Hood ZRO-M90FS IMAGE 5

Zephyr 36-inch Roma Wall Hood ZRO-M90FS

ZephyrSKU: ZROM90FS
Roma’s sleek, low-profile 3" design is ideal for the design-savvy renovator, the high-rise developer who strives for quality, or the... Roma’s sleek, low-profile 3" design is ideal for the design-savvy renovator, the high-rise developer who strives for quality, or the builder who buys in mass but refuses to settle for mediocrity. Roma’s contemporary design is complemented with ICON Touch® controls and a 600-CFM blower that operates at an ultra-quiet single sone. Includes LumiLight LED lighting, Airflow Control Technology (ACT™), and an optional ADA-compliant remote control. View more
Price:
$1,979.00
Features Specifications Documents
Features
ACT™ CONTROL TECHNOLOGY
Airflow Control Technology (ACT) allows the installer to set the maximum fan CFM to align with local codes and regulations.
ACT™ CONTROL TECHNOLOGY
ALUMINUM MESH FILTERS
The aluminum mesh filters installed by the factory are intended to filter out residue and grease from cooking. They need not be replaced on a regular basis but are required to be kept clean.
ICON TOUCH™ CONTROLS
Seamlessly integrates into the hood’s stainless steel canopy and allows users to easily control the 5-speeds, delay-off function, auto reminders and Airflow Control Technology.
Specifications
General
Series Name
• Roma Wall
• Core Collection
Blower Included
Yes
Airflow
600 CFM
Style
Chimney
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Wall Mount
Features
Technologies
• LumiLight LED Lighting
• ICON Touch® Controls
• Airflow Control Technology™ (ACT™)
Ducting Information
• Vertical Ducting
• 6" Round
Speeds
• Speed Levels: 5
• Blower CFM (Min. - Max.): 200 - 600
• Sones (Min. - Max.): 1 - 6
• ACT 390 CFM (Min. - Max.): 200 - 390
• ACT 290 CFM (Min. - Max.): 200 - 290
Additional Information
• Dual-Level Lighting
• Low-Profile Body
• Auto Delay-Off
• Filters: Aluminum Mesh x2
• Recirculating Option
• Extension Duct Cover Option
• ADA Compliant with remote accessory (sold separately)
Electrical Information
Information
120V, 60Hz at Max. 4A
Certifications and Approvals
Information
cULus
Accessories
Optional
• Wireless Remote Control Kit: RC-0002
• Recirculating Kit: ZRC-01RO
• Extension Duct Cover: Z1C-00RO
• Make-Up Air Kit: MUA006A
Dimensions
Class Width
36"
Width
35.44 inch(es) / 90.01 cm
Height
26.5 inch(es) / 67.31 cm
Depth
26.06 inch(es) / 66.2 cm
Additional Dimensions
Mounting Height Range: 26" - 34"
Warranty
Warranty
• 1-Year on labor
• 3-Year on parts only
UPC
UPC#
646328010842
Documents
Installation Guide
Owners Manual
Product Specifications
Dimensions Sheet
