Features
AIRFLOW CONTROL TECHNOLOGY
Airflow Control Technology™ (ACT™) is an exclusive feature built into specific Zephyr hoods which can limit the maximum blower CFM to meet local code requirements.
POWERWAVE™ BLOWER
Zephyr PowerWave™ is designed to deliver best-in-class performance with unparalleled quiet operation, it is a breakthrough in kitchen technology. The first range hood blower with three-phase AC power, PowerWave™ has unique aerodynamic blades to help move up to 750 CFM of air while minimizing noise and improving efficiency. PowerWave™ is also versatile by allowing you to combine two blowers together to achieve 1,300 CFM, making it the most powerful dual-internal blower system on the market. It’s a leap forward in range hood performance that can only have been imagined by Zephyr.
Specifications
General
Series Name
Pro Titan
Blower Included
Yes
Airflow
750 CFM

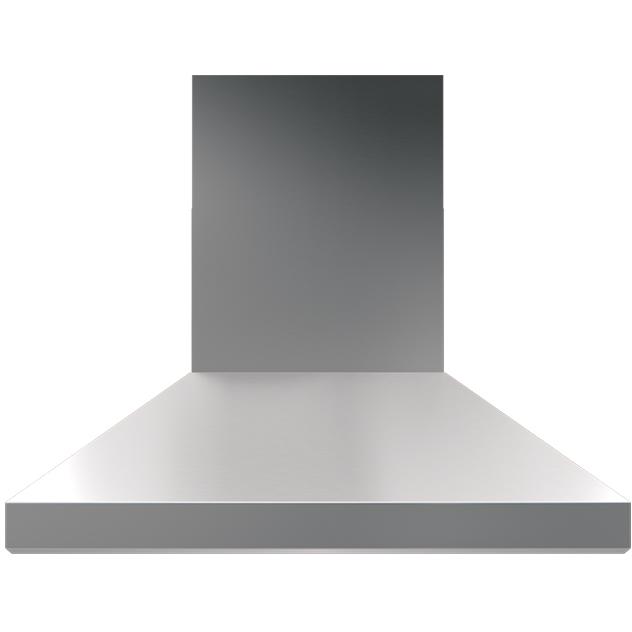

Style
Chimney
Color
Stainless Steel
Installation
Wall Mount
Features
Technologies
• Airflow Control Technology™ (ACT™)
• PowerWave™ Technology
• PowerWave™ Technology
Ducting Information
• Vertical Single Internal Blower: 8" Round
• Horizontal Single Internal Blower: 8" Round
• Vertical Dual Internal Blower: 10" Round
• Horizontal Dual Internal Blower: 10" Round
• Horizontal Single Internal Blower: 8" Round
• Vertical Dual Internal Blower: 10" Round
• Horizontal Dual Internal Blower: 10" Round
Speeds
• Speed Levels : 6**
• Blower CFM (Min. - Max.): 200 - 750
• ACT 590 CFM (Min. - Max.)*: 200-590
• ACT 390 CFM (Min. - Max.)*: 200-390
• ACT 290 CFM (Min. - Max.)*: 200-290
• Sones (Min. - Max.): 0.5 - 7
• *ACT™ only available with a single internal blower
• **When ACT™ is enabled the number of fan speeds will be reduced to maximum 3 speeds
• Blower CFM (Min. - Max.): 200 - 750
• ACT 590 CFM (Min. - Max.)*: 200-590
• ACT 390 CFM (Min. - Max.)*: 200-390
• ACT 290 CFM (Min. - Max.)*: 200-290
• Sones (Min. - Max.): 0.5 - 7
• *ACT™ only available with a single internal blower
• **When ACT™ is enabled the number of fan speeds will be reduced to maximum 3 speeds
Additional Information
• Electronic LCD
• Auto Delay-Off
• CleanAir Function
• Directional Lighting: LumiLight LED, 6W x2
• Dual-Level Lighting
• Filters: Pro Baffle x2
• Grease Collection Tray
• Duct Cover Extension Option
• Auto Delay-Off
• CleanAir Function
• Directional Lighting: LumiLight LED, 6W x2
• Dual-Level Lighting
• Filters: Pro Baffle x2
• Grease Collection Tray
• Duct Cover Extension Option
Electrical Information
Information
• AC POWER (Single Blower): 120V, 60Hz at Max. 5A
• AC POWER (Dual Blower): 120V, 60Hz at Max. 8A
• AC POWER (Dual Blower): 120V, 60Hz at Max. 8A
Certifications and Approvals
Information
ADA Compliant with remote accessory
Accessories
Optional
• Wireless Remote Control: 14000005
• Dual Internal Blower: PBD-1300B
• Duct Cover Extension: Z1C-0076
• Stainless Steel Telescopic Backsplash: AK1716/AK1712
• Make-Up Air Kit (Single Blower): MUA008A
• Make-Up Air Kit (Dual Blower): MUA010A
• Dual Internal Blower: PBD-1300B
• Duct Cover Extension: Z1C-0076
• Stainless Steel Telescopic Backsplash: AK1716/AK1712
• Make-Up Air Kit (Single Blower): MUA008A
• Make-Up Air Kit (Dual Blower): MUA010A
Dimensions
Class Width
42"
Width
42 inch(es) / 106.68 cm
Height
30 inch(es) / 76.2 cm
Depth
24 inch(es) / 60.96 cm
Additional Dimensions
Mounting Height Range: 24" - 36"
Warranty
Warranty
• 3 Years Limited on Parts
• 1 Year Limited Labor
• 1 Year Limited Labor
