Applicable Rebate
THERMADOR "ONE -TWO -FREE , YOUR GIFTS WITH PURCHASE"
Receive a FREE EMERALD DISHWASHER and choice of one (1) bonus gift with the purchase of complete qualifying kitchen suites. - Offer valid on purchases made between January 1, 2024 and June 30, 2024
See all qualifying products
Features
COOKSMART®
Never guess a cooking time or temperature again. With 9 pre-programmed modes and auto-shutoff, you’ll get the perfect results every time you cook. Cooking modes include: pasta, potatoes, rice, dumplings, vegetables, sausages, milk, rice pudding and deep frying. *THERMADOR EXCLUSIVE
POWERBOOST®
Induction PowerBoost® feature heats cookware faster than any other type of cooking technology.
HEATSHIFT™
Thermador HeatShift allows you to change the power level by simply moving the pot across the cooking zone. Perfect for recipes that require multiple heat levels, such as moving from a sauté to a simmer.
MOVEMODE™
Finished cooking the main course and ready to prepare the sauce? MoveMode allows easy transfer of settings without having to reset power levels when moving a pot across the cooktop.
Specifications
General
Series Name
• Masterpiece®
• Liberty®
• Liberty®
Color
Silver
Manufacturer Color
Silver Mirrored Finish with Stainless Steel Frame
Fuel Type
Electric Induction
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Center Left: 3,300W
• Center Right: 3,300W
• Front Center: 3,300W
• Center Right: 3,300W
• Front Center: 3,300W
Elements
Smoothtop
Surface Features
Extra-large cooking surface
Features
Technologies
• HeatShift® feature has three preset heat zones that allows you to change the power level by simply moving the pot across the cooking zone
• MoveMode® feature allows easy transfer of settings without having to reset power levels when moving a pot across the cooktop
• CookSmart® with 5 pre-set temperature levels to effortlessly pan fry a wide range of foods
• PowerBoost® setting

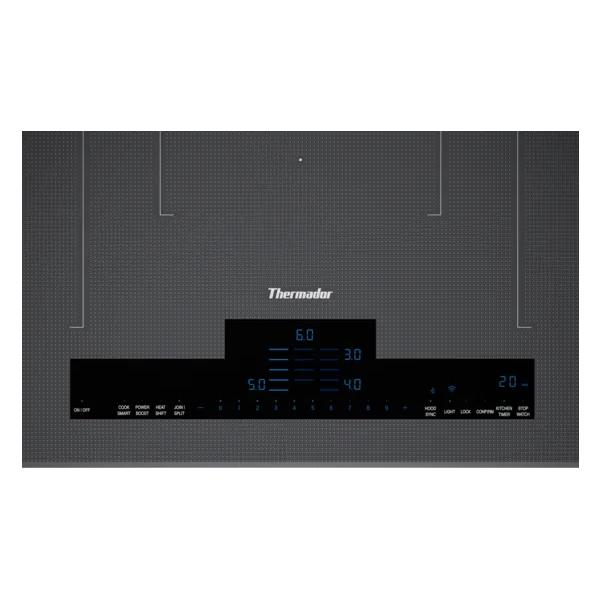

• Type of control: Direct Select 2.0
• FlexInduction
• FryingSensor Plus
• MoveMode® feature allows easy transfer of settings without having to reset power levels when moving a pot across the cooktop
• CookSmart® with 5 pre-set temperature levels to effortlessly pan fry a wide range of foods
• PowerBoost® setting
• Type of control: Direct Select 2.0
• FlexInduction
• FryingSensor Plus
Wi-Fi
Yes
Control Lock
Yes
Additional Information
• Stainless Steel Convenience frame
• Left and right Liberty® zones can be used as 2 separate cooking zones or combined into one large zone
• Separate Residual heat indicator
• Automatic pan recognition
• Childproof lock
• Key Lock
• Power management function
• Safety time-switch-off
• Control panel pause
• 2 stage residual heat indicators
• Left and right Liberty® zones can be used as 2 separate cooking zones or combined into one large zone
• Separate Residual heat indicator
• Automatic pan recognition
• Childproof lock
• Key Lock
• Power management function
• Safety time-switch-off
• Control panel pause
• 2 stage residual heat indicators
Electrical Information
Information
• Watts: 9360
• Fuse protection: 50
• Volts: 208-240
• Frequency: 60
• Energy consumption of hob: 185.0 Wh/kg
• Energy consumption of heating elements: 185.0 Wh/kg
• Fuse protection: 50
• Volts: 208-240
• Frequency: 60
• Energy consumption of hob: 185.0 Wh/kg
• Energy consumption of heating elements: 185.0 Wh/kg
Certifications and Approvals
Information
Dekra Mark C+US, FCC
Accessories
Optional
• Sensor Frying Pan (Small): 00570364
• Frying Pan: 11025728 CHEFSPAN08
• Roasting Pan: 12024196 TROASTERT
• Teppanyaki - 10" x 13": 12024194 TEPPAN1013
• Teppanyaki - 10" x 16": 12024195 TEPPAN1016
• Frying Pan: 11025728 CHEFSPAN08
• Roasting Pan: 12024196 TROASTERT
• Teppanyaki - 10" x 13": 12024194 TEPPAN1013
• Teppanyaki - 10" x 16": 12024195 TEPPAN1016
Dimensions
Class Width
36"
Width
37 inch(es) / 93.98 cm
Height
7.25 inch(es) / 18.42 cm
Depth
21.25 inch(es) / 53.98 cm
Weight
53.99 lb(s) / 24.49 kg
Additional Dimensions
• Minimum distance from counter front: 2 1/2''
• Minimum distance from rear wall: 2 3/8''
• Power Cord Length: 37''
• Required cutout size (HxWxD): 3 7/8'' x 34 7/8'' x 20''
• Minimum distance from rear wall: 2 3/8''
• Power Cord Length: 37''
• Required cutout size (HxWxD): 3 7/8'' x 34 7/8'' x 20''
Shipping Dimensions
Width
42.13 inch(es) / 107 cm
Height
7.06 inch(es) / 17.94 cm
Depth
26.75 inch(es) / 67.95 cm
Weight
63.01 lb(s) / 28.58 kg
Warranty
Warranty
2-Year parts and labor
