Features

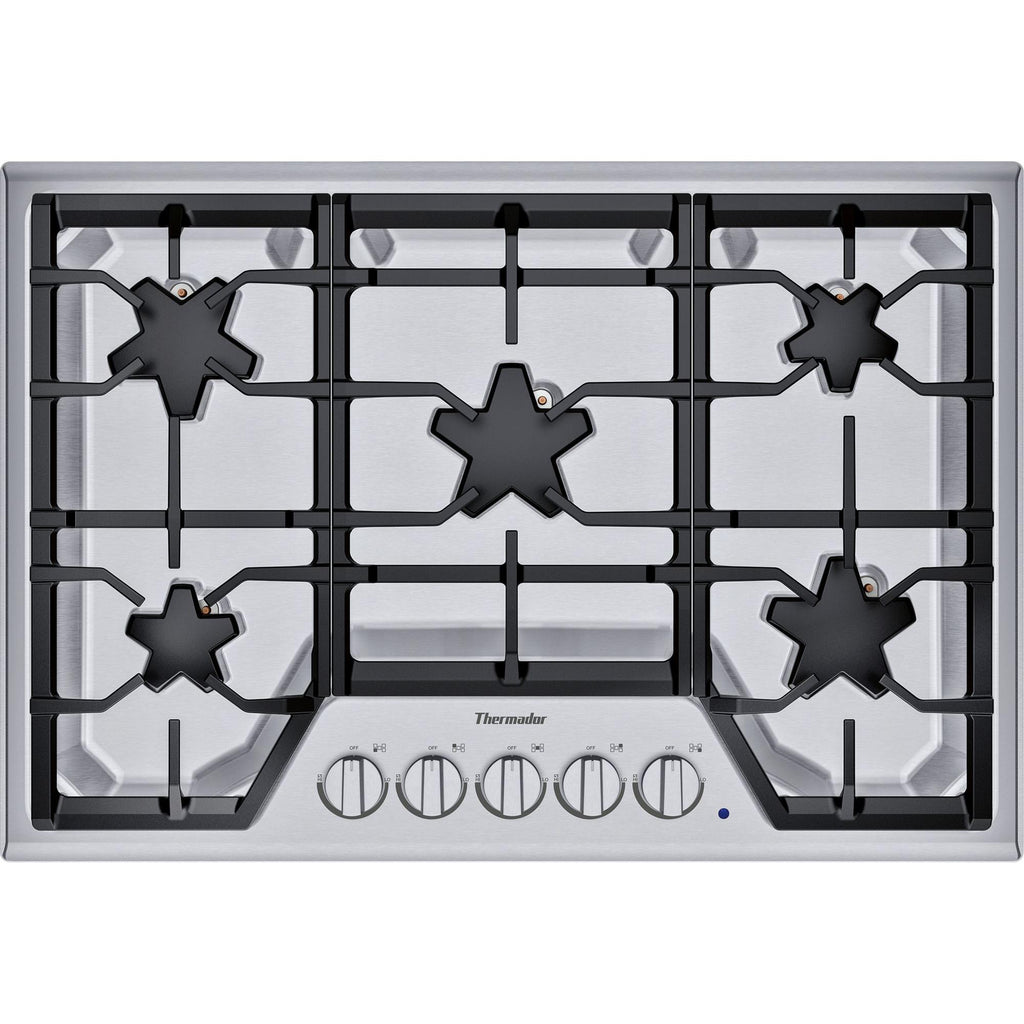

PATENTED STAR BURNER
Exclusive, sealed 3-in-1 Star® Burner’s unique five-point design offers a reduced cold spot, faster time to boil and the ExtraLow feature. The coverage area allows for more ports and more flame distribution than a round burner. THERMADOR EXCLUSIVE
Specifications
General
Series Name
Masterpiece® Star® Burner
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Natural Gas
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Total BTU Load (NG / LP): 52,000 / 45,200 BTU
• Power of Front Left Burner (NG / LP): 8,000 / 6,000 BTU
• Power of Back Left Burner (NG / LP): 10,000 / 9,100 BTU
• Power of Center Burner (NG / LP): 16,000 / 15,000 BTU
• Power of Back Right Burner (NG / LP): 8,000 / 6,000 BTU
• Power of Front Right Burner (NG / LP): 10,000 / 9,100 BTU
• Power of Front Left Burner (NG / LP): 8,000 / 6,000 BTU
• Power of Back Left Burner (NG / LP): 10,000 / 9,100 BTU
• Power of Center Burner (NG / LP): 16,000 / 15,000 BTU
• Power of Back Right Burner (NG / LP): 8,000 / 6,000 BTU
• Power of Front Right Burner (NG / LP): 10,000 / 9,100 BTU
Burners
Sealed
Features
Technologies
Patented Star® Burners
Additional Information
• Cast Iron Grates
• Metal Knobs
• Electronic Re-Ignition
• Metal Knobs
• Electronic Re-Ignition
Electrical Information
Information
• 1,800 W
• 120 V
• 60 Hz
• 15 A
• 120 V
• 60 Hz
• 15 A
Certifications and Approvals
ADA Compliant
Yes
Accessories
Optional
• SWOKRINGW Wok Ring
• SGRIDDLEW Griddle
• SLPKITW LP Conversion Kit
• SGRIDDLEW Griddle
• SLPKITW LP Conversion Kit
Dimensions
Class Width
30"
Width
31 inch(es) / 78.74 cm
Height
5.37 inch(es) / 13.65 cm
Depth
21.25 inch(es) / 53.98 cm
Weight
36 lb(s) / 16.33 kg
Additional Dimensions
• Required Cutout Size (HxWxD): 3 13/16" x 28 15/16" x 19 1/8"
• Minimum Distance From Counter Front: 1 1/2"
• Minimum Distance From Rear Wall: 3"
• Minimum Distance From Counter Front: 1 1/2"
• Minimum Distance From Rear Wall: 3"
Warranty
Warranty
Limited 2 Years Parts and Labor
UPC
UPC#
825225933069
