Features

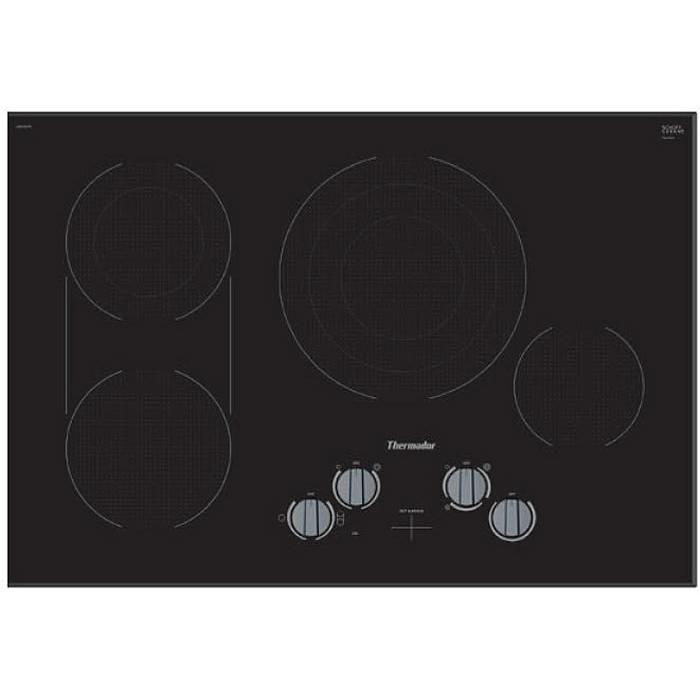

TRIPLE ELEMENT
Heat different sized cookware efficiently on the triple element.
Specifications
General
Series Name
Masterpiece®
Color
Black
Manufacturer Color
Black
Fuel Type
Electric
Type
Built-In
Cooktop
Burners/Elements
4
Power Output
• Front Left Heating Element: 1,700 W
• Back Left Heating Element: 1,700 / 1,700 W
• Bridge Element: 4,000 W
• Center Heating Element: 3,080 / 2,200 / 1,050 W
• Front Right Heating Element: 1,200 W
• Back Left Heating Element: 1,700 / 1,700 W
• Bridge Element: 4,000 W
• Center Heating Element: 3,080 / 2,200 / 1,050 W
• Front Right Heating Element: 1,200 W
Burner/Element Size
• Front Left Heating Element: 7"
• Back Left Heating Element: 7"/ 5"
• Center Heating Element: 11"/ 8"/ 6"
• Front Right Heating Element: 6"
• Back Left Heating Element: 7"/ 5"
• Center Heating Element: 11"/ 8"/ 6"
• Front Right Heating Element: 6"
Elements
Smoothtop
Surface Features
Heavy-duty stainless steel metal knobs provide precise control
Features
Wi-Fi
No
Downdraft Ventilation
No
Additional Information
• Dual zone bridge element accommodates oblong cookware and multiple diameter sizes
• Triple zone center element allows you to match element size to various sized cookware
• Variable 9-stage power setting offers a range of power from high heat to simmer
• Cooktop indicates when elements are still hot
• Triple zone center element allows you to match element size to various sized cookware
• Variable 9-stage power setting offers a range of power from high heat to simmer
• Cooktop indicates when elements are still hot
Electrical Information
Information
• 8,200 W
• 40 / 30 A
• 240 / 208 V
• 60 Hz
• 40 / 30 A
• 240 / 208 V
• 60 Hz
Accessories
Optional
CHEFSPAN08 - 10" Stainless Steel Pan
Dimensions
Class Width
30"
Width
31.02 inch(es) / 78.8 cm
Height
4.02 inch(es) / 10.2 cm
Depth
21.26 inch(es) / 54.0 cm
Weight
31 lb(s) / 14.06 kg
Additional Dimensions
• Required Cutout Size (HxWxD): 3 15/16" x 28 3/4" x 19 7/8"
• Minimum Distance From Counter Front: 2 1/4"
• Minimum Distance From Rear Wall: 2 3/4"
• Minimum Distance From Counter Front: 2 1/4"
• Minimum Distance From Rear Wall: 2 3/4"
Warranty
Warranty
Limited 2 years parts and labor
UPC
UPC#
825225924845
