Features

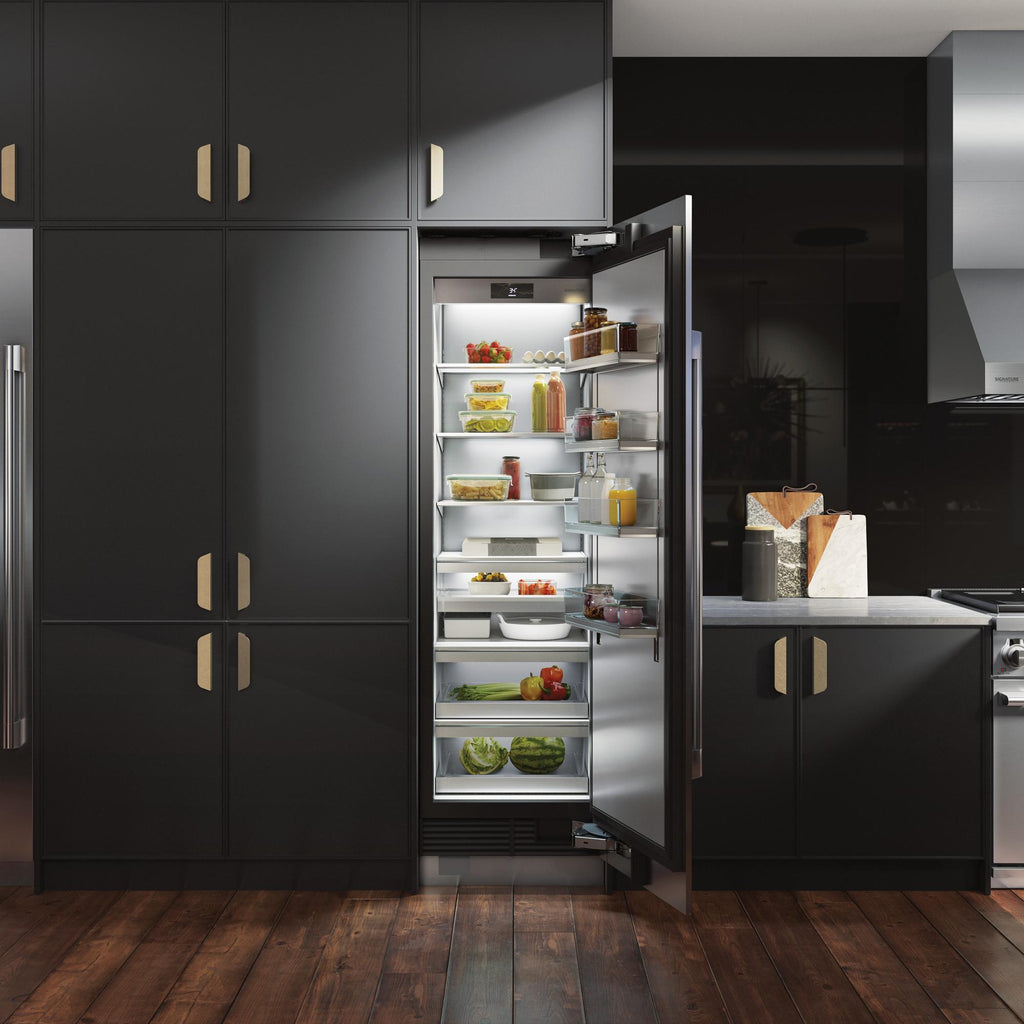

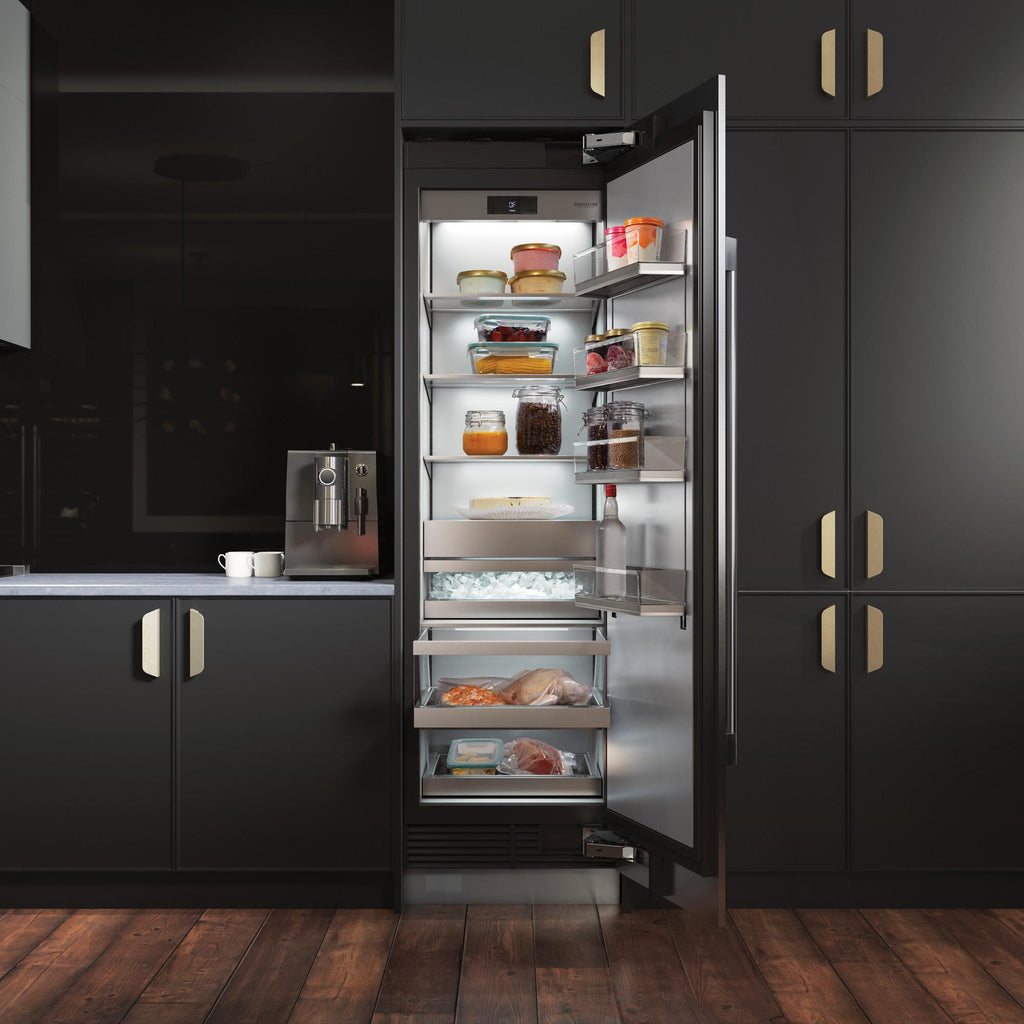

TRUEFIT™ INTEGRATED DESIGN
Paired together, the Signature Kitchen Suite 30-inch Integrated Colum Refrigerator and 18-inch Integrated Column Freezer are brilliantly engineered to cleanly fit a 48-inch opening or an existing 47.5-inch opening-perfect for both new construction and replacement applications.

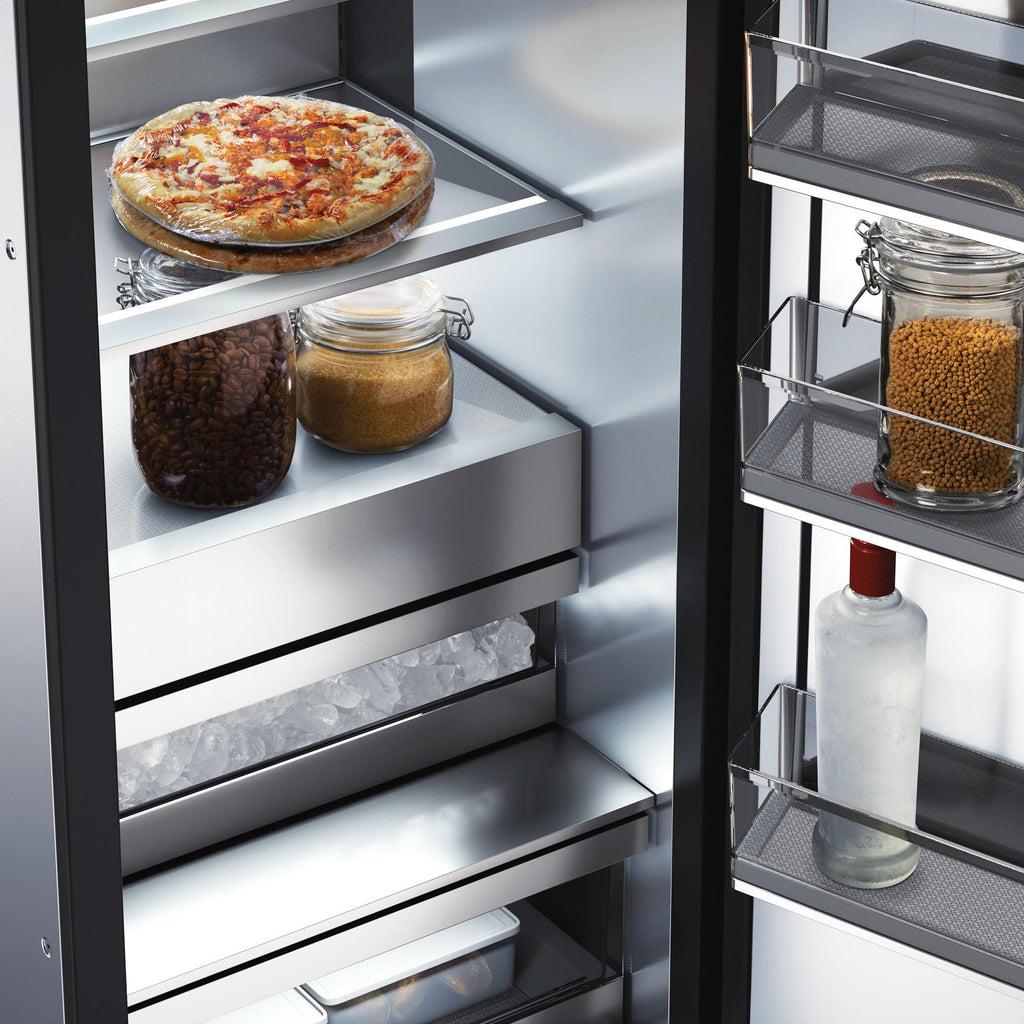

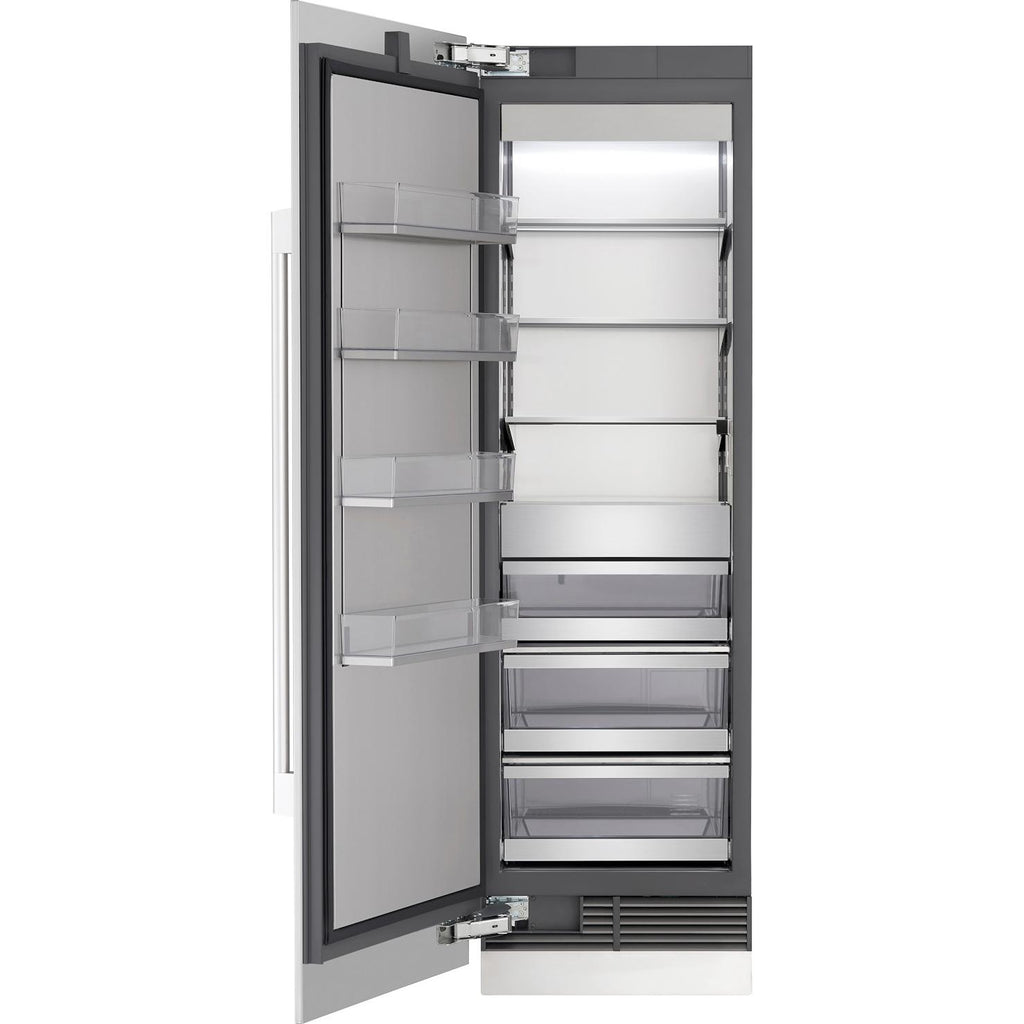

BRILLIANT INTERIOR
The glass and engineered all-metal interior is not only beautiful, but designed to help the freezer stay within 1-degree of fluctuation of the set temperature by holding and transferring cold fast and efficiently.

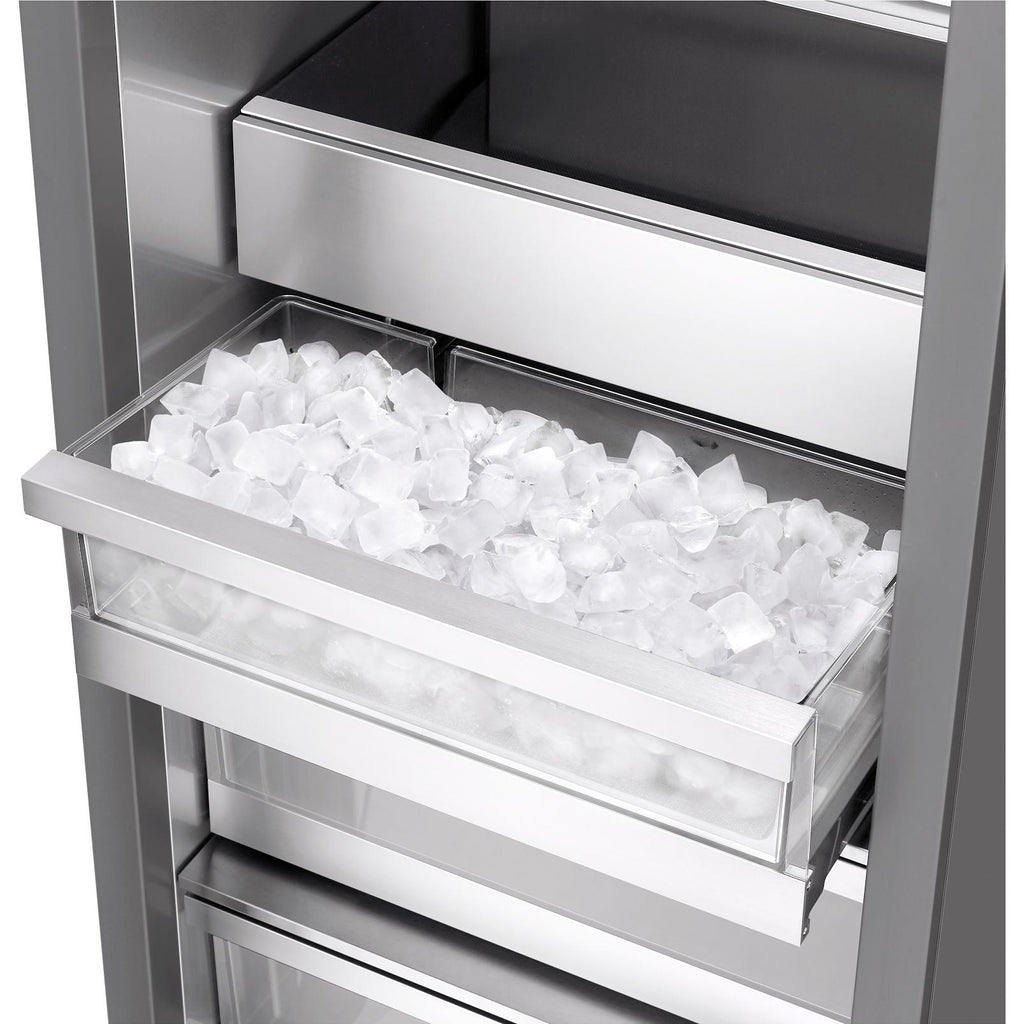

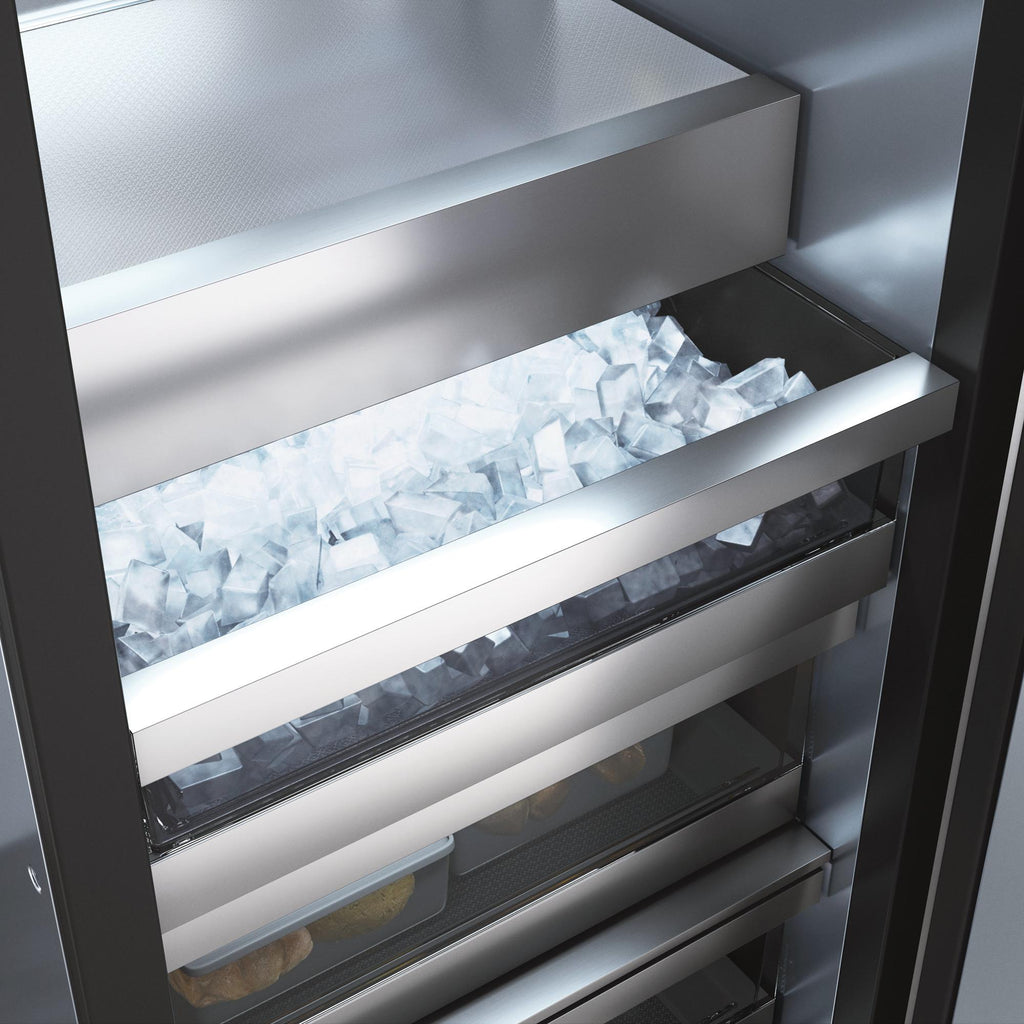

DISTINCTIVE ICE
The square ice shape gives an air of distinction while the removable clear bin holds up to 6 lb, perfect for entertaining.
Specifications
General
Type
Upright
Style
Built-In
Color
Panel Ready
Manufacturer Color
Panel Ready
Total Capacity
13.9 cu. ft.
Size Range
16 Cu.Ft. and Below
Door Hinge
Left
Features
Technologies
• WiFi-Enabled for SmartThinQ™ Control with iPhone / Android App
• Inverter Linear Compressor
• Smart Grid
• Smart Diagnosis
• TrueFit™ Integrated Design
• Lift and Go™ Storage Drawers
• Lift and Go™ Ice Drawer
• Lift and Go™ Door
• True-View™ Interior Lighting
• Inverter Linear Compressor
• Smart Grid
• Smart Diagnosis
• TrueFit™ Integrated Design
• Lift and Go™ Storage Drawers
• Lift and Go™ Ice Drawer
• Lift and Go™ Door
• True-View™ Interior Lighting
Wi-Fi
Yes
Defrost System / Frost Free
Yes
Digital Temperature Display
Yes
Lighting
Yes
Baskets
Yes
Additional Information
• Reversible Door
• Operating Temperatures: -6° to 8° F
• Maximum Sound Level: 39 dBA
• Hidden LED True-View™ Interior Lighting
• Digital Controls with White LED Display

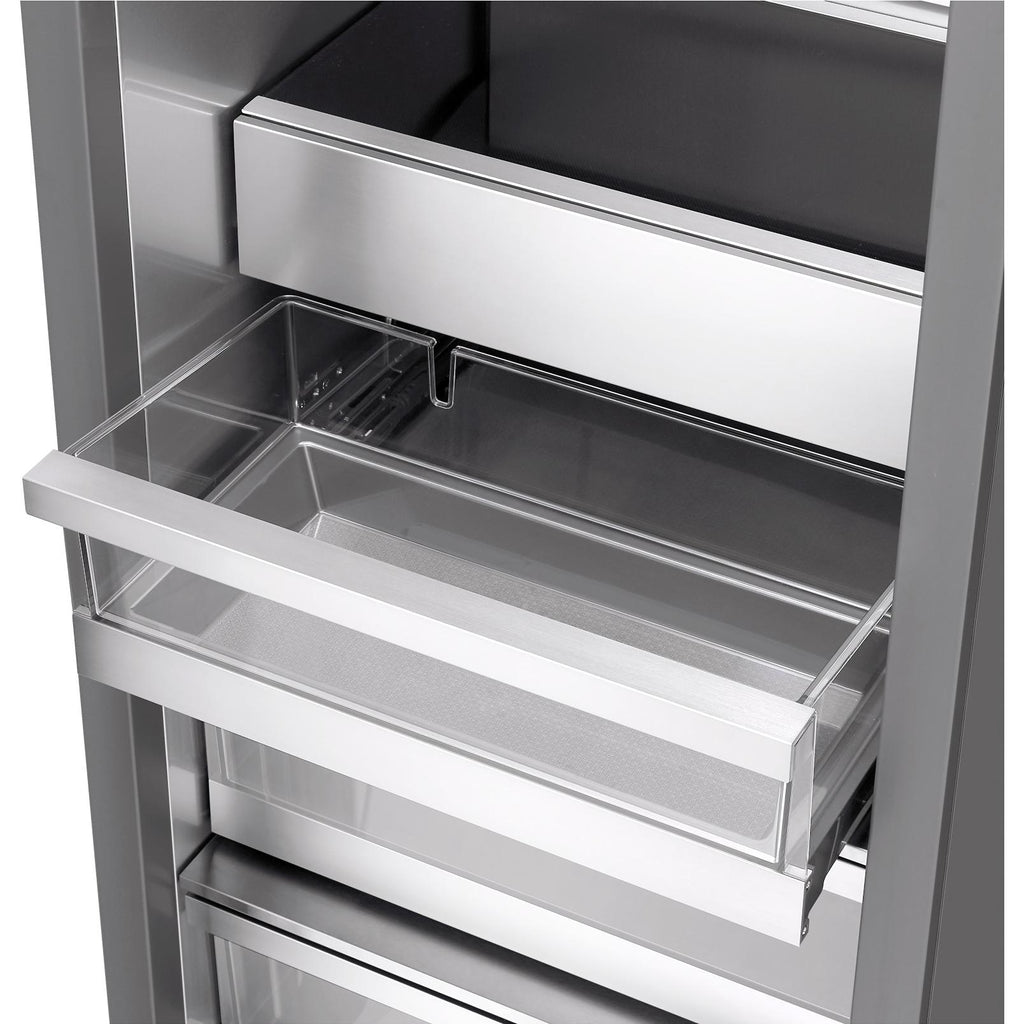

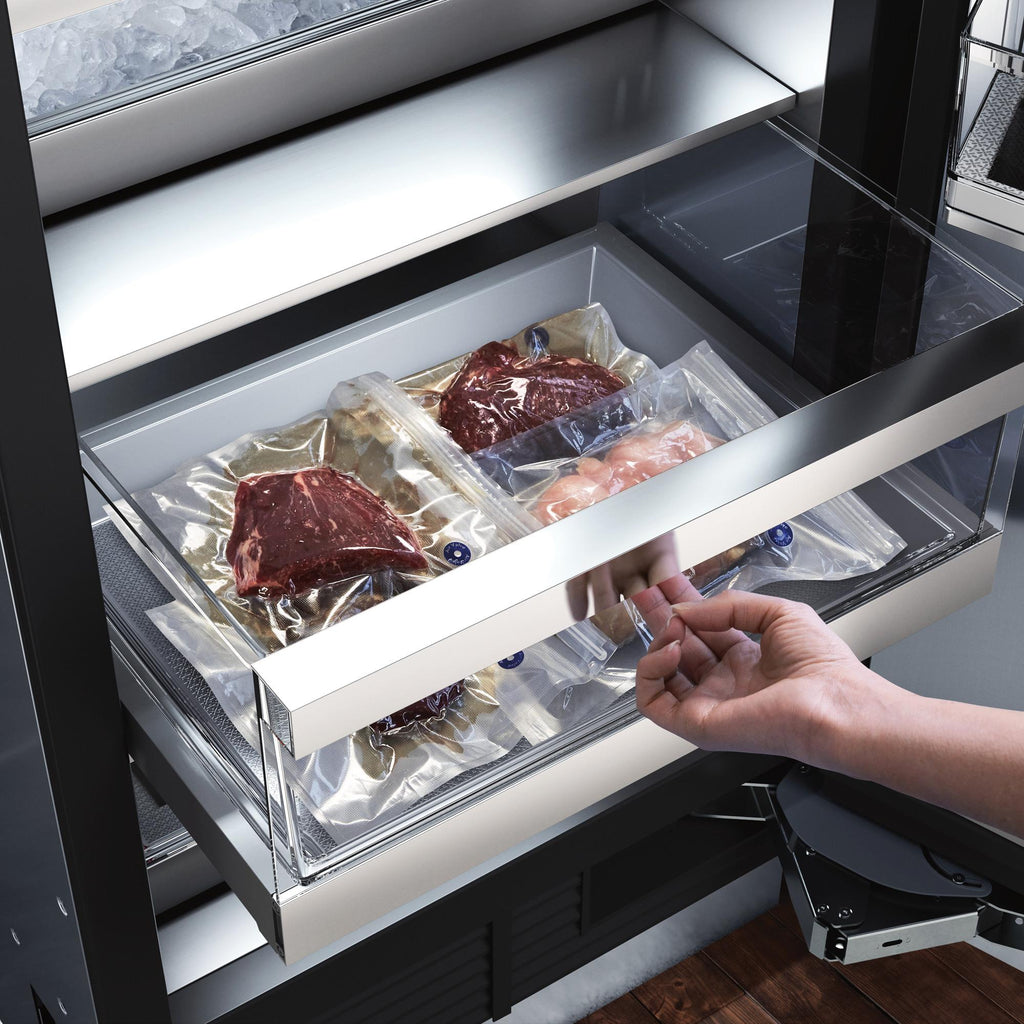

• Lift and Go™ Storage Drawers: 2 Soft Close / Self Close
• 3 Adjustable Shelves with LED TrueView™ Lighting, 1 Fixed Shelf
• Temperature Control, Water Filter Reset
• Aluminum Framed Lift and Go™ Door Bins with Removable Inserts: 4 Adjustable
• Speed Freeze
• Operating Temperatures: -6° to 8° F
• Maximum Sound Level: 39 dBA
• Hidden LED True-View™ Interior Lighting
• Digital Controls with White LED Display
• Lift and Go™ Storage Drawers: 2 Soft Close / Self Close
• 3 Adjustable Shelves with LED TrueView™ Lighting, 1 Fixed Shelf
• Temperature Control, Water Filter Reset
• Aluminum Framed Lift and Go™ Door Bins with Removable Inserts: 4 Adjustable
• Speed Freeze
Ice and Water
Ice Machine
Yes
Additional Ice and Water Information
• Water Filter Indicator
• Ice Production (24 Hrs.): 3.5 lbs.
• Icemaker On / Off
• Removable Ice Bucket Storage Volume: 5.5 lbs.
• Lift and Go™ Ice Drawer: 1 Soft Close / Self Close
• Ice Production (24 Hrs.): 3.5 lbs.
• Icemaker On / Off
• Removable Ice Bucket Storage Volume: 5.5 lbs.
• Lift and Go™ Ice Drawer: 1 Soft Close / Self Close
Electrical Information
Information
• 115 V
• 60 Hz
• 15 or 20 A V
• 60 Hz
• 15 or 20 A V
Certifications and Approvals
Energy Star Certified
Yes
Sabbath Mode
Yes
Accessories
Included
Anti-Tip Bracket
Optional
• Stainless Steel Panel / Handle / Toekick Kit SKSPK245CS
• Retrofit Frame Kit SKSFK800CS
• Brushed Aluminum Handle Medium – 31 11/16" SKSHK310HS, Long – 48" (For Columns) SKSHK480HS
• Replacement Water Filter LT1000P-S
• Retrofit Frame Kit SKSFK800CS
• Brushed Aluminum Handle Medium – 31 11/16" SKSHK310HS, Long – 48" (For Columns) SKSHK480HS
• Replacement Water Filter LT1000P-S
Dimensions
Width
23.75 inch(es) / 60.33 cm
Height (With Hinge)
83.5 inch(es) / 212.1 cm
Depth (Without Handles)
24.76 inch(es) / 62.9 cm
Weight
345.99 lb(s) / 156.94 kg
Additional Dimensions
• Overall Height: 83 1/2" Min. – 84 1/2" Max.
• Overall Depth Without Panel or Handles: 23 7/8"
• Overall Depth Without Panel or Handles: 23 7/8"
Shipping Dimensions
Weight
395.99 lb(s) / 179.62 kg
Warranty
Warranty
• Limited 1 year part and labor
• Additional 1 Year When Product Registration is Completed Online with Owner Opt-in for WiFi Monitoring
• 5 Years Limited Warranty on Sealed System, Parts and Labor
• 12 Years Limited Warranty on Sealed System, Parts Only
• Additional 1 Year When Product Registration is Completed Online with Owner Opt-in for WiFi Monitoring
• 5 Years Limited Warranty on Sealed System, Parts and Labor
• 12 Years Limited Warranty on Sealed System, Parts Only
UPC
UPC#
48231798822
