Features

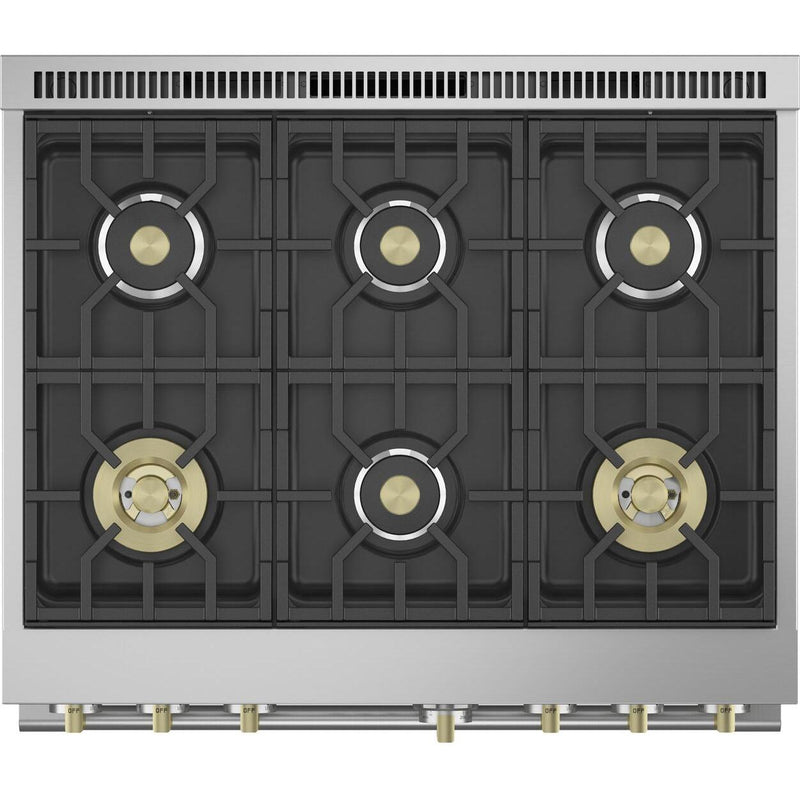

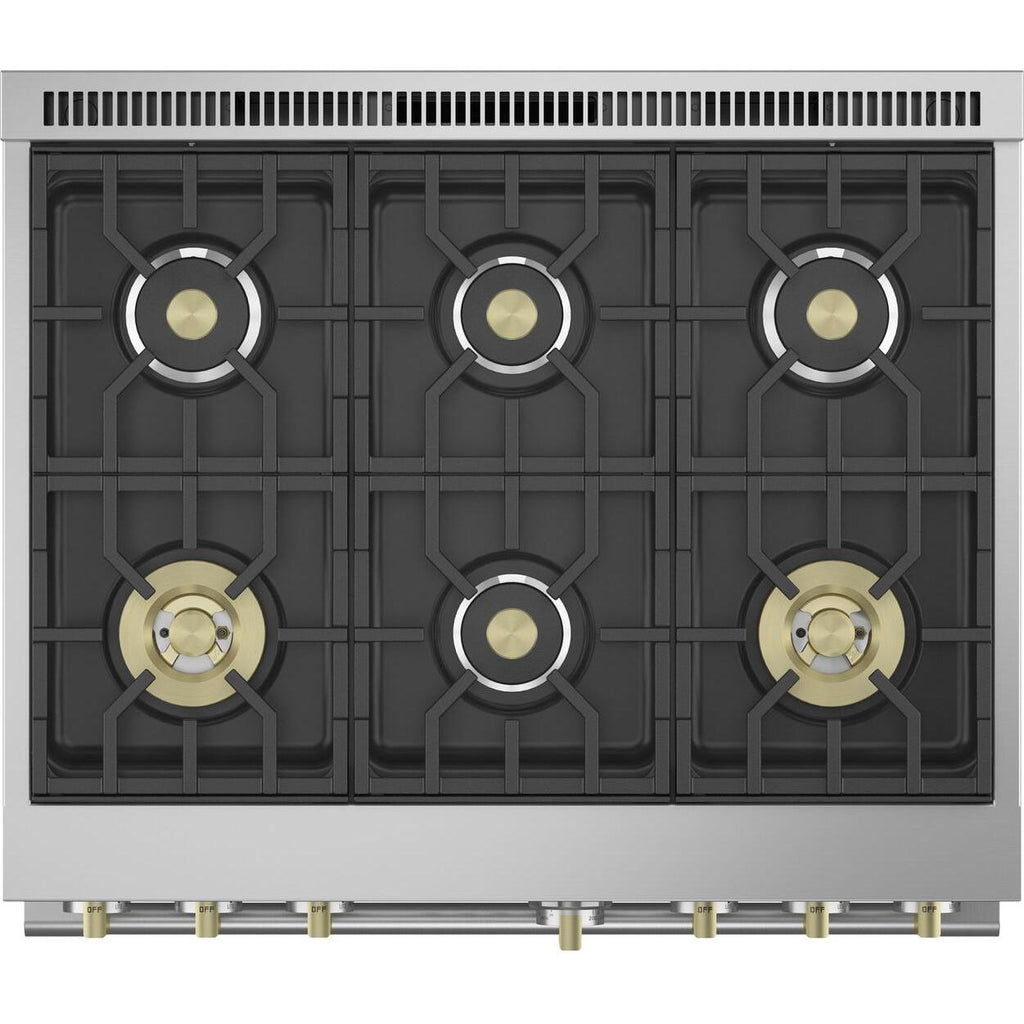

3-PIECE GRATES WITH REVERSIBLE WOK FEATURE
Designed to adapt to different cooking styles, these reversible grates are flat on one side and uniquely contoured on the other to perfectly fit round-bottom woks.
CHEF CONNECT
Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items, like appliance clocks, surface lights and even the vent when the burners are on.
DYNAMIC OVEN LCD
Dynamic Oven LCD - Functional and stylish, the LCD shows which oven mode is currently in use
and other helpful information, like oven temperature, timer and probe temp.
VERSATILE GAS BURNER CONFIGURATION
Delivering exceptional cooking flexibility, the multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame.
WIFI MONITORING AND REMOTE CONTROL WITH THE SMARTHQ™ APP
Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more.
INDUSTRY EXCLUSIVE CUSTOM COLOR LED ACCENT LIGHTING
For an elevated level of luxury, use the SmartHQ™ app to customize the accent lighting color and brightness to perfectly match kitchen décor or dining ambiance.
RING-LIT KNOBS
Ring-Lit Knobs - Delivering a modern approach to customization, the SmartHQ™ app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven.
SEAMLESS STAINLESS TOP FRAME
Seamless Stainless Top Frame - Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at.
SOFT-CLOSE HINGES
Soft-Close Hinges - Specially designed, soft close hinges ensure that the oven door always closes smoothly and quietly for a new level of kitchen refinement.
SOLID BRASS BLADES ON PRECISION MACHINED KNOBS
Solid Brass Blades on Precision Machined Knobs - With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents.
REVERSE AIR CONVECTION SYSTEM
Designed to optimize air movement in the oven, the convection fan system automatically adjusts airflow—forwards or backwards—depending on the oven mode being used.
Specifications
General
Series Name
Professional Statement Collection
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
• Variable Cleaning Time
• Delay Clean Option
• 3 Self-Clean Oven Racks
• Steam Clean Oven
• Automatic Self-Clean Oven Door Lock
• Delay Clean Option
• 3 Self-Clean Oven Racks
• Steam Clean Oven
• Automatic Self-Clean Oven Door Lock
Cooktop
Burners/Elements
6
Burners/Elements Output
• Front Left Burner: 23000 BTU
• Back Left Burner: 18000 BTU
• Back Right Bruner: 18000 BTU
• Front Right Burner: 23000 BTU
• Middle Back Burner: 15000 BTU
• Middle Front Burner: 15000 BTU
• Back Left Burner: 18000 BTU
• Back Right Bruner: 18000 BTU
• Front Right Burner: 23000 BTU
• Middle Back Burner: 15000 BTU
• Middle Front Burner: 15000 BTU
Burners
Sealed
Oven
Capacity (cu. ft.)
6.2 cu.ft.
Number of Ovens
Single
Programs
• Convection Bake Multi-Rack
• Convection Roast
• Precision Cooking Modes
• Proof
• Scan-to-Cook
• Warming
• Convection Roast
• Precision Cooking Modes
• Proof
• Scan-to-Cook
• Warming
Features
Technologies
• Reverse Air Convection System
• Chef Connect
• WiFi Connect
• Amazon Alexa
• Bluetooth
• Drop
• IFTTT
• Innit
• Sonos
• The Google Assistant
• Chef Connect
• WiFi Connect
• Amazon Alexa
• Bluetooth
• Drop
• IFTTT
• Innit
• Sonos
• The Google Assistant
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Wi-Fi
Yes
Additional Information
• Electronic with Auto Reignition
• 12-Hour Shut-Off Capability
• Audible Preheat Signal
• Auto Recipe Conversion
• Automatic Oven Meat Probe
• C° or F° Programmable
• Probe Mode
• Proof Mode
• Remote Enabled
• 2 Full Extension Racks
• 5 Rack Positions
• Convection Roasting Rack
• Broiler Pan and Grid
• Continuous Grates
• Burner "On" Indicators
• 6 Halogen Lamps (Caterer Oven)
• Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates
• Digital Temperature LCD Display with Timer Display
• Customizable LED Bullnose and Knob Accent Lighting
• 2 Sealed, Dual Ring
• 4 Sealed, Dual Flame Stacked (Removable Brass Accents)
• 12-Hour Shut-Off Capability
• Audible Preheat Signal
• Auto Recipe Conversion
• Automatic Oven Meat Probe
• C° or F° Programmable
• Probe Mode
• Proof Mode
• Remote Enabled
• 2 Full Extension Racks
• 5 Rack Positions
• Convection Roasting Rack
• Broiler Pan and Grid
• Continuous Grates
• Burner "On" Indicators
• 6 Halogen Lamps (Caterer Oven)
• Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates
• Digital Temperature LCD Display with Timer Display
• Customizable LED Bullnose and Knob Accent Lighting
• 2 Sealed, Dual Ring
• 4 Sealed, Dual Flame Stacked (Removable Brass Accents)
Electrical Information
Information
• 120 V
• 15 A
• 15 A
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Accessories
Included
LP Conversion Kit
Optional
• Grill Accessory (Cast Iron) - UXGRILL
• Optional Backguard - 12" Stainless Steel Backsplash (UX12BS36PSS)
• 30"-36" Adjustable Stainless Steel Backsplash with Warming Shelf (UXADJB36PSS)
• Optional Backguard - 12" Stainless Steel Backsplash (UX12BS36PSS)
• 30"-36" Adjustable Stainless Steel Backsplash with Warming Shelf (UXADJB36PSS)
Dimensions
Class Width
36"
Width
35.87 inch(es) / 91.12 cm
Height
35.25 inch(es) / 89.54 cm
Depth (Without Handles)
28.25 inch(es) / 71.76 cm
Depth (Including Handles)
28.5 inch(es) / 72.39 cm
Weight
417 lb(s) / 189.15 kg
Additional Dimensions
Height with Legs Extended - Maximum Height: 36 3/4"
Shipping Dimensions
Width
38.5 inch(es) / 97.79 cm
Height
47 inch(es) / 119.38 cm
Depth
34.7 inch(es) / 88.14 cm
Weight
462 lb(s) / 209.56 kg
Warranty
Warranty
• Limited 2 Years Parts and Labor
• Limited 5 Years Gas Surface Burners
• Limited Lifetime Oven Racks
• Limited 5 Years Gas Surface Burners
• Limited Lifetime Oven Racks
UPC
UPC#
084691851356
