Applicable Rebate
MONOGRAM "30-20-10-5 PROMOTION"
30% off Professional Ranges. 20% off Built-in Cooking, Wall Ovens, Dishwashers, Refrigeration and Refrigeration Handles 10% off, all other categories excluding accessories Hearth Oven is not included at 30%. Bonus 5% additional savings on the purchase of 3 or more major appliances (including microwave drawer & Wall Ovens) on the same invoice sale. - Promotion dates between May 04 and Sept 06, 2023. -
See all qualifying products
Features
STAR-K CERTIFICATION
Allows Monogram ranges to operate in Sabbath mode
TRUE EUROPEAN REVERSE AIR CONVECTION SYSTEM
True European Reverse Air Convection System - Designed to deliver more even cooking results, the convection fan and heating element.
PRECISION TEMPERATURE PROBE
Precision Temperature Probe - Cook roasts and meats to perfection with a temperature probe that shows the cooking progress on the wall oven screen or SmartHQ™ app, eliminating the need to open the oven door.
SOFT-CLOSE HINGES
Soft-Close Hinges - Specially designed, soft close hinges ensure that the oven door always closes smoothly and quietly for a new level of kitchen refinement.
SEAMLESS STAINLESS TOP FRAME
Seamless Stainless Top Frame - Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at.
SOLID BRASS BLADES ON PRECISION MACHINED KNOBS
Solid Brass Blades on Precision Machined Knobs - With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents.
RING-LIT KNOBS
Ring-Lit Knobs - Delivering a modern approach to customization, the SmartHQ™ app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven.
CHEF CONNECT
Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items, like appliance clocks, surface lights and even the vent when the burners are on.
INDUSTRY EXCLUSIVE CUSTOM COLOR LED ACCENT LIGHTING
For an elevated level of luxury, use the SmartHQ™ app to customize the accent lighting color and brightness to perfectly match kitchen décor or dining ambiance.
DYNAMIC OVEN LCD
Dynamic Oven LCD - Functional and stylish, the LCD shows which oven mode is currently in use
and other helpful information, like oven temperature, timer and probe temp.
HOT AIR FRY
Hot Air Fry - A must-have for health-conscious cooks, the Hot Air Fry mode crisps food to crunchy perfection, without using oils or butter.
WIFI MONITORING AND REMOTE CONTROL WITH THE SMARTHQ™ APP
Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more.

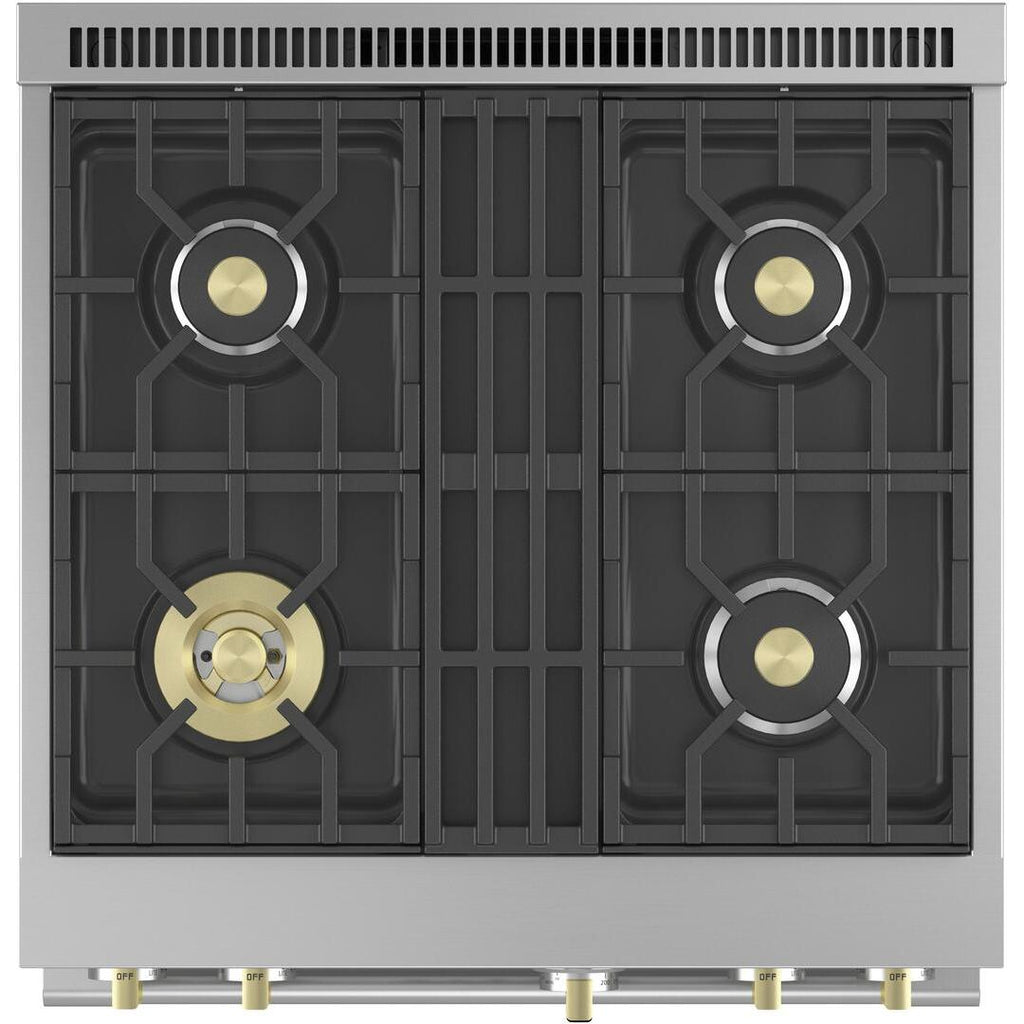

3-PIECE GRATES WITH REVERSIBLE WOK FEATURE
Designed to adapt to different cooking styles, these reversible grates are flat on one side and uniquely contoured on the other to perfectly fit round-bottom woks.
23,000 BTU MULTI-RING BRASS BURNERS
Versatile Gas Burner Configuration - Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame.
Specifications
General
Series Name
Statement Collection
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
• Cleaning Time 3-5 Hours
• Delay Clean Option
• Self and Steam Clean Modes
• 3 Self-Clean Oven Racks
• Delay Clean Option
• Self and Steam Clean Modes
• 3 Self-Clean Oven Racks
Cooktop
Burners/Elements
4
Burners/Elements Output
• Front Left Burner: 21,000 BTU
• Back Left Burner: 15,000 BTU
• Back Right Burner: 15,000 BTU
• Front Right Burner: 15,000 BTU
• Back Left Burner: 15,000 BTU
• Back Right Burner: 15,000 BTU
• Front Right Burner: 15,000 BTU
Burners
Sealed
Oven
Capacity (cu. ft.)
5.3 cu.ft.
Number of Ovens
Single
Programs
• Convection Bake Multi-Rack
• Convection Broil Hi/Lo
• Convection Roast
• Hot-Air Frying
• Precision Cooking Modes
• Proof
• Scan-to-Cook
• Warming
• Convection Broil Hi/Lo
• Convection Roast
• Hot-Air Frying
• Precision Cooking Modes
• Proof
• Scan-to-Cook
• Warming
Features
Technologies
• Reverse Air Convection
• True European Convection
• Hot Air Fry
• SmartHQ™ App
• Chef Connect
• WiFi Connect
• Amazon Alexa
• Bluetooth
• Drop
• IFTTT
• Innit
• Sonos
• The Google Assistant
• True European Convection
• Hot Air Fry
• SmartHQ™ App
• Chef Connect
• WiFi Connect
• Amazon Alexa
• Bluetooth
• Drop
• IFTTT
• Innit
• Sonos
• The Google Assistant
Air Fry
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• Broiler Wattage - 4000W
• Convection Wattage - 2500W
• Bake Wattage - 2700W
• Cooktop Burner Type 1 Sealed, Dual Ring Brass Accents (Removable)
• 3 Sealed, Dual Flame Stacked
• Cooktop Surface Porcelain-Enamel
• 8-Pass Bake Element
• 8-Pass Broil Element
• Hidden Bake
• Digital Temperature LCD Display with Timer Display
• Customizable LED Bullnose and Knob Accent Lighting
• Continuous Grates
• Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates
• 6 Halogen Lamps (Caterer Oven)
• Convection Roasting Rack
• Electronic with Auto Reignition
• 12-Hour Shut-Off Capability
• Audible Preheat Signal
• Auto Recipe Conversion
• Automatic Oven Meat Probe
• 5 Rack Positions
• Convection Wattage - 2500W
• Bake Wattage - 2700W
• Cooktop Burner Type 1 Sealed, Dual Ring Brass Accents (Removable)
• 3 Sealed, Dual Flame Stacked
• Cooktop Surface Porcelain-Enamel
• 8-Pass Bake Element
• 8-Pass Broil Element
• Hidden Bake
• Digital Temperature LCD Display with Timer Display
• Customizable LED Bullnose and Knob Accent Lighting
• Continuous Grates
• Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates
• 6 Halogen Lamps (Caterer Oven)
• Convection Roasting Rack
• Electronic with Auto Reignition
• 12-Hour Shut-Off Capability
• Audible Preheat Signal
• Auto Recipe Conversion
• Automatic Oven Meat Probe
• 5 Rack Positions
Electrical Information
Information
• 240 V
• 30 A
• 30 A
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Accessories
Included
LP Conversion Kit
Optional
• High Altitude Kit - WB28K10553
• Reversible Griddle/Grill Accessory - UXPRRGG
• Reversible Griddle/Grill Accessory - UXPRRGG
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
35.25 inch(es) / 89.54 cm
Depth (Without Handles)
28.25 inch(es) / 71.76 cm
Depth (Including Handles)
28.5 inch(es) / 72.39 cm
Weight
351 lb(s) / 159.21 kg
Additional Dimensions
Height with Legs Extended - Maximum Height: 36 3/4"
Shipping Dimensions
Width
32.5 inch(es) / 82.55 cm
Height
47 inch(es) / 119.38 cm
Depth
34.7 inch(es) / 88.14 cm
Weight
390.99 lb(s) / 177.35 kg
Warranty
Warranty
• Limited 2 Years Parts and Labor
• Limited 5 Years Gas Surface Burners
• Limited Lifetime Oven Racks
• Limited 5 Years Gas Surface Burners
• Limited Lifetime Oven Racks
UPC
UPC#
084691851318
