Features
DYNAMIC COOLING TECHNOLOGY™
The distinctive Marvel design features a thermal-efficient cabinet and door combined
with Dynamic Cooling Technology™ for superior temperature stability, faster cooling
times and speedy temperature recovery even with high frequency.

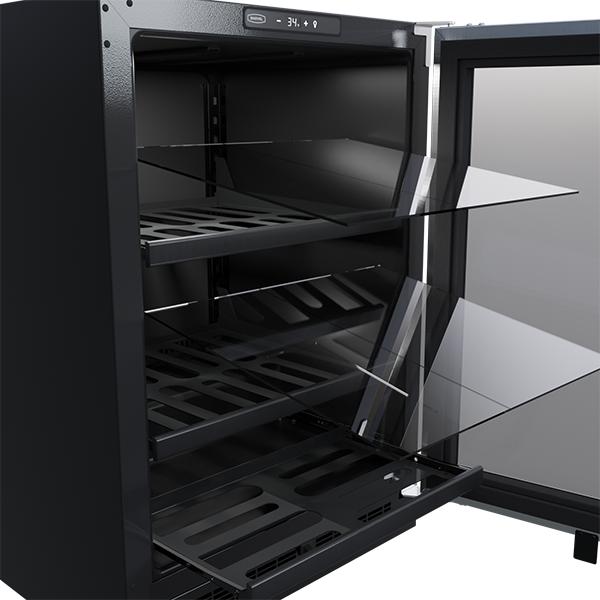

CONVERTIBLE SHELF™
Cantilevered glass shelving, wine rack with a Vibration Neutralization System™ or both configurations all in one
VIBRATION NEUTRALIZATION SYSTEM
Vibration Neutralization System™ protects wine from agitation, allowing it to come to full maturation
Specifications
General
Series Name
MLBV224
Type
Combinations
Installation
Built-In
Size
Compact
Color
Panel Ready
Manufacturer Color
Panel Ready Frame and Glass
Cabinet Color
Black
Temperature Zones
1
Temperature Settings
From 34° F to 60° F
Hinge Side
Right
Capacity
Total Capacity
5.5 cu. ft.
Cans
162
Bottles
18
Features
Technologies
• Vibration Neutralization System
• Dynamic cooling technology delivers rapid cool down, frost-free operation and precise temperature stability
• Dynamic cooling technology delivers rapid cool down, frost-free operation and precise temperature stability
Digital Temperature Display
Yes
Glass Door
Yes
Interior Light
Yes
Lock
No
Reversible Door
Yes
Additional Information
• Two 3-in-1 Split Convertible Shelves
• Smooth-glide 4-bottle wine rack
• Proprietary shelving design allows for cool air to circulate throughout cabinet for temperature consistency from top to bottom
• Thermal-efficient cabinet ensures optimum preservation
• Argon-filled, UV-resistant tinted dual pane glass
• Sound-buffering design
• Multifunction controls
• Easy-to-use settings and options
• Elegant midnight black interior
• Arctic white LED interior lighting
• Solid black shelf fronts
• Black toe kick
• 4 Leveling legs
• Agency Approval: UL
• Refrigerant Type: R600a
• Defrost Type: Frost Free
• Smooth-glide 4-bottle wine rack
• Proprietary shelving design allows for cool air to circulate throughout cabinet for temperature consistency from top to bottom
• Thermal-efficient cabinet ensures optimum preservation
• Argon-filled, UV-resistant tinted dual pane glass
• Sound-buffering design
• Multifunction controls
• Easy-to-use settings and options
• Elegant midnight black interior
• Arctic white LED interior lighting
• Solid black shelf fronts
• Black toe kick
• 4 Leveling legs
• Agency Approval: UL
• Refrigerant Type: R600a
• Defrost Type: Frost Free
Electrical Information
Information
115V / 60 Hz / 15A
Dimensions
Class Width
24"
Width
23.87 inch(es) / 60.64 cm
Height
33.75 inch(es) / 85.73 cm
Depth
23.72 inch(es) / 60.25 cm
Additional Dimensions
Cutout Dimensions: 24" W x 24" D x 34" HCord Length: 6 ft
Shipping Dimensions
Width
28 inch(es) / 71.12 cm
Height
37 inch(es) / 93.98 cm
Depth
31 inch(es) / 78.74 cm
Weight
159.99 lb(s) / 72.57 kg
Warranty
Warranty
• 1-year parts and labor warranty
• 5-year sealed system parts warranty
• 5-year sealed system parts warranty
