Features
GERMAN ENGINEERING
Superior products offer premium quality, cutting edge design and innovative features that fit with your busy lifestyle. Plus, exclusive components and materials along with the latest production processes ensure energy efficiency and performance for years to come.
DUOCOOLING
DuoCooling technology uses two completely separate refrigeration circuits to prevent air from being exchanged between the fridge and freezer compartments. This protects food in the refrigerator compartment from dry air from the freezer compartment. Also, odours do not mingle and the foods retain their own aroma. There is no air exchange between the fridge and freezer compartments, odour transfer is prevented and stored food does not dry out.
NOFROST
When you open your freezer, you want to see frozen food – and certainly not ice and frost. NoFrost protects the freezer compartment from unwanted icing, which consumes a lot of energy and can be expensive. NoFrost means no more tedious and time-consuming defrosting of the freezer compartment, more time for other things – and saving money.
SUPERCOOL
SuperCool generates greater cold reserves so that freshly stored food can be rapidly chilled. Reversion from the chilling temperature of +2°C to the normal refrigeration temperature is time or quantity-controlled to help save energy.
SUPERFROST
SuperFrost generates greater cold reserves so that freshly stored food can be frozen rapidly, in a vitamin-preserving manner. Reversion from the freezing temperature of -32°C to the normal freezer temperature is time or quantity-controlled to help save energy.
DOOR ALARM
The audible door alarm alerts the user if the door has been open for longer than 60 seconds for safe protection of the food.
TEMPERATURE ALARM
The temperature alarm notifies immediately visually and audibly in case of inadvertent temperature deviations, for example when a door is opened or after a power failure.
CHILD LOCK
The child lock is programmed so as to prevent the appliance being inadvertently switched off.A symbol in the MagicEye indicates when the child lock is switched on.
ICEMAKER WITH FIXED WATER CONNECTION
Are there any ice cubes left? The IceMaker means you never have to ask. With the IceMaker with fixed water connection, the water comes directly from the tap. The MaxIce function allows you to produce up to 1.5 kg of ice cubes a day. The versatile ice compartment divider lets you choose the amount of ice cubes you want to store; easy and just as you like it.

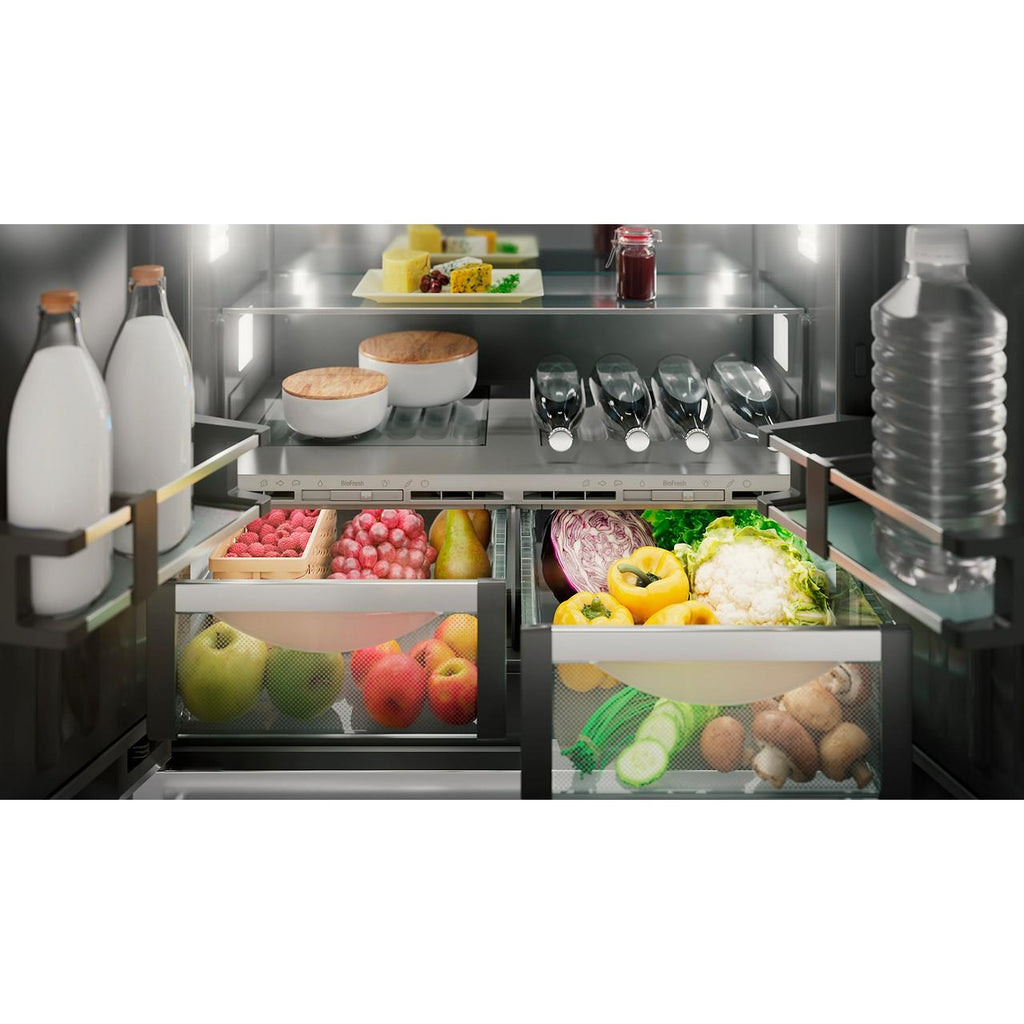

BIOFRESH
Keeping your food fresh in a Liebherr is easy. BioFresh guarantees the perfect climate for super-long-term freshness. Through its advanced technology the temperature is kept at just above freezing. Each drawer can be used individually and provides ideal humidity – HydroSafes with high humidity or DrySafes with low humidity – for a versatile storage solution of meats and cheeses as well as fruits and vegetables.
Specifications
General
Refrigerator Type
Bottom Freezer
Installation Type
Built-In
Door Hinge
Right
Color
Panel Ready
Manufacturer Color
Panel Ready
Capacity
Total
18.9 cu. ft.
Refrigerator
12.9 cu. ft.
Freezer
6.0 cu. ft.
Refrigerator Features
Technologies
• BioFresh drawers
• Control: MagicEye with digital temperature control
• Moisture Regulation: DuoCooling
• FrostSafe: with grey drawers completely closed on all sides
• SoftSystem
• SuperCool
• SuperFrost
• Control: MagicEye with digital temperature control
• Moisture Regulation: DuoCooling
• FrostSafe: with grey drawers completely closed on all sides
• SoftSystem
• SuperCool
• SuperFrost
Control Lock
Yes
Digital Display
Yes
Door Alarm
Yes
Frost Free
Yes
Interior Light
Yes
Crisper Drawers
Yes
Gallon Door
Yes
Additional Information
• Number of Temperature Zones: 3
• Position of Control Unit: behind the door
• Number of Regulated Refrigeration Circuits: 2
• Temperature Display: Fridge & freezing compartment
• Control Unit: Touch
• Malfunction Warning Signal: optical and acoustical
• Defrosting Method Refrigerator: automatic
• Interior Light Refrigerator Compartment: LED light column on
• Number of Storage Shelves Refrigerator Compartment: 4
• Height-Adjustable Storage Shelves: 3
• Bottle Racks: 2
• Number of Can Racks: 4
• Storage Rack: Can rack / Gallon rack
• Height-Adjustable Inner Door Shelf: Gradual adjustment
• Dry Rear Panel
• Material Dry Rear Wall: Stainless Steel
• Material Door Bins: Glass with plastic trim
• Storage Shelf Material Refrigerator Compartment: Glass
• Cabinet Material: Stainless Steel
• Door Hinge Replacement: Only possible via customer service
• Door Seal: Replaceable
• Height-Adjustable Feet: 2
• Ventilation: Base ventilation
• Plug Type: USA
• Connector Cable Length: 2,800 mm
• Door alarm, cooling: audible
• Forced air cooling
• Pull-out system drawer, fridge compartment: Fully extendible
• Adjustable temperature range: -14 °C bis -27 °C
• Design of inner door rack: Comfort GlassLine
• Type of installation: Fully Integrated
• Door assembly: Fixed door
• Door opening angle: 115°
• Position of Control Unit: behind the door
• Number of Regulated Refrigeration Circuits: 2
• Temperature Display: Fridge & freezing compartment
• Control Unit: Touch
• Malfunction Warning Signal: optical and acoustical
• Defrosting Method Refrigerator: automatic
• Interior Light Refrigerator Compartment: LED light column on
• Number of Storage Shelves Refrigerator Compartment: 4
• Height-Adjustable Storage Shelves: 3
• Bottle Racks: 2
• Number of Can Racks: 4
• Storage Rack: Can rack / Gallon rack
• Height-Adjustable Inner Door Shelf: Gradual adjustment
• Dry Rear Panel
• Material Dry Rear Wall: Stainless Steel
• Material Door Bins: Glass with plastic trim
• Storage Shelf Material Refrigerator Compartment: Glass
• Cabinet Material: Stainless Steel
• Door Hinge Replacement: Only possible via customer service
• Door Seal: Replaceable
• Height-Adjustable Feet: 2
• Ventilation: Base ventilation
• Plug Type: USA
• Connector Cable Length: 2,800 mm
• Door alarm, cooling: audible
• Forced air cooling
• Pull-out system drawer, fridge compartment: Fully extendible
• Adjustable temperature range: -14 °C bis -27 °C
• Design of inner door rack: Comfort GlassLine
• Type of installation: Fully Integrated
• Door assembly: Fixed door
• Door opening angle: 115°
Freezer Features
Additional Freezer Information
• Freezer Compartment Position: Bottom
• Drawer pull-out system, freezer compartment: Fully extendible
• Defrosting Method Freezer: automatic
• Freezing Capacity in 24 h: 24.3 lb
• Number of Drawers Freezer Compartment: 2
• Material of Adjustable Shelves Freezer Compartment: Plastic
• Interior light, freezer compartment: LED lighting
• Door alarm, freezing
• Drawer pull-out system, freezer compartment: Fully extendible
• Defrosting Method Freezer: automatic
• Freezing Capacity in 24 h: 24.3 lb
• Number of Drawers Freezer Compartment: 2
• Material of Adjustable Shelves Freezer Compartment: Plastic
• Interior light, freezer compartment: LED lighting
• Door alarm, freezing
Ice and Water
Ice System
Interior
Filtration
Yes
Dispenser Features
• Ice Cube Production: 3.1 lb
• Ice Cube Storage: 6.0 lb
• Fixed Water Inlet
• Ice Cube Storage: 6.0 lb
• Fixed Water Inlet
Electrical Information
Information
• Energy Consumption in 24h: 1.589 kWh / 24h
• Energy Consumption per Year: 580 kWh/a
• Connection Rating: 2.5 A 189.4 W
• Voltage: 115 V ~
• Frequency: 60 Hz
• Energy Consumption per Year: 580 kWh/a
• Connection Rating: 2.5 A 189.4 W
• Voltage: 115 V ~
• Frequency: 60 Hz
Certifications and Approvals
Energy Star Certified
Yes
Sabbath Mode
Yes
Accessories
Optional
• Water Filter: 9880980/7440002/ 9883057
• Stainless Steel Round Handles: 9900327
• Brushed Aluminium Square Handles: 9900329
• Door Stopper 90*: 9096699
• Stainless Steel Panels Freezers: 9900323
• Stainless Steel Panels Refrigerators 80": 9900333
• Stainless Steel Panels Refrigerator 84": 9904381
• Stainless Steel Panels Freezer Drawers: 9900323
• Stainless Steel Round Handles: 9900327
• Brushed Aluminium Square Handles: 9900329
• Door Stopper 90*: 9096699
• Stainless Steel Panels Freezers: 9900323
• Stainless Steel Panels Refrigerators 80": 9900333
• Stainless Steel Panels Refrigerator 84": 9904381
• Stainless Steel Panels Freezer Drawers: 9900323
Dimensions
Class Width
35" to 37.9"
Class Height
70" and More
Width
35.87 inch(es) / 91.12 cm
Height (With Hinge)
79.81 inch(es) / 202.72 cm
Overall Depth
24.06 inch(es) / 61.12 cm
Weight
370.2 lb(s) / 167.92 kg
Additional Dimensions
• Niche Height: 80 - 82 inch
• Range of appliance width: 30 inch
• Min. depth: 25 inch
• Range of appliance width: 30 inch
• Min. depth: 25 inch
Shipping Dimensions
Weight
392.4 lb(s) / 177.99 kg
