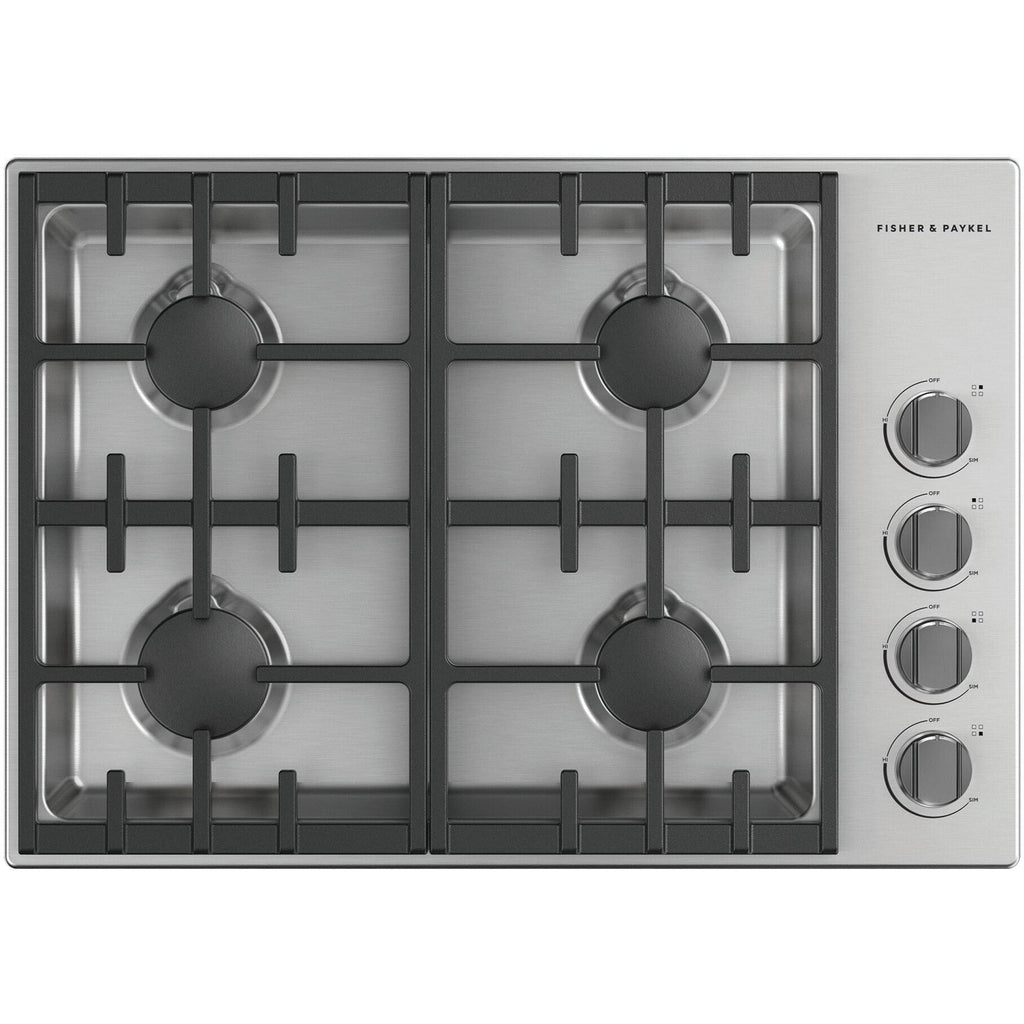

Fisher & Paykel 30-inch Built-in Gas Cooktop with 4 Burners CDV3-304-N IMAGE 1

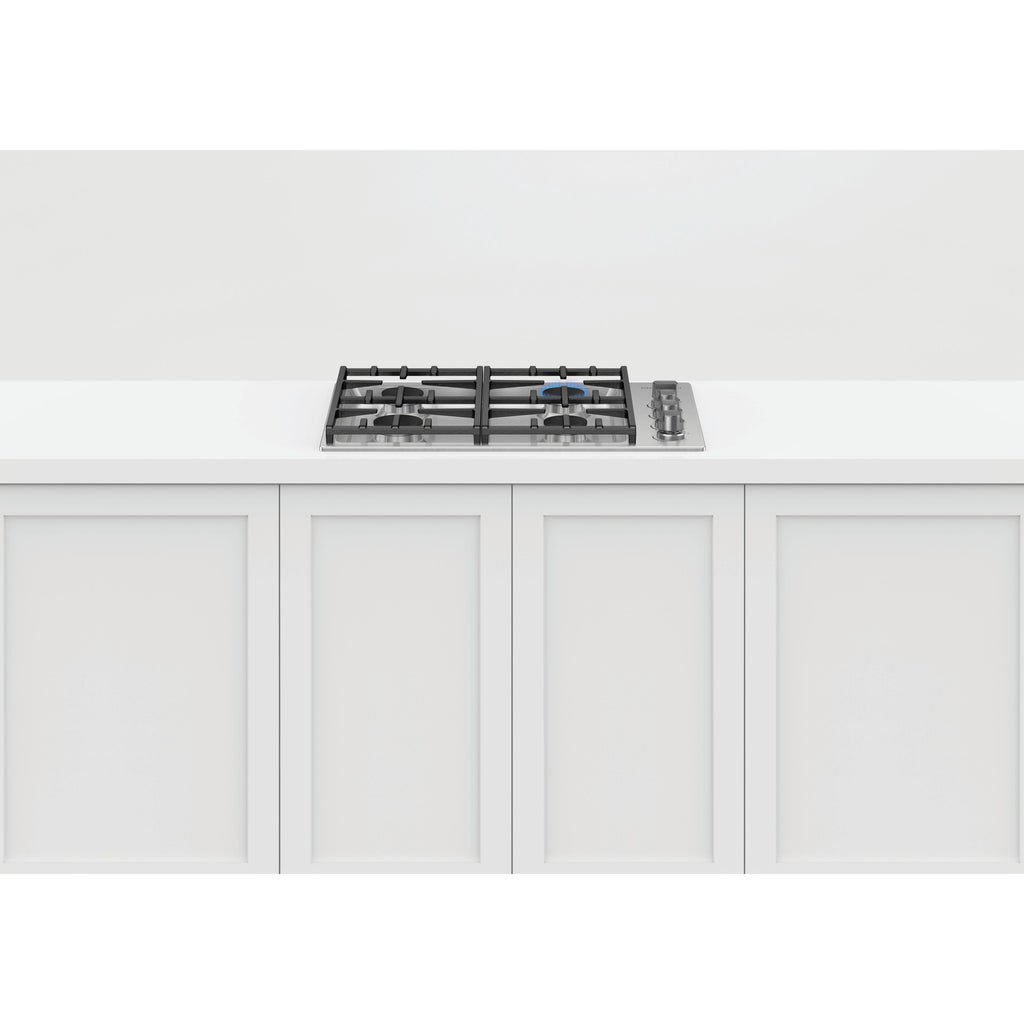

Fisher & Paykel 30-inch Built-in Gas Cooktop with 4 Burners CDV3-304-N IMAGE 2

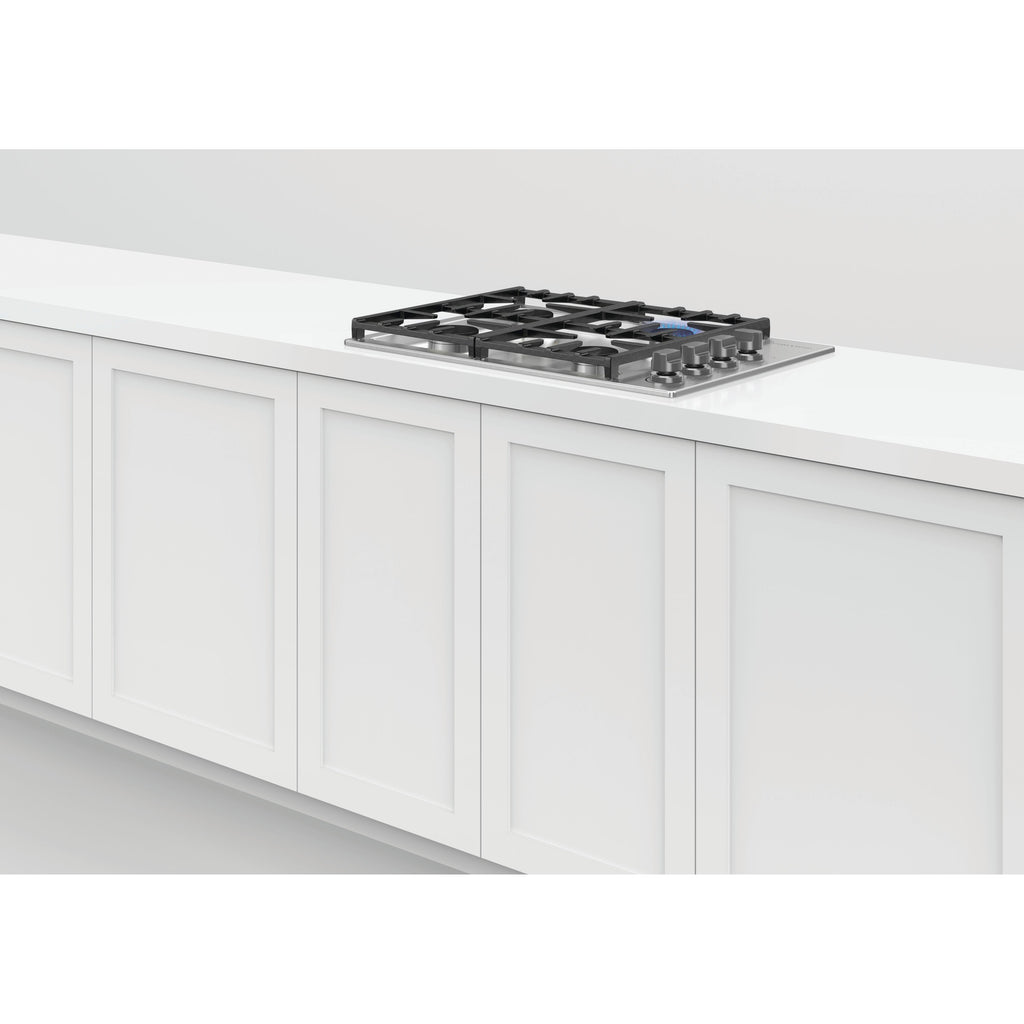

Fisher & Paykel 30-inch Built-in Gas Cooktop with 4 Burners CDV3-304-N IMAGE 3

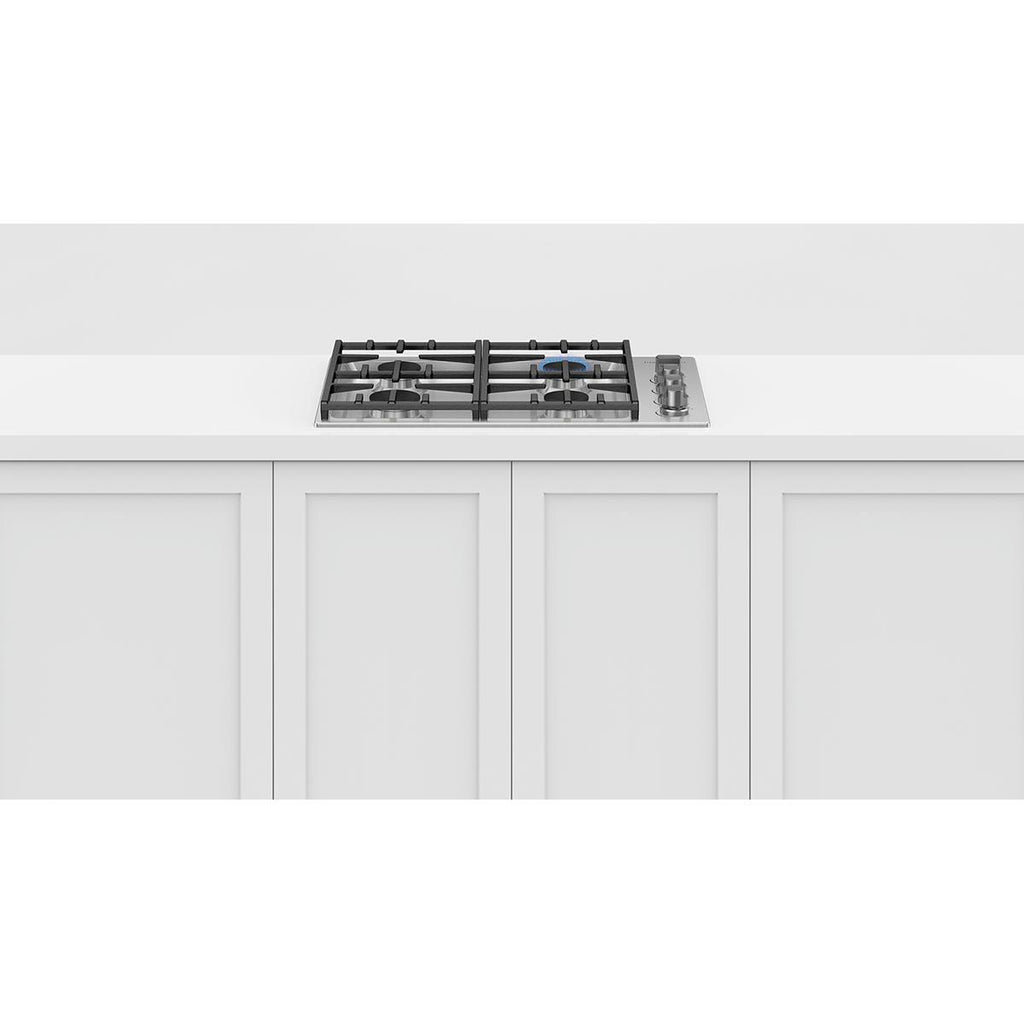

Fisher & Paykel 30-inch Built-in Gas Cooktop with 4 Burners CDV3-304-N IMAGE 4
Roll over image to zoom in Click on image to zoom
Fisher & Paykel 30-inch Built-in Gas Cooktop with 4 Burners CDV3-304-N IMAGE 1
Fisher & Paykel 30-inch Built-in Gas Cooktop with 4 Burners CDV3-304-N IMAGE 2
Fisher & Paykel 30-inch Built-in Gas Cooktop with 4 Burners CDV3-304-N IMAGE 3
Fisher & Paykel 30-inch Built-in Gas Cooktop with 4 Burners CDV3-304-N IMAGE 4

Fisher & Paykel 30-inch Built-in Gas Cooktop with 4 Burners CDV3-304-N

Fisher & PaykelSKU: CDV3304N
Fisher & Paykel 30-inch gas cooktop with 4 sealed burners. Continuous surface grates designed for pots and pans to move... Fisher & Paykel 30-inch gas cooktop with 4 sealed burners. Continuous surface grates designed for pots and pans to move safely across the cooktop. View more
Features Specifications Documents
Features
EASY TO CLEAN (GAS COOKTOPS)
The durable, sealed cooking surface and stainless steel finish with dishwasher-safe grates make cleaning up easy.
EASY TO CLEAN (GAS COOKTOPS)
COOKTOP POWER - SEALED DUAL FLOW BURNERS™
Sealed Dual Flow Burners™ deliver rangetop power up to 22,500 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
COOKTOP POWER - SEALED DUAL FLOW BURNERS™
GAS COOKTOP CONTROL
From the highest to the lowest temperatures you get total control. A precise full surface simmer is delivered across all burners.
GAS COOKTOP CONTROL
COOKING FLEXIBILITY - SELF-LOCATING GRATES
The self-locating grates focus the flame on the base of each pan, where it is most required. They are designed for easy and safe sliding of pans across the cooktop surface. For cooking variety, a wok ring accessory is also available.
COOKING FLEXIBILITY - SELF-LOCATING GRATES
COMPLEMENTARY DESIGN - GAS COOKTOPS
Built to last with distinctive, bold styling, this cooktop is designed to match the Fisher & Paykel Professional style family of appliances.
COMPLEMENTARY DESIGN - GAS COOKTOPS
Specifications
General
Series Name
Series 7 Professional
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Natural Gas
Type
Built-In
Cooktop
Burners/Elements
4
Burner/Element Size
• Total Power: 65,000 BTU
• Max Burner Power: 20,000 BTU
• Power Back Left Burner: 15,000 BTU
• Power Back Right Burner: 15,000 BTU
• Power Front Left Burner: 20,000 BTU
• Power Front Right Burner: 15,000 BTU
Burners
Sealed
Features
Technologies
Sealed Dual Flow Burners™
Additional Information
• Simmer on All Burners: 140°F
• Titanium Coated, Illuminated Metal Dials
Electrical Information
Information
• 120 V
• 60 Hz
• 15 A
Accessories
Optional
• Downdraft HD30
• Minimum CFM 600
• Pro hood HCB30-6 N
• Traditional hood ES30
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
5.5 inch(es) / 13.97 cm
Depth
21 inch(es) / 53.34 cm
Warranty
Warranty
2 Years Parts and Labor
Documents
Installation Guide
Owners Manual
Product Specifications
Warranty Details
Dimensions Sheet
