Features
LED BULBS
Low consumption 1 watt LED bulbs with a dimmer light up your cooking but use very little energy.

REMOTE CONTROL (INCLUDED)
Control all features of the hood from the convenience of a wireless remote control.
CHARCOAL FILTERS
For recirculating installations, high
quality, heavy duty filters ensure the
removal of smoke and odors from the
kitchen. Some ductwork is required to
exhaust the unit out of the cabinet.

COMFORT PANEL
The perimetric filtration system improves efficiency and reduces air noise.
DELAYED AUTO-OFF
Automatically turns the fan off after a set time (varies by the hood).
DIMMER LIGHT
A lower intensity light setting.
ENERGY DIFFUSER
A motor that improves efficiency and allows for longer duct runs.
FILTER SATURATION ALARM
An indicator on the hood signals when to wash filters.
24 HOUR ANTI-POLLUTION MODE
This mode runs the hood for 10 minutes once an hour at a low CFM to refresh the air in your home.

INTENSIVE SPEED
Turns on at the highest speed for 10 minutes.
Specifications
General
Series Name
Zoom
Blower Included
Yes
Airflow
400 CFM
Style
Island
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Island
Features
Dishwasher-Proof Filters
Yes
Ducting Information
Recirculation only (NON-DUCTED ONLY)
Speeds
4
Additional Information

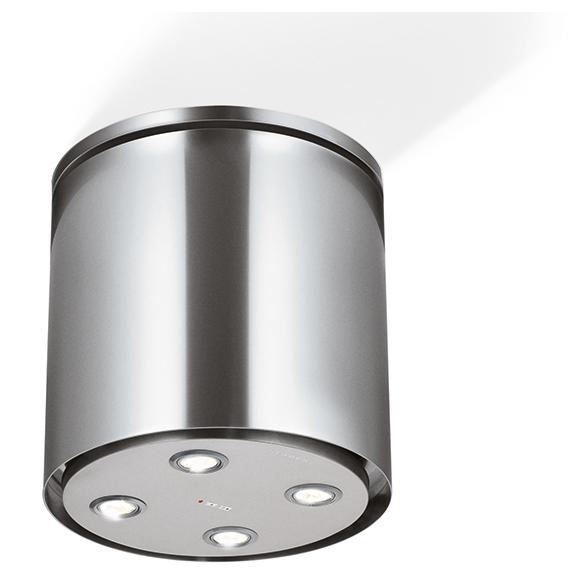

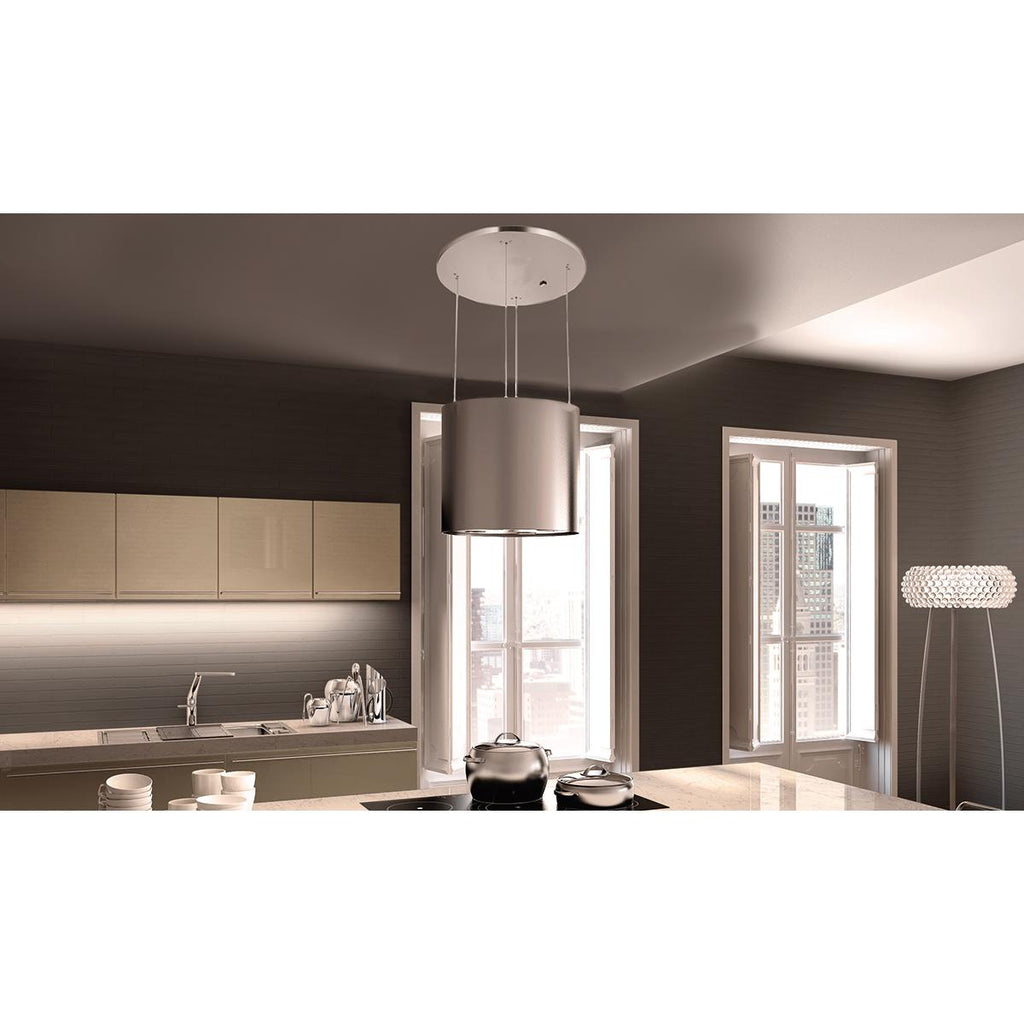

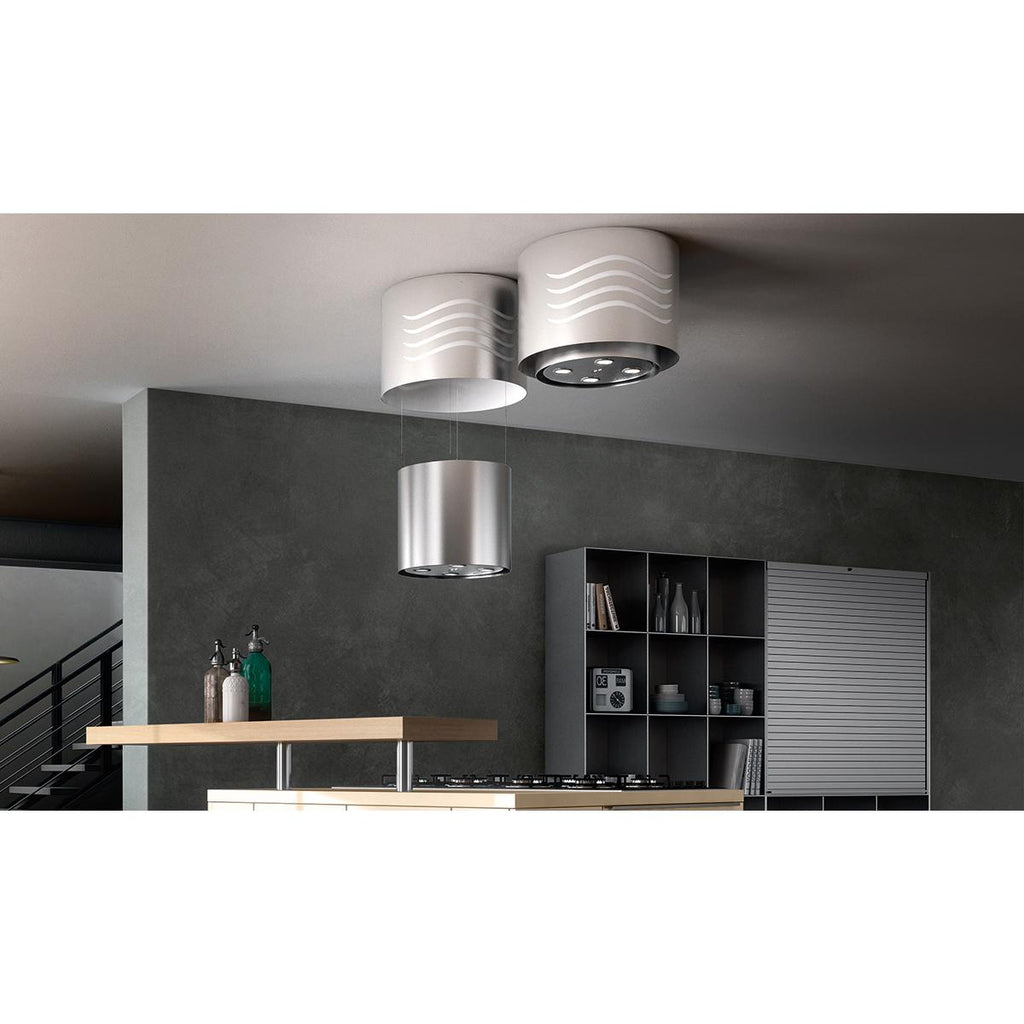

• Lowers from the ceiling and retracts with remote control
• CFM: 150, 250, 350, 390 (Boost)
• Sones: 3.9, 5.0, 6.0, 7.3 (Boost)
• Power Watts: 250, 290, 330, 350 (Boost)
• Digital control
• Zoom hood lighting: 4 LED (1 Watt) - spot lights
• 24-hour anti-pollution mode
• 30 Minute delay auto shut off
• Perimetric filter system
• 10 Minute intensive speed
• ADA compliant
• CFM: 150, 250, 350, 390 (Boost)
• Sones: 3.9, 5.0, 6.0, 7.3 (Boost)
• Power Watts: 250, 290, 330, 350 (Boost)
• Digital control
• Zoom hood lighting: 4 LED (1 Watt) - spot lights
• 24-hour anti-pollution mode
• 30 Minute delay auto shut off
• Perimetric filter system
• 10 Minute intensive speed
• ADA compliant
Electrical Information
Information
AC power: 350 watts / 2.9 amps
Accessories
Included
• Remote control
• Charcoal filter
• Charcoal filter
Optional

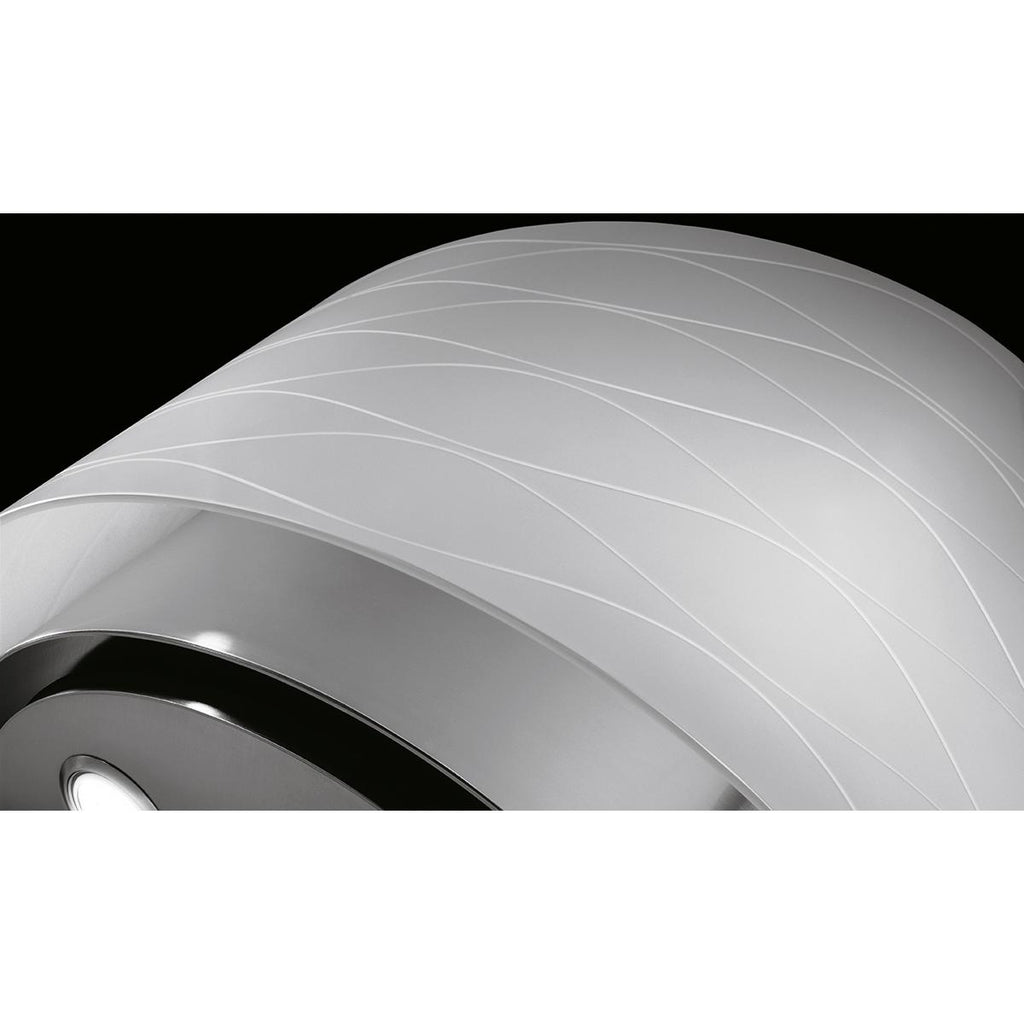

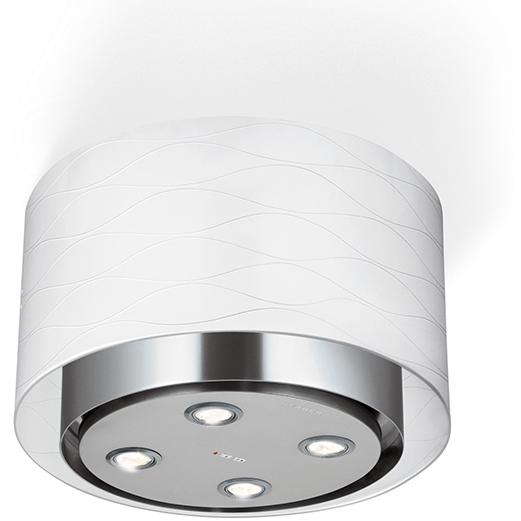

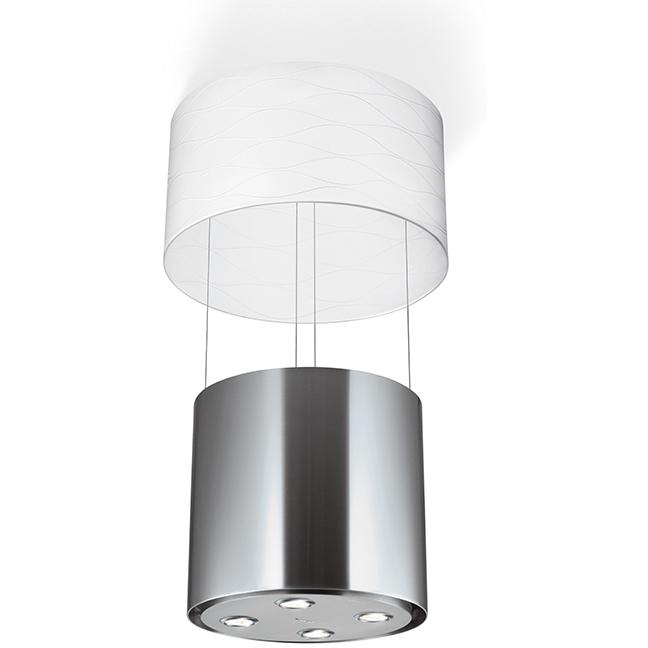

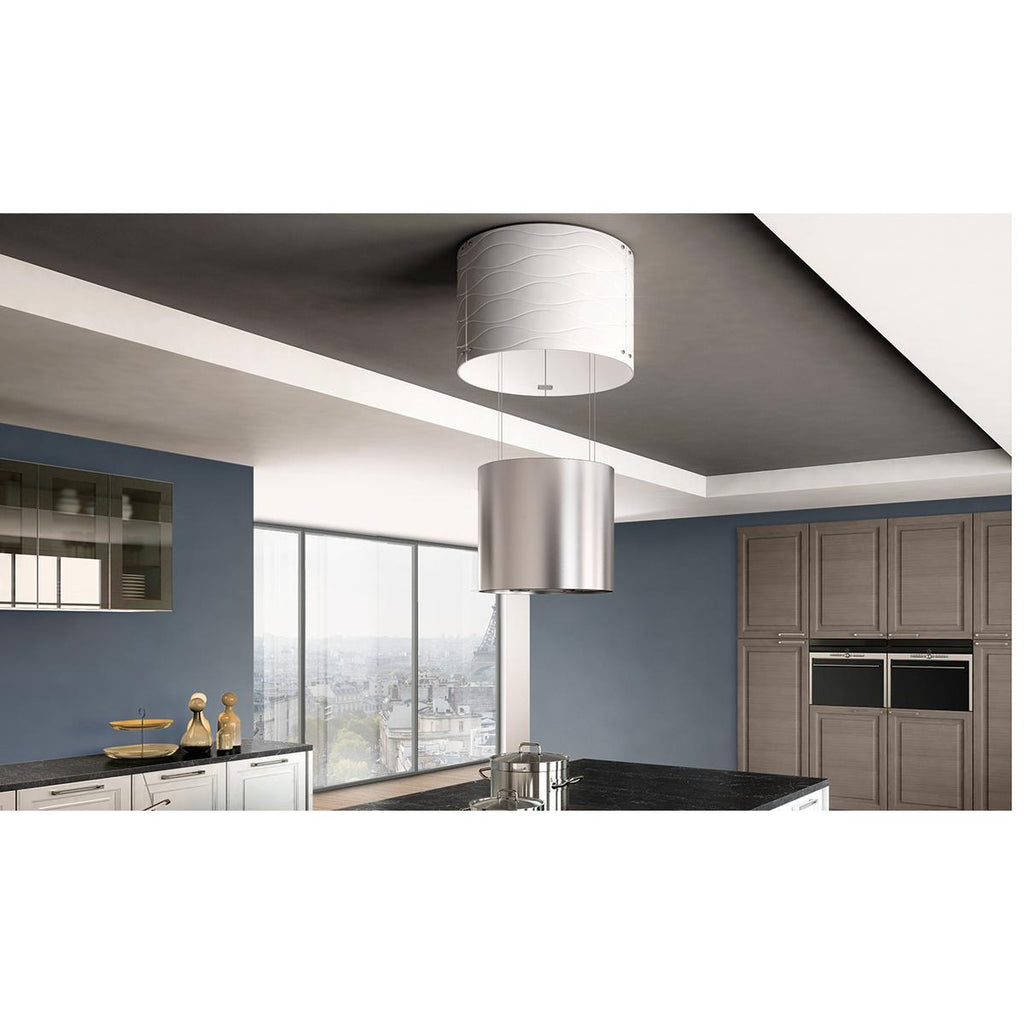

• Vanilla white glass shade: VANILLA-SH

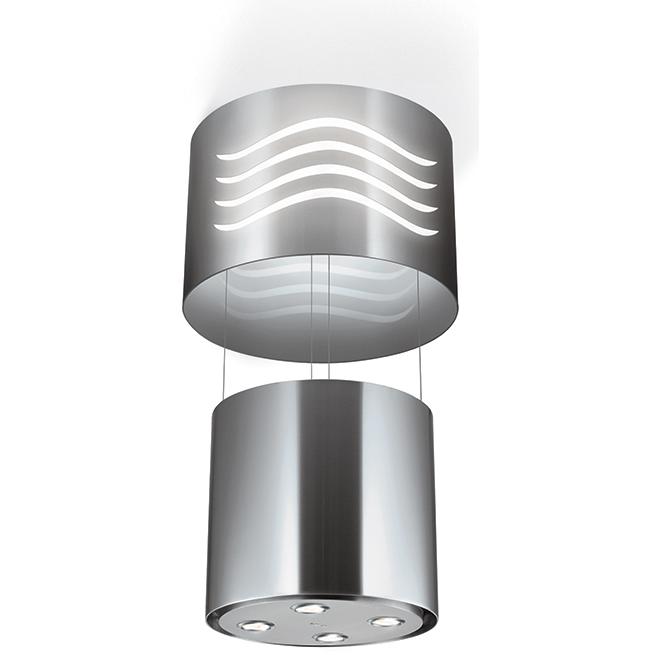

• Oceana stainless steel lamp shade: OCEANA-SH
• Separate wired light fixture with 6 LED lights
• Charcoal filter kit: FILTER1
• Long lasting charcoal filter kit: FILTER1LL
• Oceana stainless steel lamp shade: OCEANA-SH
• Separate wired light fixture with 6 LED lights
• Charcoal filter kit: FILTER1
• Long lasting charcoal filter kit: FILTER1LL
Dimensions
Class Width
20" or Less
Width
16.13 inch(es) / 40.96 cm
Height
16.94 inch(es) / 43.02 cm
Depth
16.13 inch(es) / 40.96 cm
Additional Dimensions
• Min. / Max ceiling height: 7' min - 9' max
• Maximum Zoom movement: 34"
• Maximum Zoom movement: 34"
Warranty
Warranty
Limited 2 Years
UPC
UPC#
7612981748883
