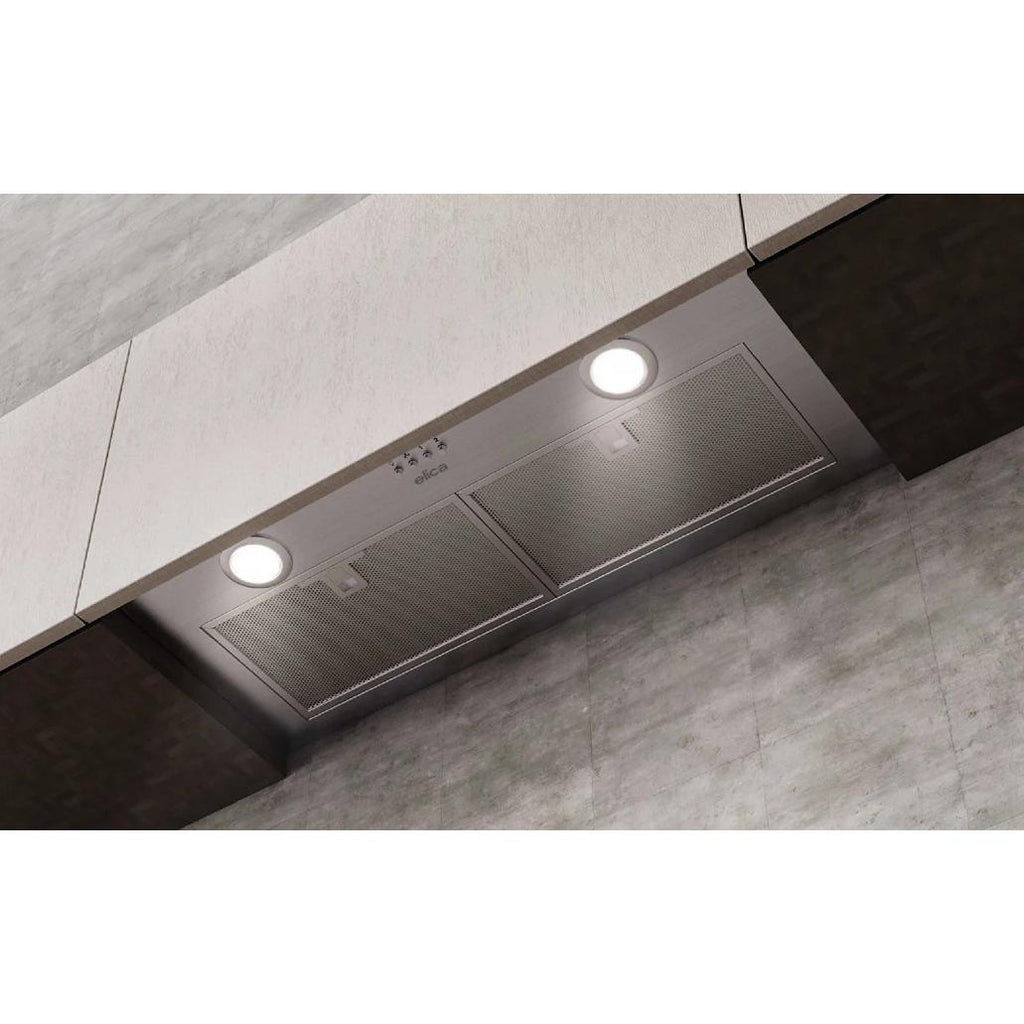

Elica 30-inch Asti 30 Series Hood Insert EAS430S1 IMAGE 1

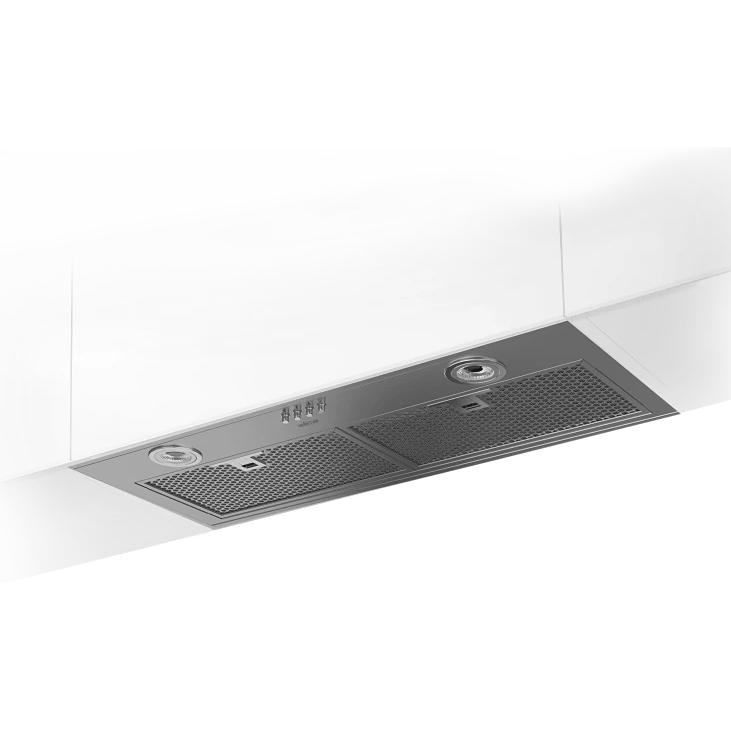

Elica 30-inch Asti 30 Series Hood Insert EAS430S1 IMAGE 2
Roll over image to zoom in Click on image to zoom
Elica 30-inch Asti 30 Series Hood Insert EAS430S1 IMAGE 1
Elica 30-inch Asti 30 Series Hood Insert EAS430S1 IMAGE 2

Elica 30-inch Asti 30 Series Hood Insert EAS430S1

ElicaSKU: EAS430S1
Asti 30 is designed for discreet mounting inside cabinetry, fits perfectly into 12” deep cabinetry, and is ideal for kitchens... Asti 30 is designed for discreet mounting inside cabinetry, fits perfectly into 12” deep cabinetry, and is ideal for kitchens where space is limited or the range hood needs to be out of sight. Asti 30 comes equipped with a powerful 400 CFM blower that can handle most cooking needs. Convenient mechanical push button controls operate the 3-speed blower and LED lighting, while dishwasher-safe anodized aluminum mesh filters covered by a stainless steel protective layer, offer easy maintenance. Asti 30 is designed for standard ducted or recirculating installation, now with a snap system that make it safer and easier to install. View more
Specifications Documents
Specifications
General
Series Name
Asti 30
Blower Included
Yes
Airflow
400 CFM
Style
Custom Insert
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Features
Ducting Information
6" Round
Speeds
3 Speeds
Additional Information
• Noise (Min-max sones): 0.3-5.0 Sones
• Illumination: 2 LED, 6.5W, 3000K 235 Lumen
• Controls: Mechanical push buttons
• Dishwasher-Safe, Anodized Stainless Steel mesh
Electrical Information
Information
• 120 V
• 60 Hz
• 260 W
Accessories
Optional
• Recirculating kit KIT02770 (contains 2 carbon filters)
• Electronic CFM Reduction Bypass KIT0175561 (achieves <300 CFM)
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
9.5 inch(es) / 24.13 cm
Depth
12 inch(es) / 30.48 cm
Warranty
Warranty
2 Years Parts and Labor
Documents
Product Specifications
Dimensions Sheet
