Elica 36-inch Lugano Series Wall Mount Range Hood ELG636S2 IMAGE 1
Roll over image to zoom in Click on image to zoom
Elica 36-inch Lugano Series Wall Mount Range Hood ELG636S2 IMAGE 1

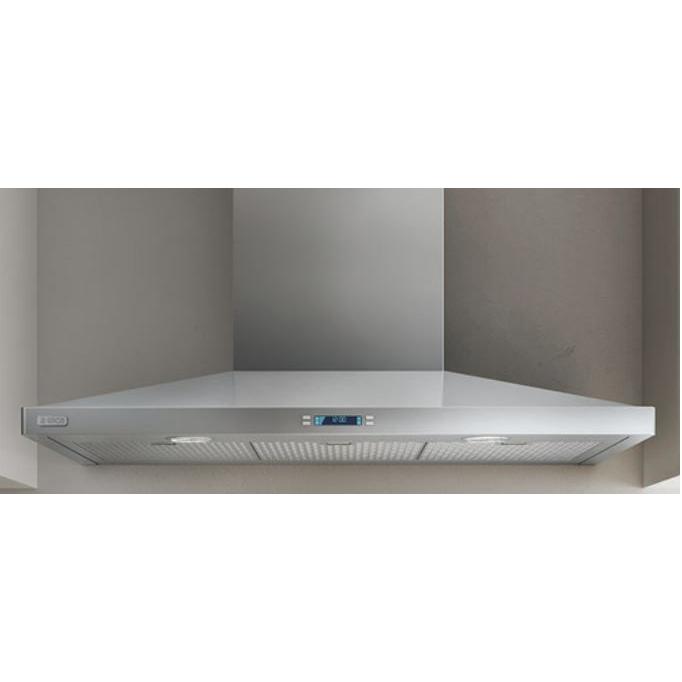

Elica 36-inch Lugano Series Wall Mount Range Hood ELG636S2

Elica Model: ELG636S2
The Lugano 36-inch wall-mounted range hood features multi-function electronic touch controls with LCD display, a 600 CFM motor with 4... The Lugano 36-inch wall-mounted range hood features multi-function electronic touch controls with LCD display, a 600 CFM motor with 4 speeds and halogen lighting. View more
Features Specifications Documents
Features
HALOGEN LAMPS
Halogen lamps
HALOGEN LAMPS
MULTI-FUNCTION ELECTRONIC CONTROLS WITH LCD DISPLAY
Multi-function electronic controls with LCD display
MULTI-FUNCTION ELECTRONIC CONTROLS WITH LCD DISPLAY
STAINLESS STEEL MICRO HOLE FILTERS
Stainless steel micro hole filters
STAINLESS STEEL MICRO HOLE FILTERS
ELICA HEAT GUARD
Elica Heat Guard: A technology that protects the hood and cabinetry from excessive heat, by sensing extreme temperatures and automatically adjusting blower speeds accordingly.
ELICA HEAT GUARD
ELICA CRS
Elica CRS: CFM Reduction System (CRS), is an exclusive feature to Elica hoods, which enables the installer to reduce the maximum blower CFM, to meet local code requirements.
ELICA CRS
Specifications
General
Series Name
Lugano
Blower Included
Yes
Airflow
600 CFM
Style
Chimney
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Wall Mount
Features
Dishwasher-Proof Filters
Yes
Ducting Information
6" Round with Back Draft Damper (Top)
Speeds
• Speed 1, 160 CFM, 1.4 Sones
• Speed 2, 280 CFM, 3.2 Sones
• Speed 3, 470 CFM, 6.0 Sones
• Speed 4, 600 CFM, 8.2 Sones
Additional Information
• Halogen Lamps
• Multi-function electronic controls with LCD display
• Elica Heat Guard
• Elica CRS
• Stainless Steel Micro Hole Filters
Electrical Information
Information
• 120 V
• 60 Hz
• 4.4 A
• 530 W
Accessories
Optional
• Optional Recirculating Kit for 30" and 36" Units:
• Code: KIT02721
• Model: KIT02721

• Optional Long Chimney Extension Kit:
• Reaches 8'5" - 12'0" (Ducted)
• Reaches 8'9" - 12'4" (Recirculating)
• Code: KIT02785
• Model: EXXCEK07

• Replacement Grease Filter (1) GF04YB
• Replacement Carbon Filter (1) KIT02667
• Replacement Light Bulb (1) 2006DX
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
5 inch(es) / 12.7 cm
Depth
19.69 inch(es) / 50.01 cm
Warranty
Warranty
Limited 2 Years Parts and Labor
Documents
Installation Guide
Owners Manual
Product Specifications
Dimensions Sheet
