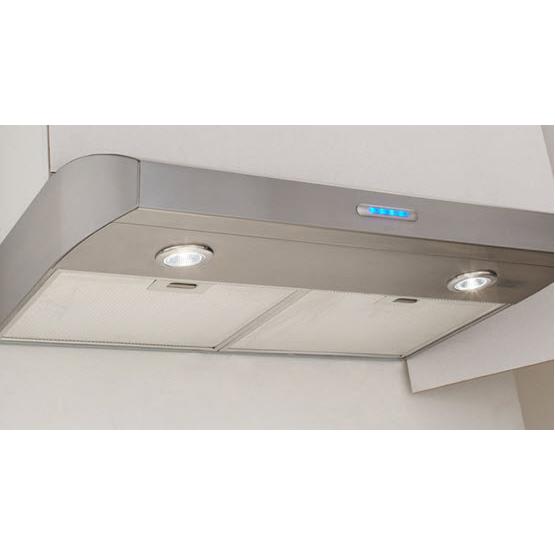

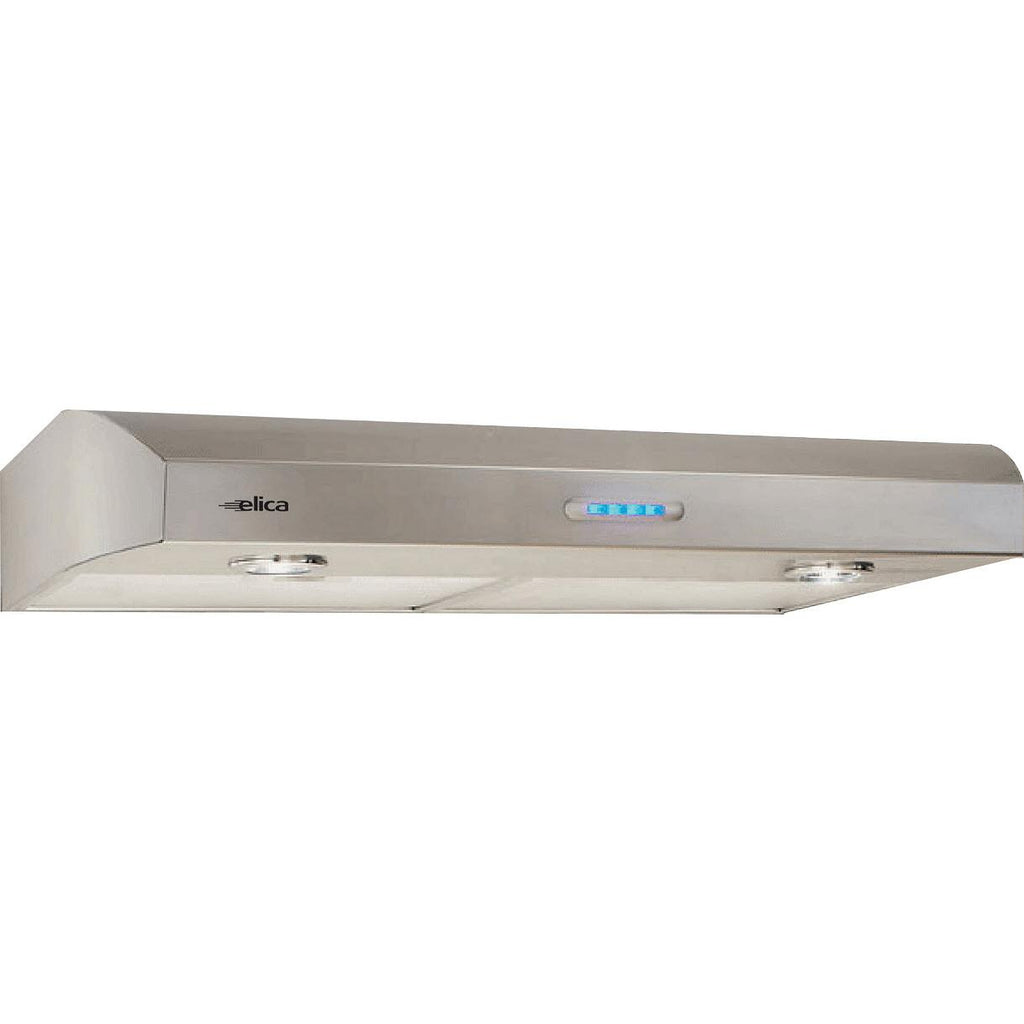

Elica 30-inch Allasio Series Under-Cabinet Hood EAL330S2

ElicaSKU: EAL330S2
The slim Allasio with 4 3/4” height is ideal where under-cabinet space is limited. Plus, the contemporary styling and gleaming... The slim Allasio with 4 3/4” height is ideal where under-cabinet space is limited. Plus, the contemporary styling and gleaming colors will complement other appliances and most cabinetry. Allasio features a 3-speed, 300 CFM internal blower, which provides sufficient ventilating power for most kitchens. The attractive, electronic push-button controls illuminate an elegant blue glow when activated and allows the user to manage blower speeds and dual halogen lamps. Dishwasher-safe anodized aluminum mesh filters are easy to clean and a snap to remove and replace. Allasio is designed for standard ducted installation and can be installed as a recirculating system, using the Recirculating Kit. View more
Specifications Documents
Specifications
General
Series Name
Allasio
Blower Included
Yes
Airflow
300 CFM
Style
Standard
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Under-Cabinet
Features
Dishwasher-Proof Filters
Yes
Ducting Information
3 1/4" x 10" with Back Draft Damper (top or rear)
Speeds
• Speed 1, 120 CFM, 1.6 Sones
• Speed 2, 210 CFM, 3.5 Sones
• Speed 3, 300 CFM, 5.0 Sones
Additional Information
• Electronic Push Button
• 2, Dishwasher-Safe, Aluminum Mesh Grease Filters
• 2, 40 Watt Halogen Lamps, 1 Light Intensity (bulbs included)
Electrical Information
Information
• 120V-60Hz
• 360 Watts at 4.3 Amps
Accessories
Optional
• Back Draft Damper, 7" Round EXXNRVRD
• Recirculating Kit CODE: KIT02178 / MODEL: EBLRCK02 (30")
• Stainless Steel Mesh Grease Filter CODE: KIT02591 / MODEL: EBLGFK30 (30")
Dimensions
Class Width
30"
Width
29.94 inch(es) / 76.04 cm
Height
4.94 inch(es) / 12.54 cm
Depth
18.62 inch(es) / 47.30 cm
Warranty
Warranty
2 Year Parts and Labor, In-Home Service
Documents
Product Specifications
Dimensions Sheet
