Features
EXCLUSIVE FOUR-PART PURE CONVECTION™ SYSTEM
In each oven cell) with fan, convection heating element (2200W), air baffle and convection filter, reduces cooking time, provides superior heat distribution, and eliminates flavor transfer.
AUTO CONNECT TO HOOD
Bluetooth® and ConnectOn auto-responsive technology activate the hood the instant the burner is turned on and adjust its intensity to match the heat of the flame.
AUTO-REIGNITION
Keep the flame alive with burners that automatically reignite if they are accidentally extinguished.
BLACK AND BRASS BURNER CAPS
With two finish styles, these burners let you express your style and create in your own way.
BRIGHTVUE INTERIOR LIGHTING
Elegant LED lights seamlessly integrated into the door and one halogen light housed in the main cavity fill the oven with rich illumination, shedding light on every sizzling subject.
DUAL-STACK SEALED BRASS BURNERS
From the ultimate power of 22k BTUs to the precision of a delicate 77k BTU controlled simmer, this is truly a range with range.
ELECTRIC GRIDDLE
Comfort foods feel right at home on the integrated, scratch-resistant cast-aluminum griddle, which is coated with a nonstick surface.

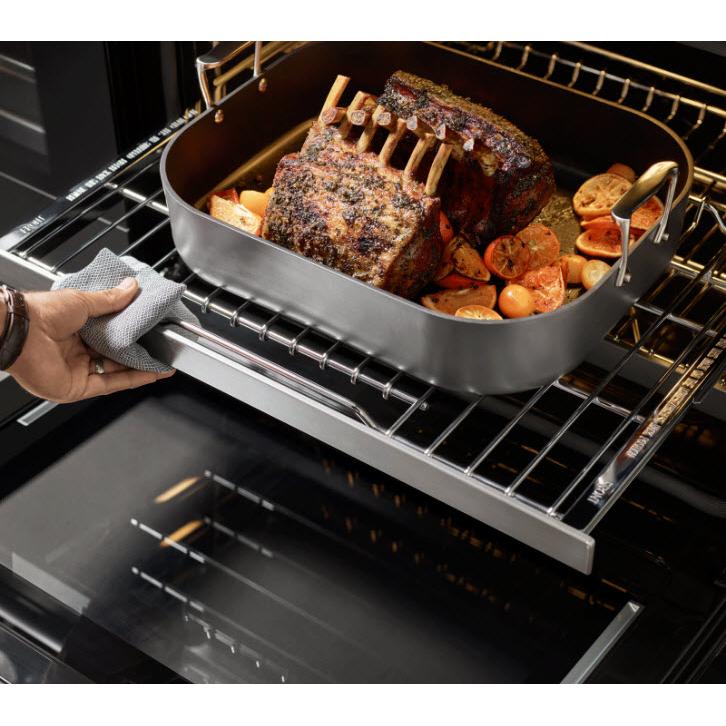

GLIDERACKS™
Fully extend out of the oven using a smooth gliding ball bearing system. Equipped with a convenient handle in front for moving heavier dishes in and out of the oven easily.
GREENCLEAN™
Steam cleaning technology cleans light built-up in 30 minutes without the use of high heat or harsh chemicals.
SOFTSHUT™ HINGES
SoftShut™ Hinges pull the door softly closed to prevent slamming.
STEAM-ROASTING AND STEAM-BAKING
For meats that are juicy on the inside, yet brown and crispy on the outside, and bread that is fluffy and moist on the inside, yet flaky on the outside.

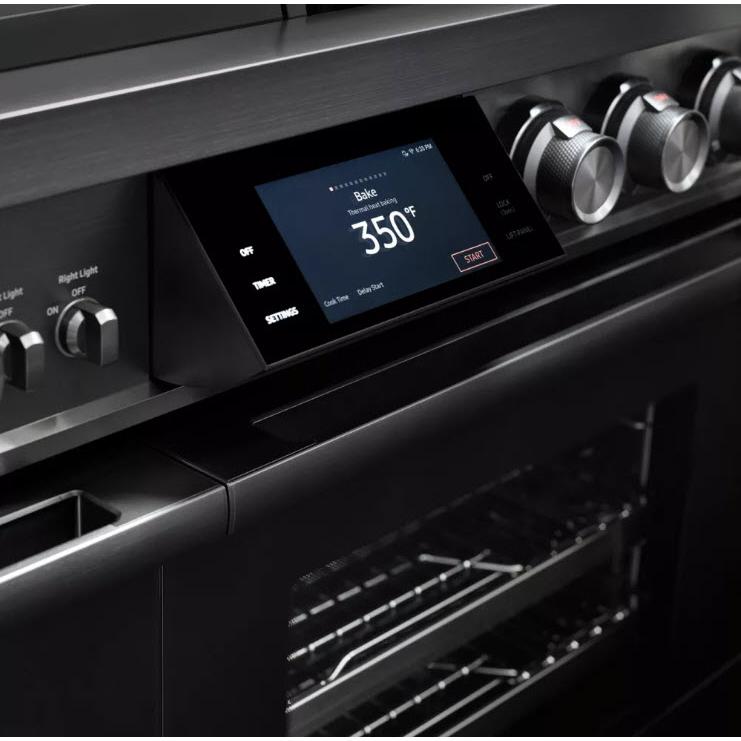

WI-FI-ENABLED SEVEN-INCH LCD CONTROL PANEL
The touch interface serves as your culinary command center, allowing you to effortlessly swipe through cooking functions, access pre-programmed settings and follow step-by-step recipes.
IQ REMOTE VIEW AND MONITORING FROM YOUR PHONE
From setting temperatures and timers to adjusting levels and lighting, with Wi-Fi-Enabled Smart iQ Control and the Dacor iQ Kitchen Connect app on your smartphone you hold the power to control your kitchen in the palm of your hand.
Specifications
General
Series Name
Modernist
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Freestanding
Color
Black
Manufacturer Color
Graphite Stainless Steel
Appliance Care
• Self Clean (Primary)
• GreenClean™ (Both Ovens)
• GreenClean™ (Both Ovens)
Cooktop
Burners/Elements
7
Burners/Elements Output
• Left Front (BTU): 18,000 Dual (Simmer)
• Left Rear (BTU): 16,000 Stack Dual (Simmer)
• Center Front (BTU): 22,000 Dual (Simmer)
• Center Rear (BTU): 9,000 Stack Dual (Simmer)
• Right Front (BTU): 16,000 Stack Dual (Simmer)
• Right Rear (BTU): 16,000 Stack Dual (Simmer)
• Griddle: 1,400 W
• Left Rear (BTU): 16,000 Stack Dual (Simmer)
• Center Front (BTU): 22,000 Dual (Simmer)
• Center Rear (BTU): 9,000 Stack Dual (Simmer)
• Right Front (BTU): 16,000 Stack Dual (Simmer)
• Right Rear (BTU): 16,000 Stack Dual (Simmer)
• Griddle: 1,400 W
Burners
Sealed
Other
Griddle
Oven
Capacity (cu. ft.)
• Large Oven: 4.8 cu. ft.
• Small Oven: 1.8 cu. ft.
• Total Capacity: 6.6 cu. ft.
• Small Oven: 1.8 cu. ft.
• Total Capacity: 6.6 cu. ft.
Number of Ovens
Double
Programs
• Large Cavity: Bake, Broil, Convection Bake, Convection Roast, Convection Broil, Four Part Pure Convection, Pure Convection Sear
• Small Cavity: Bake, Broil, Convection Bake, Convection Roast, Convection Broil, Four-Part Pure Convection, Real Steam, Steam Bake, Steam Roast
• Small Cavity: Bake, Broil, Convection Bake, Convection Roast, Convection Broil, Four-Part Pure Convection, Real Steam, Steam Bake, Steam Roast
Features
Technologies
• Perma-Flame™ (Auto Re-Ignition)
• InfoCenter™ Display
• Bluetooth (Hood Connection)
• Illumina™ Burner Knobs
• Dacor iQ Kitchen
• Auto connect to hood
• 6 Dual-Stack Sealed Burners and Electric Griddle
• Four-Part Dual Pure Convection
• Real Steam™
• InfoCenter™ Display
• Bluetooth (Hood Connection)
• Illumina™ Burner Knobs
• Dacor iQ Kitchen
• Auto connect to hood
• 6 Dual-Stack Sealed Burners and Electric Griddle
• Four-Part Dual Pure Convection
• Real Steam™
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• Bake Element: 3,000W - 8 pass (lg), 1,000W (sm)
• Broil Element: 4,400W - 10 pass (lg), 2,400W (sm)
• Convection Element: 1,300W x 2, 2,600W total (lg) /2,000W (sm)
• Steam Heater: 2,000W (sm)
• Ambient Lighting
• Time of Day (12 Hr/24 Hr)
• Sound On/Off
• 7" LCD Control Panel
• Broil Element: 4,400W - 10 pass (lg), 2,400W (sm)
• Convection Element: 1,300W x 2, 2,600W total (lg) /2,000W (sm)
• Steam Heater: 2,000W (sm)
• Ambient Lighting
• Time of Day (12 Hr/24 Hr)
• Sound On/Off
• 7" LCD Control Panel
Electrical Information
Information
• 240 V / 208 V
• 60 Hz
• 50 A
• 60 Hz
• 50 A
Accessories
Included
• GlideRack™: 2 (lg)
• Standard Rack: 1 (lg) / 1 (sm)
• Temperature Probe: 1 ea (both)
• Wok Ring
• Convection Filter: 2 (lg) / 1 (sm)
• Steam Tray: 2 (sm)
• Half Steam Tray: 2 (sm)
• Brass Burner Caps
• Black Burner Caps
• Standard Rack: 1 (lg) / 1 (sm)
• Temperature Probe: 1 ea (both)
• Wok Ring
• Convection Filter: 2 (lg) / 1 (sm)
• Steam Tray: 2 (sm)
• Half Steam Tray: 2 (sm)
• Brass Burner Caps
• Black Burner Caps
Dimensions
Class Width
48"
Width
47.87 inch(es) / 121.6 cm
Height
36.14 inch(es) / 91.8 cm
Depth (Without Handles)
27.52 inch(es) / 69.9 cm
Depth (Including Handles)
28.11 inch(es) / 71.4 cm
Additional Dimensions
Required Cutout Size (W x D) (in.): 48" x 24"
Warranty
Warranty
Limited 1 year parts and labor
UPC
UPC#
847364019619
