Features

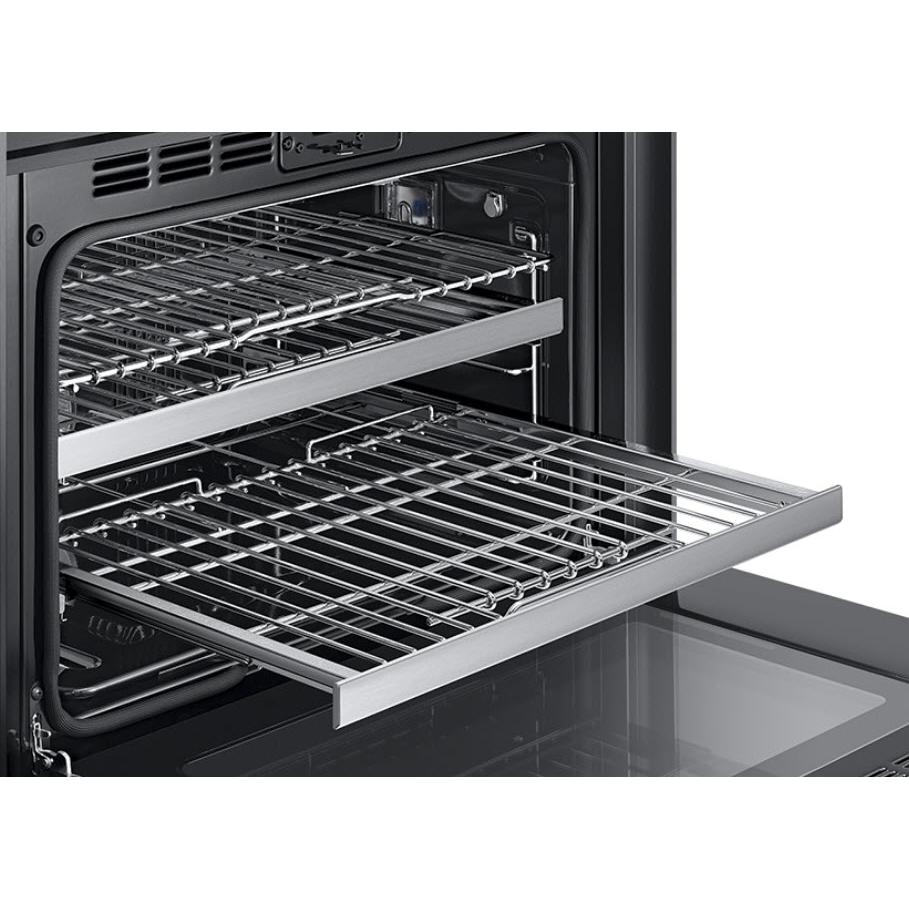

2 GLIDERACKS™
2 GlideRacks™ and 1 Chrome rack in each oven cell. GlideRacks fully extend out of the oven using a smooth gliding ball bearing system for moving heavier dishes in and out of the oven easily. GlideRacks and Chrome racks are equipped with a convenient handle in front for a secure grasp.
AUTO CONNECT TO HOOD
Bluetooth® and ConnectOn auto-responsive technology activate the hood the instant the burner is turned on and adjust its intensity to match the heat of the flame.
ILLUMINA™ BURNER CONTROLS™
Illumina™ Burner Controls™, with ProGrip™ design and stainless finish, glow Dacor's signature flame-blue to always let you know when a burner is on.
SELF-CLEANING OVEN
Cell makes clean up a breeze.
POWERFUL DOUBLE CERAMIC INFRARED BROILER
Even browning and powerful searing with 18,000 BTU double broiler in a commercial capacity oven.
AUTOMATICALLY TILTING, 7" SMOOTH TOUCH GLASS PANEL
Automatically tilting, 7" smooth touch glass panel provides a full-touch culinary command center for pre-programmed settings and step-by-step recipes. Control oven entirely through digitized touch control panel capable of adjusting temperature in 5 ºF increments.
DUAL-VALVE PRECISION
High resolution precise burner control is achieved through brass dual-valving.
DUAL THREE-PART PURE CONVECTION
Superior consistency with Dual 3-Part Pure Convection. Reduce cooking time by distributing heat evenly across the entire oven.

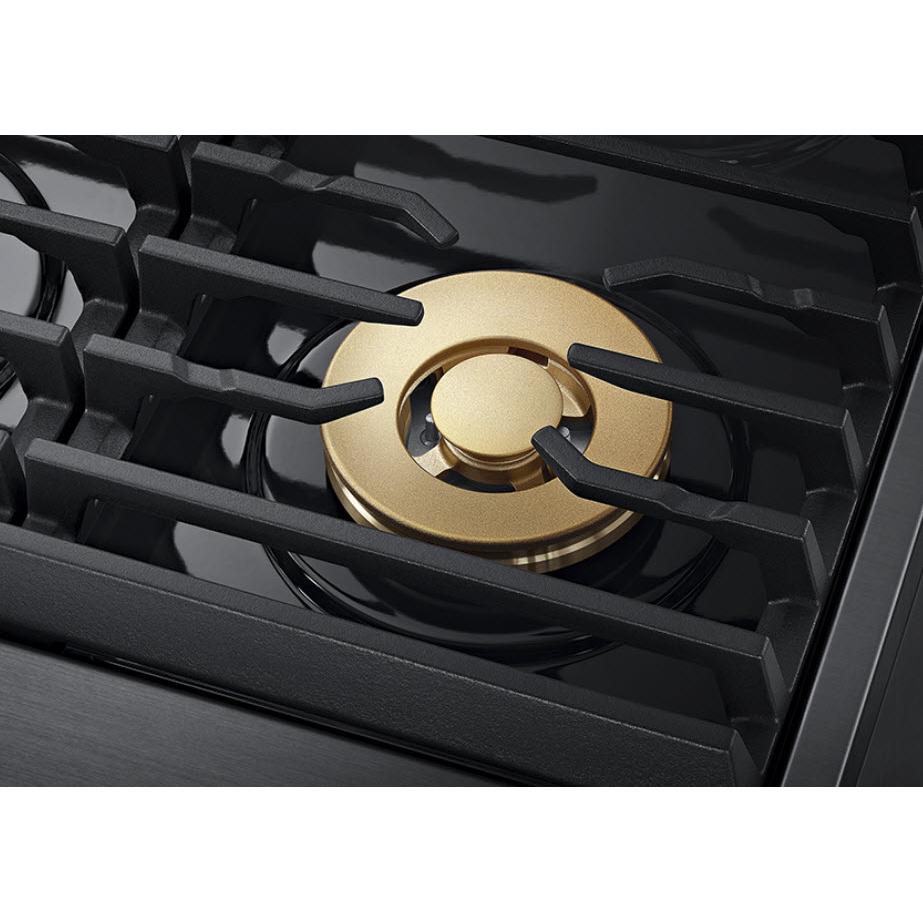

SIMMERSEAR BURNERS
Quickly boil water with 22K BTU of power or maintain a gentle simmer at 750 BTU with the all brass, Dual Valve, Dual Ring Burner.
SMARTTHINGS INTEGRATION
Seamlessly integrate into the SmartThings connected platform, providing an exceptional foundation for an ever growing ecosystem of smart connectivity. Preheat, check the oven temperature, the cooking status and remaining time, all from the comfort of your smartphone.
CHEF MODE
Receive expert cooking advice straight from the 7" screen, guiding the user on the optimum rack setting, temperatures and timing.
GREENCLEAN™
Steam cleaning technology cleans light built-up in 30 minutes without the use of high heat or harsh chemicals.
Specifications
General
Series Name
Modernist Collection
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
GreenClean: A faster, safer, better way to clean. Cleans with the versatile power of built-in steam capabilities, rather than extreme heat or harsh chemicals
Cooktop
Burners/Elements
6
Burners/Elements Output
• Left Front: 22,000 BTU
• Left Rear: 18,000 BTU
• Center Front: 18,000 BTU
• Center Rear: 18,000 BTU
• Right Front: 22,000 BTU
• Right Rear: 18,000 BTU
• Left Rear: 18,000 BTU
• Center Front: 18,000 BTU
• Center Rear: 18,000 BTU
• Right Front: 22,000 BTU
• Right Rear: 18,000 BTU
Burners
Sealed
Other
Griddle
Oven
Capacity (cu. ft.)
5.4 cu.ft.
Number of Ovens
Single
Programs
• Convection Bake
• Convection Roast
• Broil
• Convection Broil
• Pro Convection
• Keep Warm
• Proof
• Stone Mode
• Dehydrate
• Sabbath
• Convection Roast
• Broil
• Convection Broil
• Pro Convection
• Keep Warm
• Proof
• Stone Mode
• Dehydrate
• Sabbath
Features
Technologies
• Three-Part Convection System
• Illumina™ Knobs
• Dacor iQ Kitchen App
• Wi-Fi Connect
• Perma-Flame™
• Illumina™ Knobs
• Dacor iQ Kitchen App
• Wi-Fi Connect
• Perma-Flame™
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• Bake Element: 25,000 BTU
• Broil Element: 18,000 BTU
• Brass Burner Caps
• Black Burner Caps
• Double Ceramic Infrared Broiler
• Dual-valve Precision
• Automatically Tilting, 7" Smooth Touch Glass Panel
• 6 Rack Positions
• Broil Element: 18,000 BTU
• Brass Burner Caps
• Black Burner Caps
• Double Ceramic Infrared Broiler
• Dual-valve Precision
• Automatically Tilting, 7" Smooth Touch Glass Panel
• 6 Rack Positions
Electrical Information
Information
• 120 V
• 60 Hz
• 20 A
• 60 Hz
• 20 A
Certifications and Approvals
Sabbath/Star-K
Yes
Accessories
Included
• 2 GlideRack™
• 1 Standard Racks
• 1 Temperature Probe
• 1 Wok Ring
• 2 Convection Filter
• 1 Standard Racks
• 1 Temperature Probe
• 1 Wok Ring
• 2 Convection Filter
Optional
• ACS303 Cookie Sheets (Set of 3)
• AMGR Glide Rack
• AORPVR Roasting Pan with V-Rack
• AWRM Modernist Wok Ring
• AMGR Glide Rack
• AORPVR Roasting Pan with V-Rack
• AWRM Modernist Wok Ring
Dimensions
Class Width
36"
Width
35.87 inch(es) / 91.1 cm
Height
36.54 inch(es) / 92.8 cm
Depth (Without Handles)
29.02 inch(es) / 73.7 cm
Depth (Including Handles)
29.65 inch(es) / 75.3 cm
Additional Dimensions
Required Cutout Size (W x D): 36" X 24"
Warranty
Warranty
Limited 2 Years Parts and Labor
