Features
FLEX ZONE™
Flex Zone™ is a large open area that offers greater flexibility for cookign multiple dishes at one time. Easily accommodates various cookware sizes.

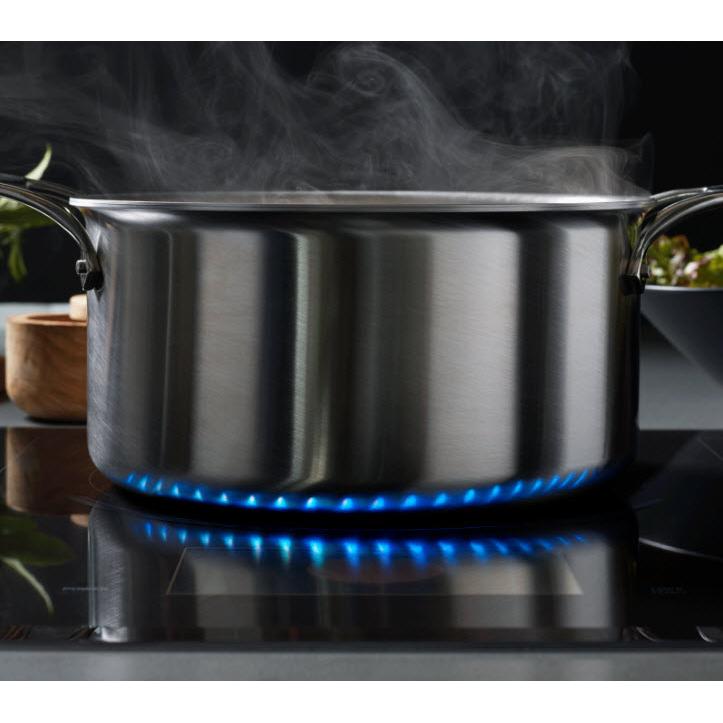

VIRTUAL FLAME™
Vertual Flame™ is a beautiful and intuitive LED light that displays virtual flames to provide an attractive visual cue when the heat is on.

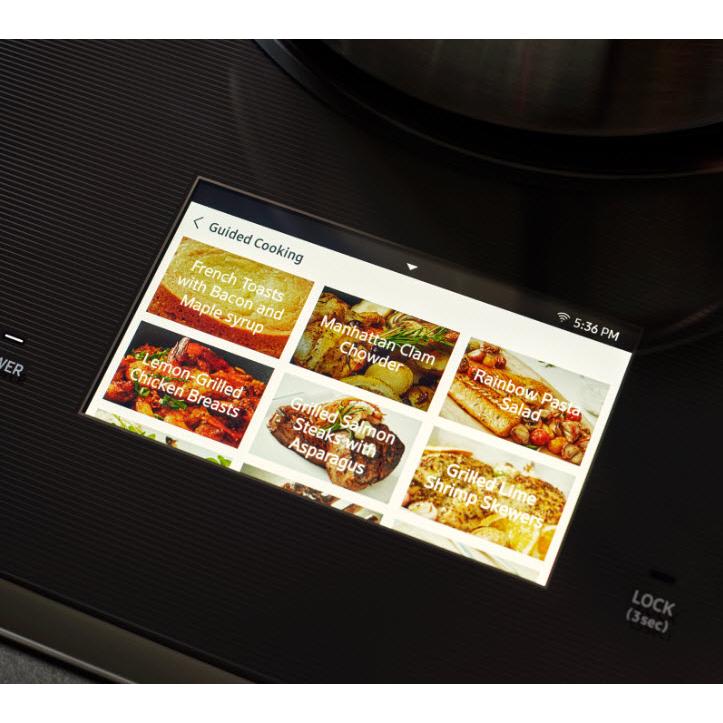

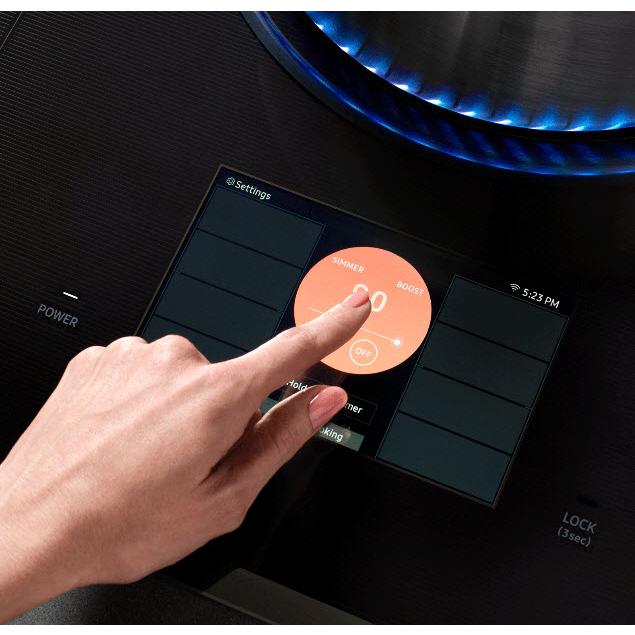

LCD CONTROL PANEL
LCD control panel allows easy access to cooktop functions, including pre-programmed recipes.
Specifications
General
Series Name
Modernist
Color
Black
Manufacturer Color
Black
Fuel Type
Electric Induction
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Flex Zone Left Front (W): 1800 / 2600 (B)
• Flex Zone Left Rear (W): 1800 / 2600 (B)
• Power Coil Center (W): 3600 / 4800 (B)
• Flex Zone Right Front (W): 1800 / 2600 (B)
• Flex Zone Right Rear (W): 1800 / 2600 (B)
• Flex Zone Left Rear (W): 1800 / 2600 (B)
• Power Coil Center (W): 3600 / 4800 (B)
• Flex Zone Right Front (W): 1800 / 2600 (B)
• Flex Zone Right Rear (W): 1800 / 2600 (B)
Burner/Element Size
• Flex Zone Left: 8 1/5"W x 15 6/25"D
• Flex Zone Right: 8 1/5"W x 15 6/25"D
• Center Heating Element: 7"/11" Power Coil™ (VF)
• Flex Zone Right: 8 1/5"W x 15 6/25"D
• Center Heating Element: 7"/11" Power Coil™ (VF)
Elements
Smoothtop
Surface Features
Black Glass
Features
Technologies
• Dacor iQ Kitchen App
• Smart Connectivity
• Flex Zone™
• Virtual Flame™
• Smart Connectivity
• Flex Zone™
• Virtual Flame™
Wi-Fi
Yes
Clock
Yes
Control Lock
Yes
Digital Display
Yes
Downdraft Ventilation
No
Additional Information
• Auto Pan Detection
• Sound On/Off
• Demo Mode
• Bluetooth Connect
• Kitchen Timer
• Guided Cooking: 15 Ea
• Recommended Power Level
• Pause
• Power Level Setting: 9 + Power Boost
• Quick Stop
• Simmer/Melt
• Power On/Off
• Zones with Booster: 7
• LCD Control Panel
• Residual Heat Reminder
• Up to 9 Cooking Zones
• Sound On/Off
• Demo Mode
• Bluetooth Connect
• Kitchen Timer
• Guided Cooking: 15 Ea
• Recommended Power Level
• Pause
• Power Level Setting: 9 + Power Boost
• Quick Stop
• Simmer/Melt
• Power On/Off
• Zones with Booster: 7
• LCD Control Panel
• Residual Heat Reminder
• Up to 9 Cooking Zones
Electrical Information
Information
• 240 V / 208 V
• 60 Hz
• 45 A
• 60 Hz
• 45 A
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
4 inch(es) / 10.16 cm
Depth
21.25 inch(es) / 53.98 cm
Additional Dimensions
• Appliance Dimensions (H x W x D) (in.): 4" x 36" x 21 1/4"
• Required Cutout Size (H x W x D) (in.): 3 3/4" x 33 3/4" x 19"
• Minimum Distance from Counter Front (in.): 1 1/2"
• Minimum Distance from Rear Wall (in.): 1 1/7"
• Required Cutout Size (H x W x D) (in.): 3 3/4" x 33 3/4" x 19"
• Minimum Distance from Counter Front (in.): 1 1/2"
• Minimum Distance from Rear Wall (in.): 1 1/7"
Warranty
Warranty
1 Year Parts and Labor
UPC
UPC#
847364019480
