Features

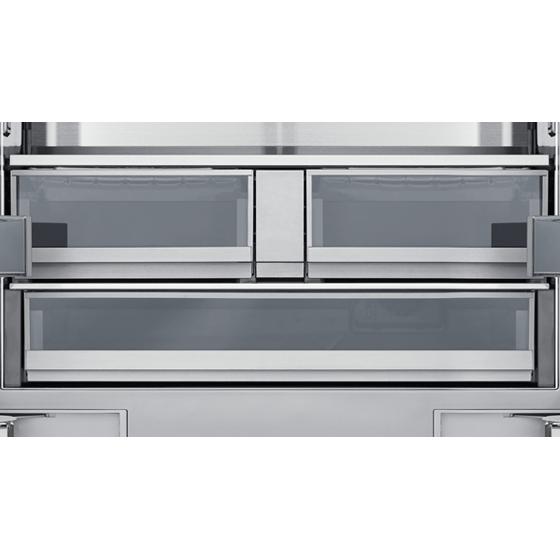

FRESHZONE™ DRAWER
Full-width storage drawer provides optimal temperature control for storing everything from meat and fish, chilled drinks or deli. Adjustable temperature settings includes the option of safely defrosting items within a controlled space.
INTERNAL WATER DISPENSER
For easy access to clean, filtered water.

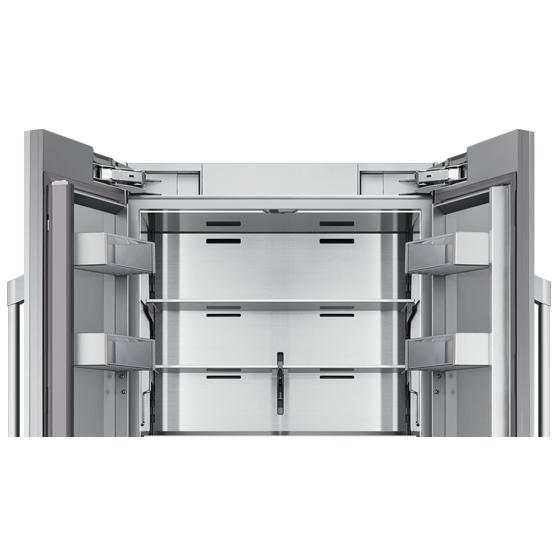

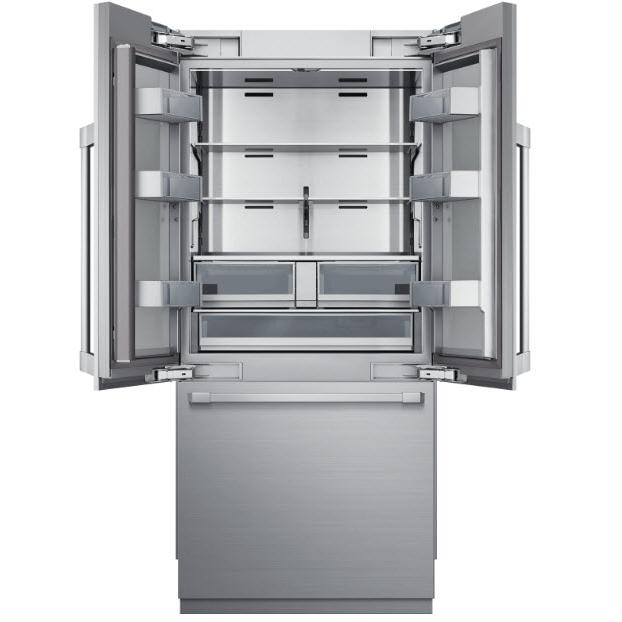

STEELCOOL INTERIOR WITH 3D LIGHTING
With a stunning all stainless steel interior, elegant glass accents and full-length 3DLighting that can adjust brightness based on conditions in the room, food is no longer just stored, it's presented.
SPACEMAX EXTRA-LARGE CAPACITY
Utilizing cutting edge insulation, Dacor's industry-leading SpaceMax technology, offer maximum storage capacity without sacrificing exterior style.
DEDICATED COMPRESSOR AND EVAPORATOR FOR EACH COLUMN
A dedicated compressor and evaporator for each of the refrigerator columns minimizes dry-out effects, and optimizes humidity to keep foods fresher and crisper longer, while eliminating odor transfer to ensure every bite is a showstopper.

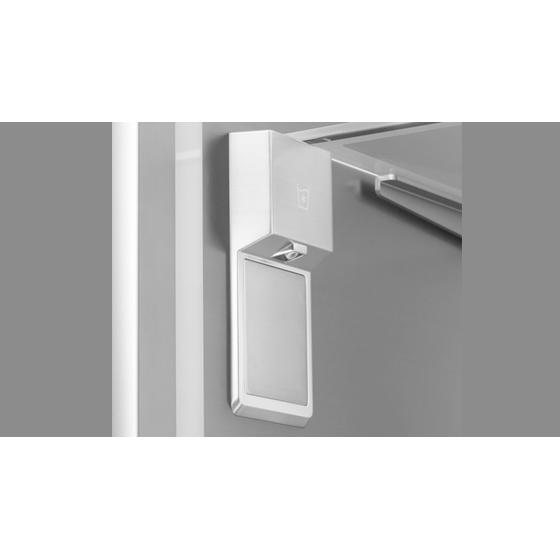

HIDDEN TOUCH CONTROL PANEL
Touch to reveal a display that regulates temperature to preserve freshness.
DUAL ICEMAKER WITH COCKTAIL ICE
One icemaker creates standard cubes. The other makes bigger, longer-lasting Cocktail Ice that's perfect for entertaining. Together they create a constant supply of ice, ensuring no drink goes unchilled.
Specifications
General
Series Name
Modernist
Refrigerator Type
French 3-Door
Installation Type
Built-In
Door Hinge
Left and Right
Color
Panel Ready
Manufacturer Color
Panel Ready
Capacity
Total
21.3 cu. ft.
Refrigerator
14.5 cu. ft.
Freezer
6.8 cu. ft.
Refrigerator Features
Technologies
• 3DLighting™
• Cocktail Ice™
• SteelCool™ Stainless Steel Interior
• FreshZone™ Drawer
• Double Cooling (2 evaporators, 1 compressor)
• Cocktail Ice™
• SteelCool™ Stainless Steel Interior
• FreshZone™ Drawer
• Double Cooling (2 evaporators, 1 compressor)
Digital Display
Yes
Door Alarm
Yes
Frost Free
Yes
Interior Light
Yes
Wi-Fi
No
Crisper Drawers
Yes
Deli Drawer/Meat
Yes
Gallon Door
Yes
Additional Information
• Deodoring Filter
• Full Width Shelves - Refrigerator 2 ea
• Adjustable Shelves - Refrigerator 2 ea
• Tempered Glass Shelves with Metal Trim
• Humidity Control Crispers 2 ea
• Door Bins - Refrigerator 6 ea
• Power Cool
• Full Width Shelves - Refrigerator 2 ea
• Adjustable Shelves - Refrigerator 2 ea
• Tempered Glass Shelves with Metal Trim
• Humidity Control Crispers 2 ea
• Door Bins - Refrigerator 6 ea
• Power Cool
Freezer Features
Additional Freezer Information
• Freezer Drawers 2 ea
• Power Freeze
• Power Freeze
Ice and Water
Ice System
Interior
Water System
Interior
Hot Water Dispenser
No
Filtration
Yes
Dispenser Features
• Dual Icemaker for Standard and Cocktail Ice™
• Internal Water Dispenser
• Internal Water Dispenser
Electrical Information
Information
• 115 V
• 60 Hz
• 6 A
• 60 Hz
• 6 A
Certifications and Approvals
Energy Star Certified
Yes
Sabbath Mode
Yes
Accessories
Optional
• Silver Stainless Steel - 36" FDR Upper Panel - Left RAF36DPULSR
• Silver Stainless Steel - 36" FDR Upper Panel - Right RAF36DPURSR
• Silver Stainless Steel - 36" FDR Bottom Panel RAF36DPBDSR
• Silver Stainless Steel - 36" Kick Plate RAC36TKBBSR
• Silver Stainless Steel - Modernist Handle RAC00MHAASR
• Silver Stainless Steel - Dacor Pro Handle RAC00PHAASR
• Water Filter RAC00WFAAAA
• Deodorizing Filter RAC00DFAAAA
• Silver Stainless Steel - 36" FDR Upper Panel - Right RAF36DPURSR
• Silver Stainless Steel - 36" FDR Bottom Panel RAF36DPBDSR
• Silver Stainless Steel - 36" Kick Plate RAC36TKBBSR
• Silver Stainless Steel - Modernist Handle RAC00MHAASR
• Silver Stainless Steel - Dacor Pro Handle RAC00PHAASR
• Water Filter RAC00WFAAAA
• Deodorizing Filter RAC00DFAAAA
Dimensions
Class Width
35" to 37.9"
Class Height
70" and More
Width
35.75 inch(es) / 90.8 cm
Height (With Hinge)
83.39 inch(es) / 211.8 cm
Depth (Without Handles)
25 inch(es) / 63.5 cm
Weight
562 lb(s) / 254.92 kg
Additional Dimensions
For more information refer to dimension manual
Warranty
Warranty
• 2 Year: Limited, Entire Appliance, Parts and Labor on Any Part of the Refrigerator
• 3rd to 6th Year: Limited Warranty for Sealed Refrigeration System; Parts and Labor
• 7th to 12th Year: Limited Warranty for Sealed Refrigeration System; Parts Only
• 3rd to 6th Year: Limited Warranty for Sealed Refrigeration System; Parts and Labor
• 7th to 12th Year: Limited Warranty for Sealed Refrigeration System; Parts Only
UPC
UPC#
847364018742
