Features
PRECISE COOLING TECHNOLOGY
Digital Inverter Technology maintains consistent performance with minimal temperature fluctuation. Digital Compressor offers superior performance compared to a standard A/C compressor.

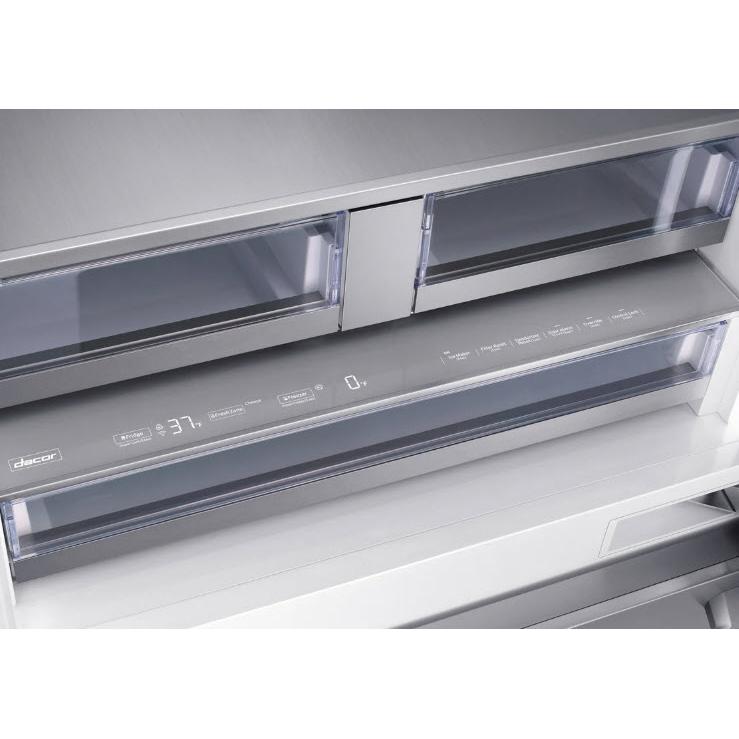

HIDDEN TOUCH CONTROL PANEL
Touch to reveal a display that regulates temperature to preserve freshness.
FRESHZONE™ DRAWER
Full-width storage drawer provides optimal temperature control for storing everything from meat and fish, chilled drinks or deli. Adjustable temperature settings includes the option of safely defrosting items within a controlled space.
DESIGN VERSATILITY
Designed to harmoniously integrate luxury conveniences with an everyday lifestyle. Every feature is created with intention to provide convenience at your fingertips with an experience second to none.
DOUBLE COOLING TECHNOLOGY
Powered by a digital inverter compressors and two evaporators to keep food fresher longer by preventing the mixture of moist refrigerator air with the dry freezer air. In addition to the variable control capability of the Digital Inverter Compressor, we are able to achieve a higher humidity in the refrigerator space.
ENERGY EFFICIENT AND ENVIRONMENTALLY FRIENDLY
Dacor uses R600a Refrigerant, which is up to 40% more efficient than traditional R134a. R600a is less harmful to the environment and will be the new EPA mandated standard starting in 2020.
SUPERIOR INSULATION TECHNOLOGY
Vacuum insulated panels and high density insulation for consistent temperature performance and best in class food preservation
Specifications
General
Refrigerator Type
French 3-Door
Installation Type
Built-In
Counter-Depth
Yes
Door Hinge
Left and Right
Color
Panel Ready
Manufacturer Color
Panel Ready
Capacity
Total
21.3 cu. ft.
Refrigerator
14.5 cu. ft.
Freezer
6.8 cu. ft.
Refrigerator Features
Technologies
• MetalCool™ Interior Illuminated by 3DLighting™
• Double Cooling Technology
• Superior Insulation Technology
• FreshZone™ Drawer
• Double Cooling Technology
• Superior Insulation Technology
• FreshZone™ Drawer
Digital Display
Yes
Door Alarm
Yes
Frost Free
Yes
Interior Light
Yes
Crisper Drawers
Yes
Deli Drawer/Meat
Yes
Additional Information
• Refrigerator: 34°F to 44°F
• Refrigerator - Power Cool: 34°F
• FreshZone™ Drawer: Cheese (37°F) / Cold Drinks (33°F) / Meat (29°F)
• Double Cooling: 2 Evaporators, 1 Compressor
• Precise Cooling
• Power Cool
• Deodorizing Filter
• 2 Full-Width Shelves Adjustable
• Tempered Glass Spill-Proof Shelves
• 2 Crisper Drawers
• 6 Door Bins
• Refrigerator - Power Cool: 34°F
• FreshZone™ Drawer: Cheese (37°F) / Cold Drinks (33°F) / Meat (29°F)
• Double Cooling: 2 Evaporators, 1 Compressor
• Precise Cooling
• Power Cool
• Deodorizing Filter
• 2 Full-Width Shelves Adjustable
• Tempered Glass Spill-Proof Shelves
• 2 Crisper Drawers
• 6 Door Bins
Freezer Features
Additional Freezer Information
• Freezer: 5°(-15°) to -8° (-23°)
• Freezer - Power Freeze: -8°(-23°)
• Defrost Process
• Freezer - Power Freeze: -8°(-23°)
• Defrost Process
Ice and Water
Ice System
Interior
Water System
Interior
Filtration
Yes
Electrical Information
Information
• 549 kWh/Year
• 115 V
• 60 Hz
• 115 V
• 60 Hz
Certifications and Approvals
Energy Star Certified
Yes
Sabbath Mode
Yes
Accessories
Optional
• French-Door Transitional Refrigerator Silver Stainless Panel Kit: Silver Stainless RAF36ACAASR
• French-Door Refrigerator Pro Panel Kit: Silver Stainless RAF36AHAASR
• French-Door Contemporary Refrigerator Graphite Panel Kit: Graphite Stainless RAF36AMAAMS
• French-Door Contemporary Refrigerator Silver Stainless Panel Kit: Silver Stainless RAF36AMAASR
• French-Door Refrigerator Epicure Panel Kit: Silver Stainless RAF36AEAASR
• Water Filter RAC00WFAAAA
• Deodorizing Filter RAC00DFAAAA
• French-Door Refrigerator Pro Panel Kit: Silver Stainless RAF36AHAASR
• French-Door Contemporary Refrigerator Graphite Panel Kit: Graphite Stainless RAF36AMAAMS
• French-Door Contemporary Refrigerator Silver Stainless Panel Kit: Silver Stainless RAF36AMAASR
• French-Door Refrigerator Epicure Panel Kit: Silver Stainless RAF36AEAASR
• Water Filter RAC00WFAAAA
• Deodorizing Filter RAC00DFAAAA
Dimensions
Class Width
35" to 37.9"
Class Height
70" and More
Width
35.75 inch(es) / 90.8 cm
Height (With Hinge)
83.39 inch(es) / 211.8 cm
Depth (Without Handles)
25 inch(es) / 63.5 cm
Additional Dimensions
Required Cutout Size (HxWxD): 84" X 36" X 25"
Warranty
Warranty
• 60-day Cosmetic
• 2-Year Full Warranty
• 6-Year Sealed System Warranty: Parts/Labor
• 12-Year Sealed System Warranty: Parts only
• 15-Year Compressor Warranty: Parts only
• 2-Year Full Warranty
• 6-Year Sealed System Warranty: Parts/Labor
• 12-Year Sealed System Warranty: Parts only
• 15-Year Compressor Warranty: Parts only
