Features

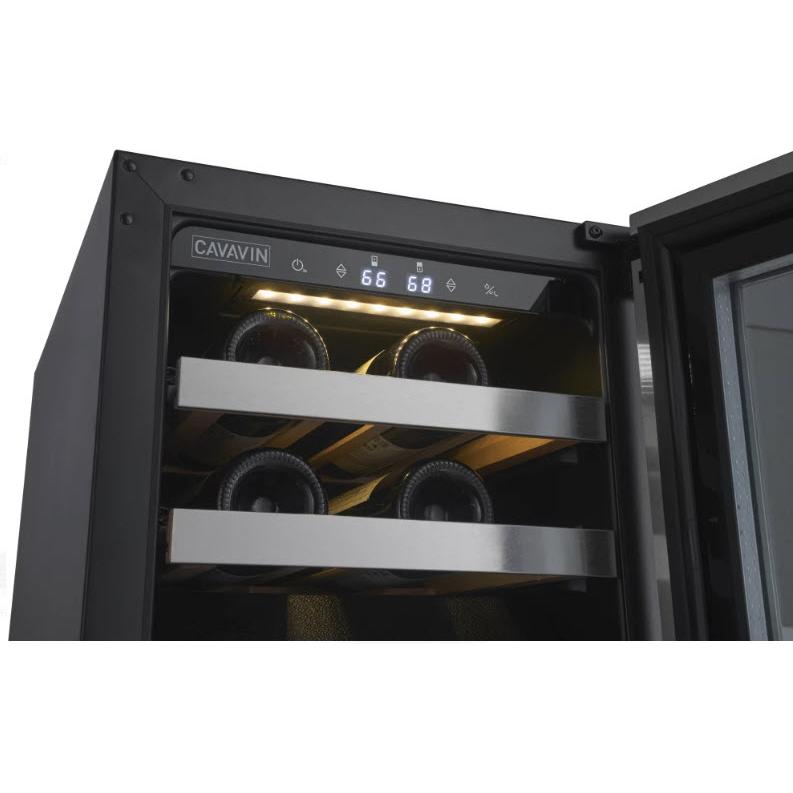

LED LIGHTING
Transition LED lighting (as door opens) with on/off switch

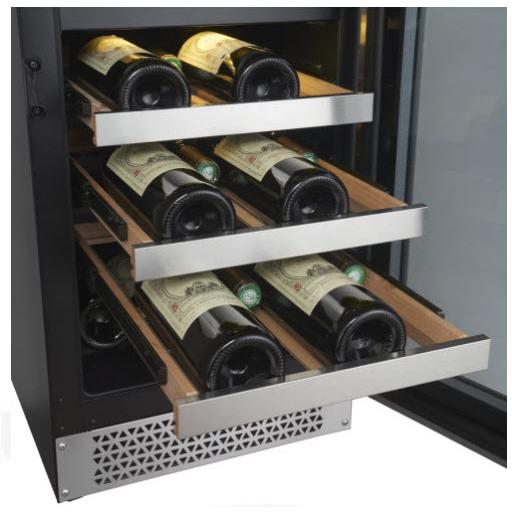

WOOD SHELVES
All wood 100% extension shelves with stainless steel trims
Specifications
General
Series Name
VINOA
Bottles
24
Number of Racks
6
Temperature Zones
2
Temperature Settings
2 Temperature zones (For red & white wines):
• Top – Whites : 5-12°C (41-54°F)
• Bottom – Reds : 12-20°C (54-68°F)
• Top – Whites : 5-12°C (41-54°F)
• Bottom – Reds : 12-20°C (54-68°F)
Installation
Freestanding
Size
Compact
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cabinet Color
Black
Hinge
Right
Features
Digital Temperature Display
Yes
Glass Door
Yes
Interior Light
Yes
Lock
Yes
Reversible Door
Yes
Additional Information
• Capacity up to 24 bottles (750 ml)
• Built-in or freestanding installation
• One-touch LED digital controls located inside the unit
• Double-pane glass door, tinted slight smoke, with anti-UV ray treatment
• Seamless stainless steel door frame
• All wood 100% extension shelves with stainless steel trims
• Security lock
• LED interior lighting with ON/OFF switch
• Automatic defrost & generated hygrometry
• Quiet compressor (42 dB)
• UL/CSA/ETL approved
• Activated charcoal filter to eliminate odors
• Built-in or freestanding installation
• One-touch LED digital controls located inside the unit
• Double-pane glass door, tinted slight smoke, with anti-UV ray treatment
• Seamless stainless steel door frame
• All wood 100% extension shelves with stainless steel trims
• Security lock
• LED interior lighting with ON/OFF switch
• Automatic defrost & generated hygrometry
• Quiet compressor (42 dB)
• UL/CSA/ETL approved
• Activated charcoal filter to eliminate odors
Electrical Information
Information
• 115 V
• 15 A
• 15 A
Certifications and Approvals
Energy Star Certified
No
Dimensions
Width
16.75 inch(es) / 42.55 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handle)
27 inch(es) / 68.58 cm
Weight
86.99 lb(s) / 39.46 kg
Shipping Dimensions
Weight
92.99 lb(s) / 42.18 kg
Warranty
Warranty
• 2-year warranty on parts and labor
• 5-year warranty on compressor
• 5-year warranty on compressor
