Features
HYBRID ALUMINUM MESH & STAINLESS STEEL BAFFLE FILTERS
Effectively capture grease and are dishwasher safe making it easier to have a cleaner, odor-free kitchen; they are backed up by a filter clean reminder signal to ensure filters can be cleaned regularly.
HEAT SENTRY™
Detects excessive heat and adjusts blower speed to high automatically to prolong product life by reducing damaging effects of high temperatures.
VARIABLE SPEED ROTARY CONTROL
Variable-speed rotary control with separate ON/OFF - for last setting memory - tested to assure operation in corrosive environments.

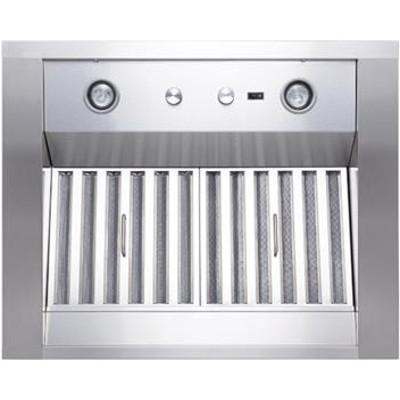

HI-FLOW™ BAFFLE FILTERS
Mesh lined Hi-Flow™ baffle filters and removable grease rail provide supreme grease capture.
HALOGEN LIGHTS
Halogen lights provide bright cooktop lightinG.
Specifications
General
Series Name
Classico
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Wall Mount
Features
Dishwasher-Proof Filters
Yes
Ducting Information
Round
Additional Information
• Brushed stainless steel
• Variable speed rotary with memory
• Heat Sentry™ turns blower ON to HIGH speed when excess heat is detected
• Stainless steel baffle filters with removable mesh element
• Hi-Flow™ baffle filters included
• Two-level, Halogen lighting (2 bulbs, GU10, MR16, 50-watt, bulbs included)

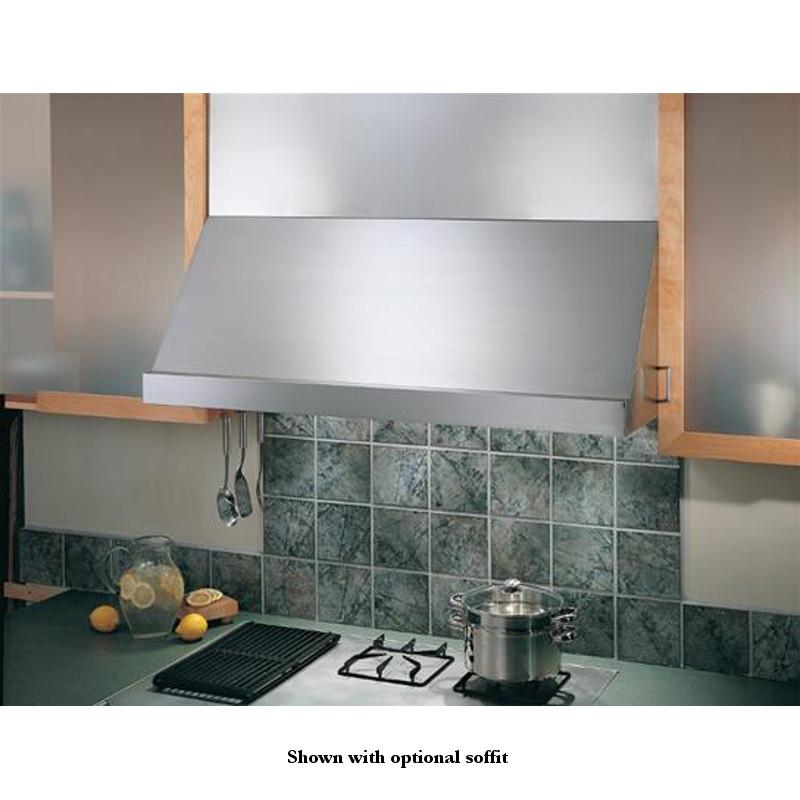

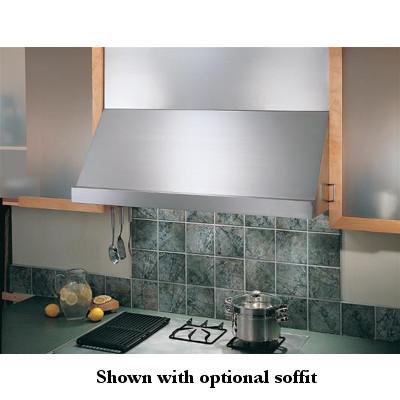

• Optional decorative 12" soffit flue (AEWP) (sold separately)
• Variable speed rotary with memory
• Heat Sentry™ turns blower ON to HIGH speed when excess heat is detected
• Stainless steel baffle filters with removable mesh element
• Hi-Flow™ baffle filters included
• Two-level, Halogen lighting (2 bulbs, GU10, MR16, 50-watt, bulbs included)
• Optional decorative 12" soffit flue (AEWP) (sold separately)
Electrical Information
Information
120 V
Accessories
Optional
• Internal - iQ6 (600 CFM), iQ12 (1200 CFM), P3 (300 CFM), P6 (600 CFM), P12 (1200 CFM)
• External In-line - ILB3 (280 CFM), ILB6 (600 CFM), ILB9 (800 CFM), ILB11 (1100 CFM)
• External Exterior - EB6: 600 CFM, EB9: 900 CFM, EB12: 1200 CFM, EB15: 1500 CFM.
• External In-line - ILB3 (280 CFM), ILB6 (600 CFM), ILB9 (800 CFM), ILB11 (1100 CFM)
• External Exterior - EB6: 600 CFM, EB9: 900 CFM, EB12: 1200 CFM, EB15: 1500 CFM.
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
18 inch(es) / 45.72 cm
Depth
24 inch(es) / 60.96 cm
Shipping Dimensions
Weight
60.01 lb(s) / 27.22 kg
Warranty
Warranty
1 year warranty parts and labor
UPC
UPC#
26715229321
