Features
4-SPEED ELECTRONIC PUSH-BUTTON CONTROLS
Along with LED display allowing you to choose just the right speed to handle what's cooking.

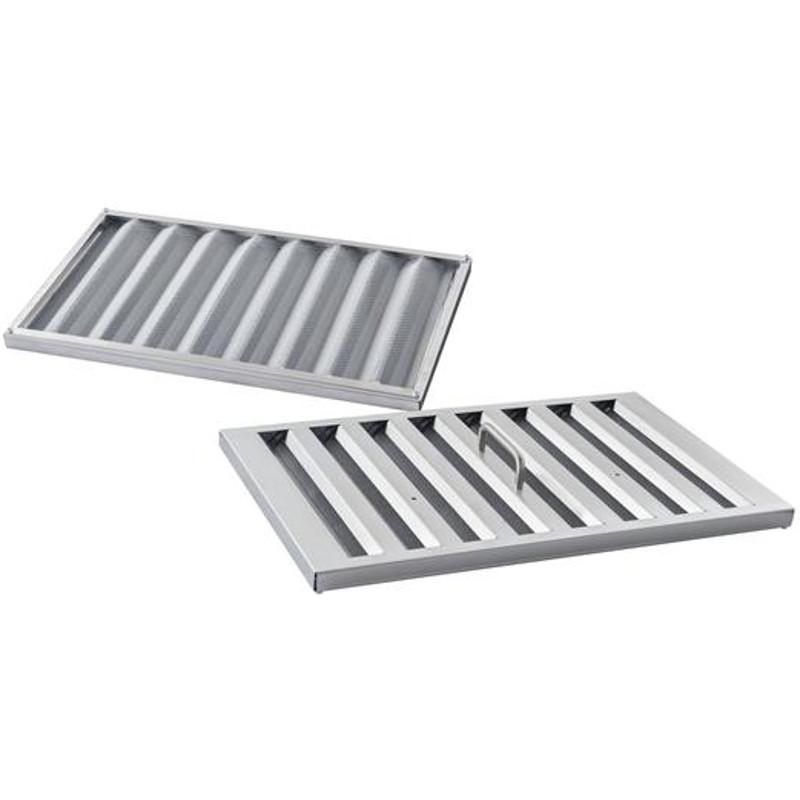

HYBRID ALUMINUM MESH & STAINLESS STEEL BAFFLE FILTERS
Effectively capture grease and are dishwasher safe making it easier to have a cleaner, odor-free kitchen; they are backed up by a filter clean reminder signal to ensure filters can be cleaned regularly.
HEAT SENTRY™
Detects excessive heat and adjusts blower speed to high automatically to prolong product life by reducing damaging effects of high temperatures.
iQ BLOWER SYSTEM
Powered by the exclusive iQ Blower System with GPS Technology (see page 62) for the quietest, most energy efficient and fastest smoke and odor
removal available in a range hood.
10-MINUTE DELAY-OFF AND FILTER CLEAN REMINDER
10-minute delay-off and filter clean reminder provide convenient operation
OPTIONAL REMOTE
Optional ACR2 remote control lets the busy cook stay in control from anywhere in the kitchen
HALOGEN LIGHTS
Halogen lights provide bright cooktop lightinG.
Specifications
General
Series Name
Celato
Blower Included
Yes
Airflow
1150 CFM
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Features
Dishwasher-Proof Filters
Yes
Ducting Information
Round
Speeds
4
Additional Information
• Exclusive iQ Blower System™
• Guaranteed performance system (GPS) technology
• Integrated calibration button to check the airflow and set up the system to run at the rated CFM
• 4-speed, electronic push-button controls with LED display
• Optional remote control (ACR2, sold separately)
• Easily accessible, dishwasher-safe, hybrid aluminum mesh & stainless steel baffle filters
• Heat Sentry™
• 10 minute delay-off feature
• Can be used with optional Universal make-up air damper MD6TU or MD8TU to replace air lost through ventilation (sold separately)
• Brushed stainless steel
• 3 Halogen lighting levels (3 x 50 Watts bulbs, GU10, bulbs included)
• 10" round duct
• 25-hour filter clean reminder
• Guaranteed performance system (GPS) technology
• Integrated calibration button to check the airflow and set up the system to run at the rated CFM
• 4-speed, electronic push-button controls with LED display
• Optional remote control (ACR2, sold separately)
• Easily accessible, dishwasher-safe, hybrid aluminum mesh & stainless steel baffle filters
• Heat Sentry™
• 10 minute delay-off feature
• Can be used with optional Universal make-up air damper MD6TU or MD8TU to replace air lost through ventilation (sold separately)
• Brushed stainless steel
• 3 Halogen lighting levels (3 x 50 Watts bulbs, GU10, bulbs included)
• 10" round duct
• 25-hour filter clean reminder
Electrical Information
Information
120 V
Certifications and Approvals
Hvi Certified
Yes
Energy Star Certified
No
Dimensions
Class Width
45"
Width
43.44 inch(es) / 110.33 cm
Height
11 inch(es) / 27.94 cm
Depth
15.44 inch(es) / 39.21 cm
Additional Dimensions
Cabinet cutout width: 41.875"
Shipping Dimensions
Weight
64.99 lb(s) / 29.48 kg
Warranty
Warranty
1 year warranty parts and labor
UPC
UPC#
26715209026
