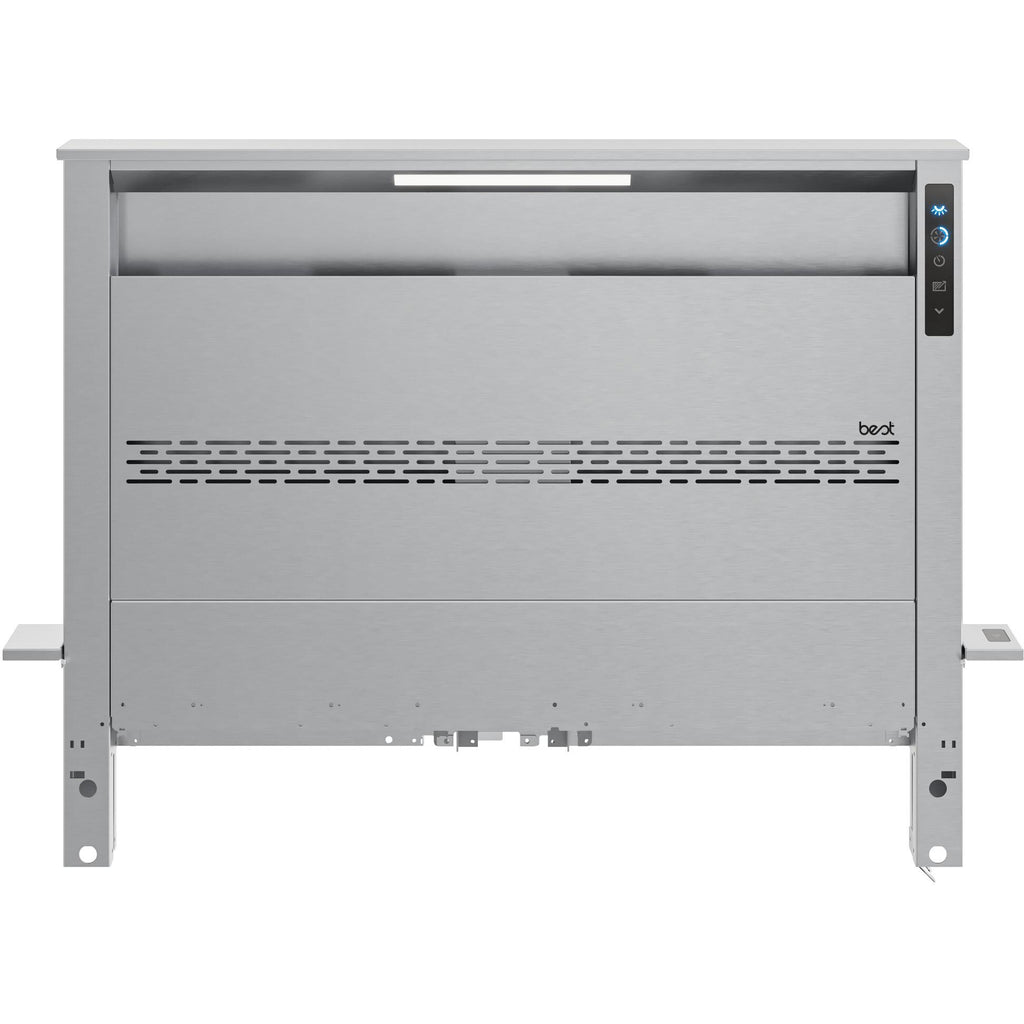

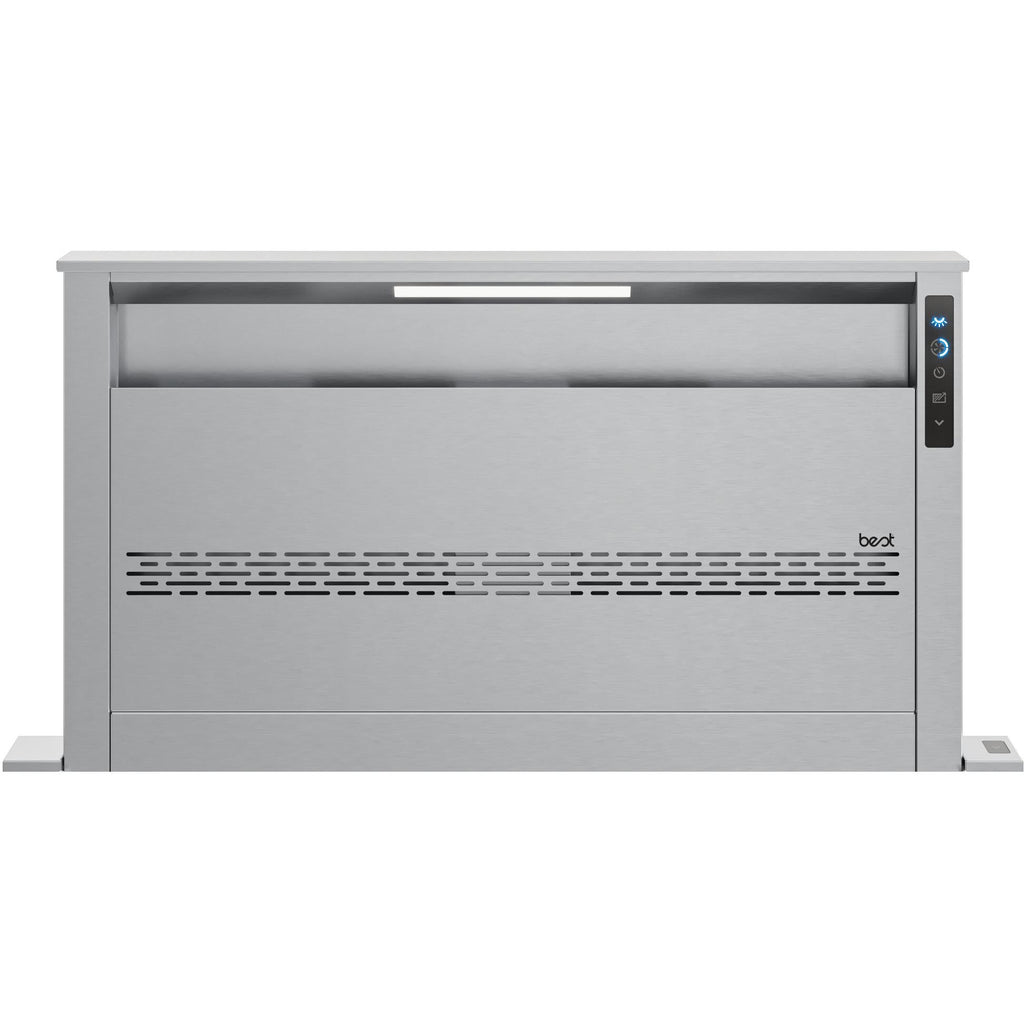

Features
VERTEX™
Complete capture design technology performs as well as an island hood.
LED LIGHT BAR
Evenly illuminates the entire cooking surface.

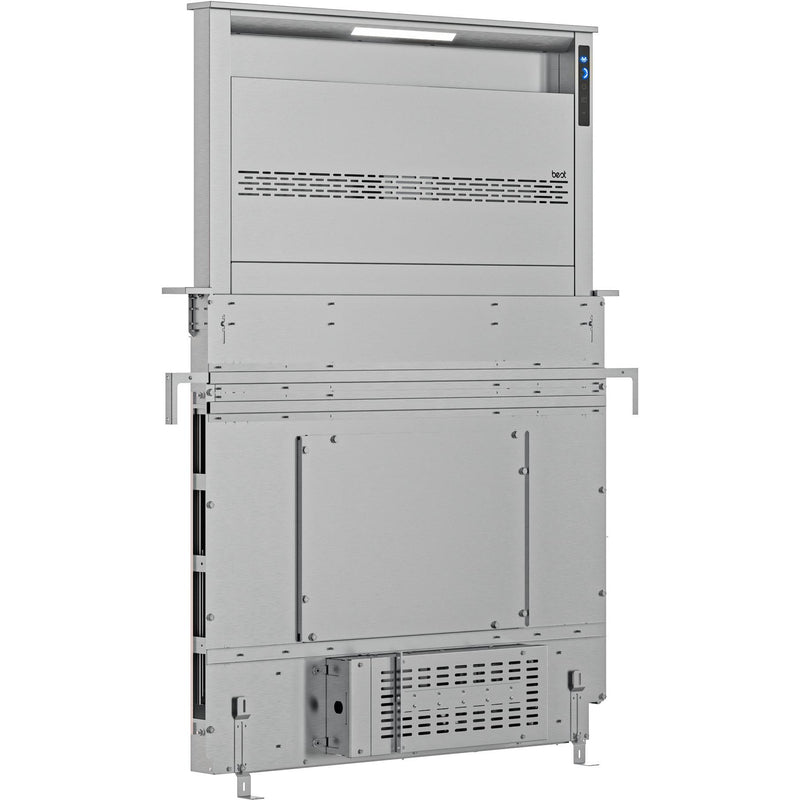

TOUCH OF A BUTTON 18"
A touch of a button raises or lowers the 18" downdraft.

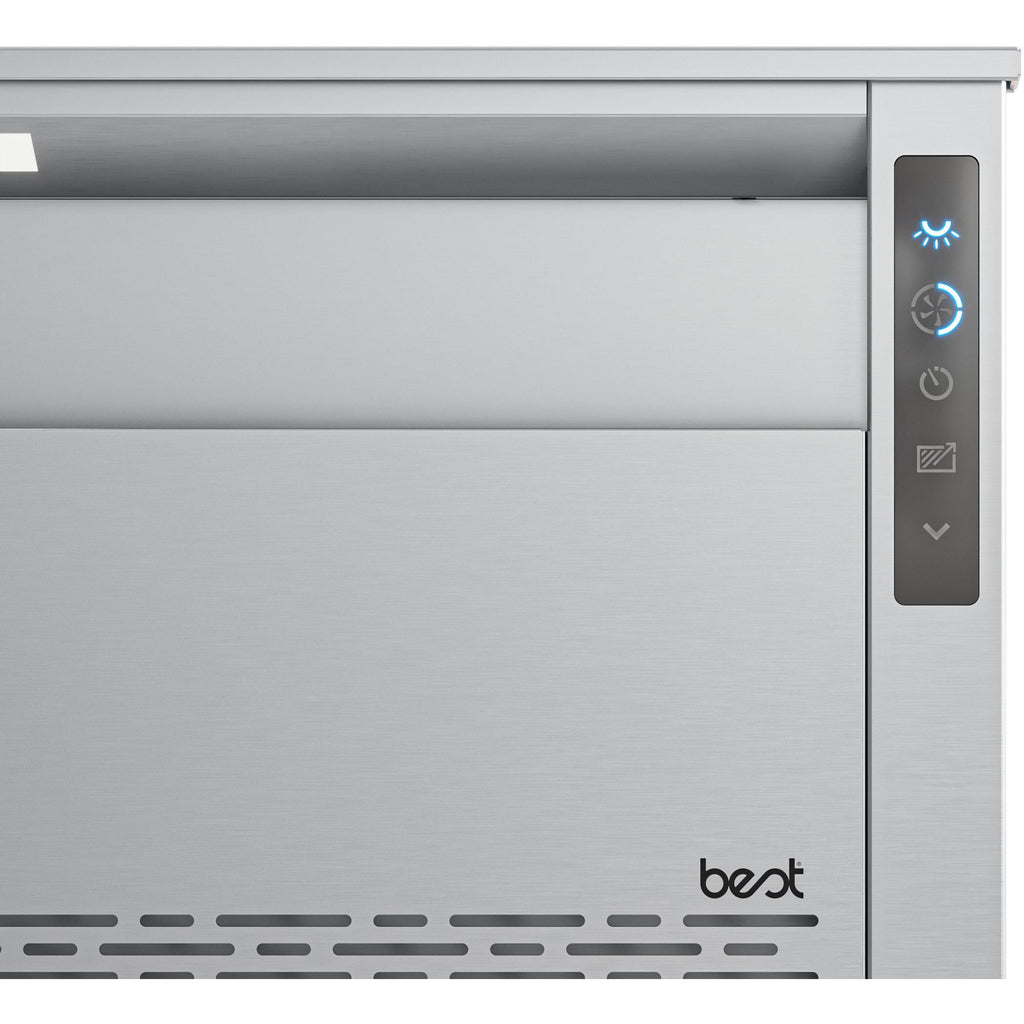

EASY TO CLEAN CONTROL PANEL
Sleek, easy-to-clean touch-control panel.
OPTIONAL REMOTE CONTROL
An optional remote control button raises or lowers the downdraft as needed.
Specifications
General
Series Name
Cattura
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Features
Ducting Information
Rectangular or Round
Speeds
4
Additional Information

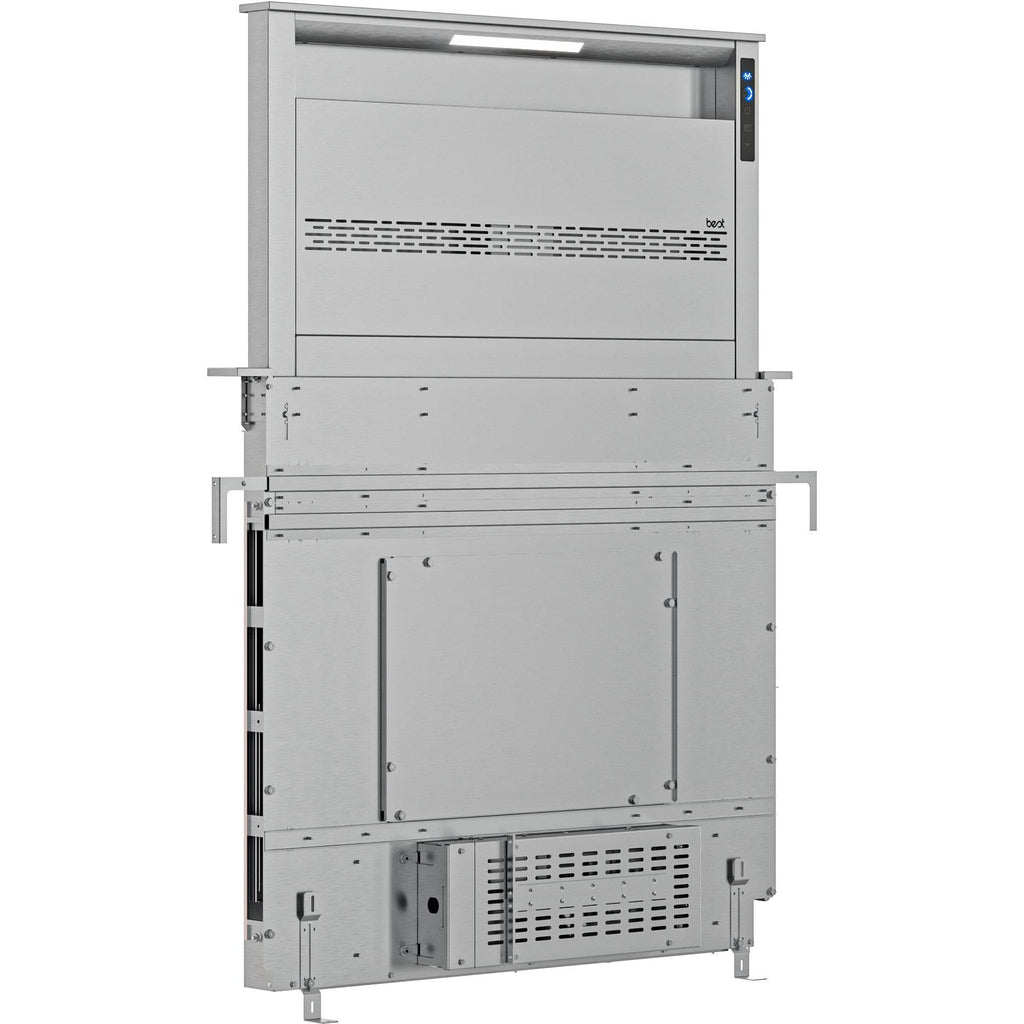

• At the touch of a button the Cattura downdraft quickly rises to a height of 18" to handle serious cooking ventilation requirements and tall pots - even on the front burners
• VERTEX™ Complete Capture Design technology
• Up to 35% quieter operation than any other downdraft
• Long-lasting two-level LED task lighting provides impressive cooktop illumination, even on the front burners
• Easy to clean four-speed glass touch controls with a convenient 10-minute time-delay shut-off feature and filter maintenance reminder light
• Heat Sentry™
• Optional remote control raises or lowers downdraft from another location
• Works with optional Automatic Make-Up Air Dampers
• Non-ducted capability
• Mesh grease filter
• VERTEX™ Complete Capture Design technology
• Up to 35% quieter operation than any other downdraft
• Long-lasting two-level LED task lighting provides impressive cooktop illumination, even on the front burners
• Easy to clean four-speed glass touch controls with a convenient 10-minute time-delay shut-off feature and filter maintenance reminder light
• Heat Sentry™
• Optional remote control raises or lowers downdraft from another location
• Works with optional Automatic Make-Up Air Dampers
• Non-ducted capability
• Mesh grease filter
Electrical Information
Information
120 V
Accessories
Optional
• Internal Blower : PF6 FlexBlower (CFM 600) Sones 8.8
• External In-Line : ILB3 (CFM 280), ILB6 (CFM 600), ILB9 (CFM 800), ILB11 (CFM 1100)
• External Exterior : EB6 (CFM 600), EB9 (CFM 900), EB12 (CFM 1200), EB15 (CFM 1500)
• External In-Line : ILB3 (CFM 280), ILB6 (CFM 600), ILB9 (CFM 800), ILB11 (CFM 1100)
• External Exterior : EB6 (CFM 600), EB9 (CFM 900), EB12 (CFM 1200), EB15 (CFM 1500)
Dimensions
Class Width
48"
Width
48 inch(es) / 121.92 cm
Height
18 inch(es) / 45.72 cm
Depth
2.25 inch(es) / 5.72 cm
Warranty
Warranty
Limited 1-Year Parts and Labor
UPC
UPC#
26715234226
