Features
GLIDE OUT BROILER SYSTEM
Glide Out Broiler System™ with Full Broil mode to provide complete coverage using eight full passes and Half Broil mode using four right-hand passes
CONVECTION OVEN
Programmable and very quick, the fan oven also keeps an even temperature, making it perfect for cooking several dishes at once.
BROILING OVEN
This oven may look unassuming, but it features a powerful 8-pass, 2300 watt broiler that's heated and ready to cook in just 5 minutes! The Full Broil mode provides complete coverage using the full eight passes. The Half Broil mode uses the four right-hand passes and is perfect when cooking for one.
EASYCLEAN TECHONOLOGY
EasyClean™ Technology with black enamel interior
INDUCTION COOKTOP
Induction cooktop makes use of 90% of the available heat compared to just 55% with that of a gas burner
Specifications
General
Series Name
Mercury
Fuel Type
Electric - Induction
Installation Type
Freestanding
Color
Black
Manufacturer Color
Matte Black
Cooktop
Burners/Elements
5
Burners/Elements Output
• Power of Front Left Zone: 1,400 W with 2,200 W Boost
• Power of Back Left Zone: 1,850 W with 3,000 W Boost
• Power of Center Zone: 2,300 W with 3,700 W Boost
• Power of Front Right Zone: 1,850 W with 3,000 W Boost
• Power of Back Right Zone: 1,850 W with 3,000 W Boost
• Power of Back Left Zone: 1,850 W with 3,000 W Boost
• Power of Center Zone: 2,300 W with 3,700 W Boost
• Power of Front Right Zone: 1,850 W with 3,000 W Boost
• Power of Back Right Zone: 1,850 W with 3,000 W Boost
Burner/Element Size
• Front Left Zone: 6"
• Back Left Zone: 7"
• Center Zone: 10"
• Front Right Zone: 7"
• Back Right Zone: 7"
• Back Left Zone: 7"
• Center Zone: 10"
• Front Right Zone: 7"
• Back Right Zone: 7"
Elements
Smoothtop
Oven
Capacity (cu. ft.)
• Total Capacity: 6 cu. ft.
• Main Cavity (Right Side): 2.8 cu. ft.
• Second Cavity (Left Side): 2.8 cu. ft.
• Third Cavity (Broiler): 0.5 cu. ft.
• Main Cavity (Right Side): 2.8 cu. ft.
• Second Cavity (Left Side): 2.8 cu. ft.
• Third Cavity (Broiler): 0.5 cu. ft.
Number of Ovens
Triple
Programs
• Left Oven:
• Defrost
• Convection
• Convection Broiling
• Fan Assist Bake
• Conventional
• Browning
• Base Heat
• Right Oven:
• True European Convection
• Defrost
• Convection
• Convection Broiling
• Fan Assist Bake
• Conventional
• Browning
• Base Heat
• Right Oven:
• True European Convection
Features
Technologies
• EasyClean™ Enamel
• True European Convection Technology
• Glide Out Broiler System™ with Full Broil and Half Broil Mode

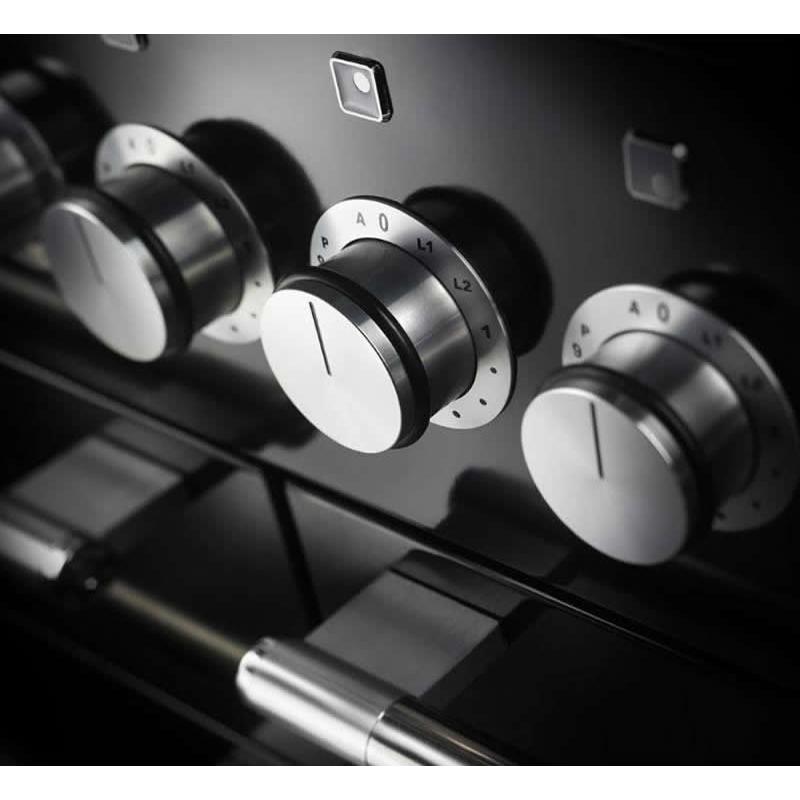

• 9 Eye-Catching Hi-Fi Style Controls
• True European Convection Technology
• Glide Out Broiler System™ with Full Broil and Half Broil Mode
• 9 Eye-Catching Hi-Fi Style Controls
Control Lock
Yes
Convection
Yes
Additional Information
• Main Cavity – Right Side: 2,500 W
• Second Cavity – Left Side: 2,500 W
• Third Cavity - Broiler: 2,300 W
• Broiler Type 8 Pass Radiant Heat
• 7-Mode Multi-Function™ Oven (left oven)
• Each large oven has 5 rack positions; the range comes with 4 heavy duty steel racks and one telescoping steel rack
• Built-in Pan Recognition Sensors
• 9 Power Settings
• Overheat Detection
• Second Cavity – Left Side: 2,500 W
• Third Cavity - Broiler: 2,300 W
• Broiler Type 8 Pass Radiant Heat
• 7-Mode Multi-Function™ Oven (left oven)
• Each large oven has 5 rack positions; the range comes with 4 heavy duty steel racks and one telescoping steel rack
• Built-in Pan Recognition Sensors
• 9 Power Settings
• Overheat Detection
Drawer Features
Storage
Yes
Electrical Information
Information
• 240 V
• 60 Hz
• 50 A
• 60 Hz
• 50 A
Accessories
Included
• 1 Enameled Broiler Pan
• 1 Broiler Pan Insert
• 1 Storage Drawer Mat
• 1 Broiler Pan Insert
• 1 Storage Drawer Mat
Dimensions
Class Width
48"
Width
47.56 inch(es) / 120.8 cm
Height
36.12 inch(es) / 91.75 cm
Depth (Without Handles)
27.36 inch(es) / 69.5 cm
Depth (Including Handles)
28.46 inch(es) / 72.3 cm
Weight
356.99 lb(s) / 161.93 kg
Additional Dimensions
• Package Dimensions 49 1/4" W x 31" D x 46 1/2" H
• Depth with Door Open 46 1/8"
• Depth with Door Open 46 1/8"
Shipping Dimensions
Width
49.25 inch(es) / 125.1 cm
Height
46.5 inch(es) / 118.11 cm
Depth
31 inch(es) / 78.74 cm
Weight
390 lb(s) / 176.9 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
768388076047
