Features
GLIDE OUT BROILER SYSTEM
Glide Out Broiler System™ with Full Broil mode to provide complete coverage using eight full passes and Half Broil mode using four right-hand passes
CONVECTION OVEN
Programmable and very quick, the fan oven also keeps an even temperature, making it perfect for cooking several dishes at once.
BROILING OVEN
This oven may look unassuming, but it features a powerful 8-pass, 2300 watt broiler that's heated and ready to cook in just 5 minutes! The Full Broil mode provides complete coverage using the full eight passes. The Half Broil mode uses the four right-hand passes and is perfect when cooking for one.
7-MODE MULTIFUNCTION OVEN
Offers ultimate flexibility with 7 different cooking modes. Turn the convection off, leave it on or go somewhere in between-you tailor the oven's performance to your needs by selecting from the convection bake, convection broil, fan assist bake, conventional bake, top brown or base heat modes.
Specifications
General
Series Name
Mercury
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Freestanding
Color
Black
Manufacturer Color
Gloss Black
Appliance Care
EasyClean™ Technology with black enamel interior
Cooktop
Burners/Elements
5
Burners/Elements Output
• Front Left Burner (low/high): 12,000 BTU/2,400 BTU
• Back Left Burner (low/high): 12,000 BTU/2,400 BTU
• Center Burner (high/low): 17,000 BTU/3,400 BTU
• Front Right Burner (high/low): 6,000 BTU/1,200 BTU
• Back Right Burner (high/low): 12,000 BTU/2,400 BTU
• Back Left Burner (low/high): 12,000 BTU/2,400 BTU
• Center Burner (high/low): 17,000 BTU/3,400 BTU
• Front Right Burner (high/low): 6,000 BTU/1,200 BTU
• Back Right Burner (high/low): 12,000 BTU/2,400 BTU
Burners
Sealed
Oven
Capacity (cu. ft.)
• Total Capacity: 6 cu. ft.
• Main Oven: 2.8 cu. ft.
• Second Oven: 2.8 cu. ft.
• Small Oven: 0.5 cu.ft
• Main Oven: 2.8 cu. ft.
• Second Oven: 2.8 cu. ft.
• Small Oven: 0.5 cu.ft
Number of Ovens
Triple
Programs
• Defrost
• Convection
• Convection Broiling
• Fan Assist Bake
• Conventional
• Browning
• Base Heat
• Convection
• Convection Broiling
• Fan Assist Bake
• Conventional
• Browning
• Base Heat
Features
Technologies
• Glide Out Broiler System™
• EasyClean™ Technology
• 7-Mode Multi-Function™
• EasyClean™ Technology
• 7-Mode Multi-Function™
Convection
Yes
Downdraft Ventilation
No
Additional Information
• Main Cavity (Right side): 2,500W
• Second Cavity (Left side): 2,500W
• Third Cavity: Broiler, 2,300W
• Broiler Type: 8-pass Radiant Heat

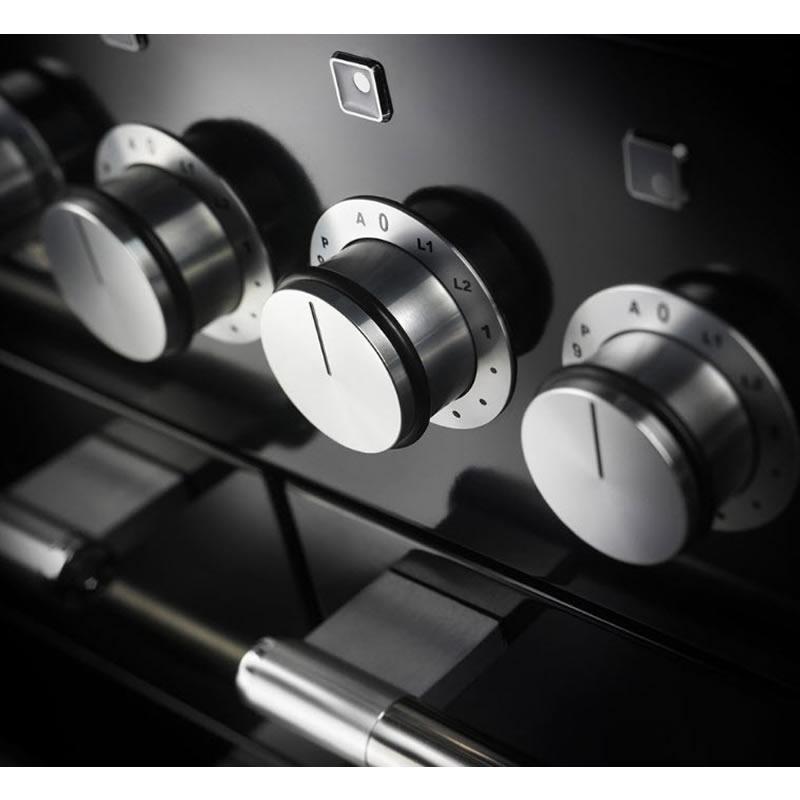

• Controls: Metal Hi-Fi Style with Nitrile Grip
• Each large oven has 5 rack positions
• 4 heavy duty steel racks and one telescoping steel rack for a total of 5 oven racks
• Powerful dual-element Broiler with an 8-pass, 2,300 watt broiler - ready to cook in just 5 minutes
• A second extra-large true European convection oven (right oven)
• 9 Eye-catching Hi-Fi Style Controls
• Four grates interlock above each side burner providing ample space for any pan
• Includes an 11" diameter wok ring made of semi-gloss black enamel coated cast iron
• Second Cavity (Left side): 2,500W
• Third Cavity: Broiler, 2,300W
• Broiler Type: 8-pass Radiant Heat
• Controls: Metal Hi-Fi Style with Nitrile Grip
• Each large oven has 5 rack positions
• 4 heavy duty steel racks and one telescoping steel rack for a total of 5 oven racks
• Powerful dual-element Broiler with an 8-pass, 2,300 watt broiler - ready to cook in just 5 minutes
• A second extra-large true European convection oven (right oven)
• 9 Eye-catching Hi-Fi Style Controls
• Four grates interlock above each side burner providing ample space for any pan
• Includes an 11" diameter wok ring made of semi-gloss black enamel coated cast iron
Drawer Features
Storage
Yes
Electrical Information
Information
• 240 V
• 60 Hz
• 40 A
• 60 Hz
• 40 A
Accessories
Included
• 1 enameled broiler pan
• 1 broiler pan insert
• 1 cast iron wok ring
• 1 LP conversion kit
• 1 storage drawer mat
• 1 broiler pan insert
• 1 cast iron wok ring
• 1 LP conversion kit
• 1 storage drawer mat
Dimensions
Class Width
48"
Width
48 inch(es) / 121.92 cm
Height
36.12 inch(es) / 91.75 cm
Depth (Without Handles)
28.44 inch(es) / 72.23 cm
Weight
356.99 lb(s) / 161.93 kg
Additional Dimensions
Depth with Door Open: 46-1/8"
Shipping Dimensions
Width
49.25 inch(es) / 125.1 cm
Height
46.5 inch(es) / 118.11 cm
Depth
31 inch(es) / 78.74 cm
Weight
390 lb(s) / 176.9 kg
Warranty
Warranty
Limited 1 year parts and labor
UPC
UPC#
768388075972
